118 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 5 Frame 6 Renewal Kits Installation

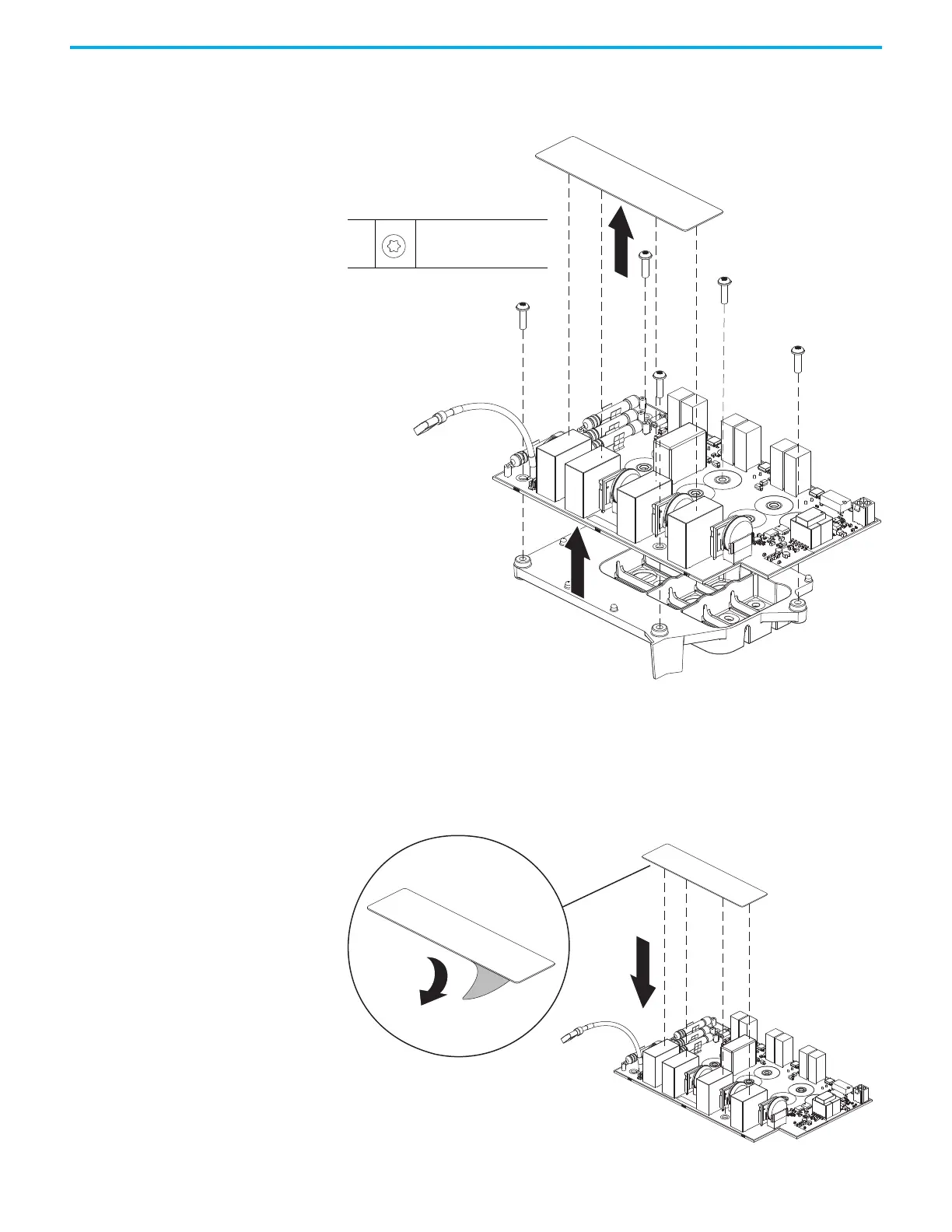

19. Remove the circuit board stiffener from the capacitors on the board.
20. Remove the five M4 x 12 mm Torx screws that secure the board to the
plastic support. Retain the plastic support for reuse.
Install the AC Precharge Circuit Board (400/480V)
Install the AC precharge circuit board.
1. Peel the protective sheet off the back of the circuit board stiffener and
apply the stiffener to the capacitor components as shown.
20
M4 x 12 mm
T20
2.6 N•m (23.0 lb•in)
19
