84 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 5 Frame 6 Renewal Kits Installation
Remove the Protective
Guard (IP54, NEMA/UL Type
12 Enclosure)
Remove the protective guard from an IP54, NEMA/UL Type 12 enclosure to
access the power terminals, stirring fan, and power interface circuit board.
Remove the Protective Guard (IP54, NEMA/UL Type 12 Enclosure)
Follow these steps to remove the protective guard from an IP54, NEMA/UL
Type 12 enclosure.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.

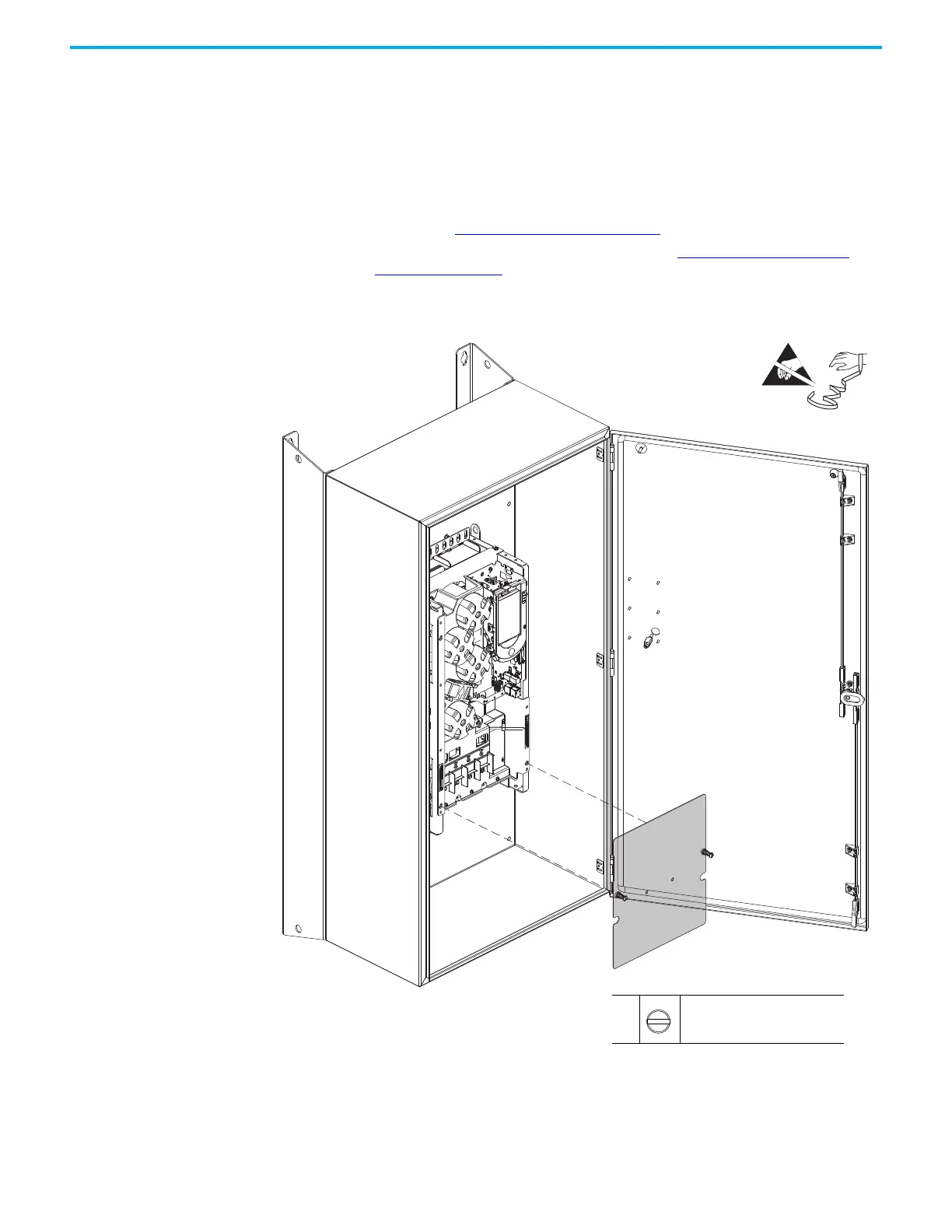

3. Loosen the captive screws that secure the protective guard to the drive
chassis and remove the guard.
Install the Protective Guard (IP54, NEMA/UL Type 12 Enclosure)
Install the protective guard in the reverse order of removal.
3
M4 x 8 mm
F - 6.4 mm (0.25 in.)
2.6 N
•m (23 lb•in)
