56 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 4 Frames 1…5 Renewal Kits Installation

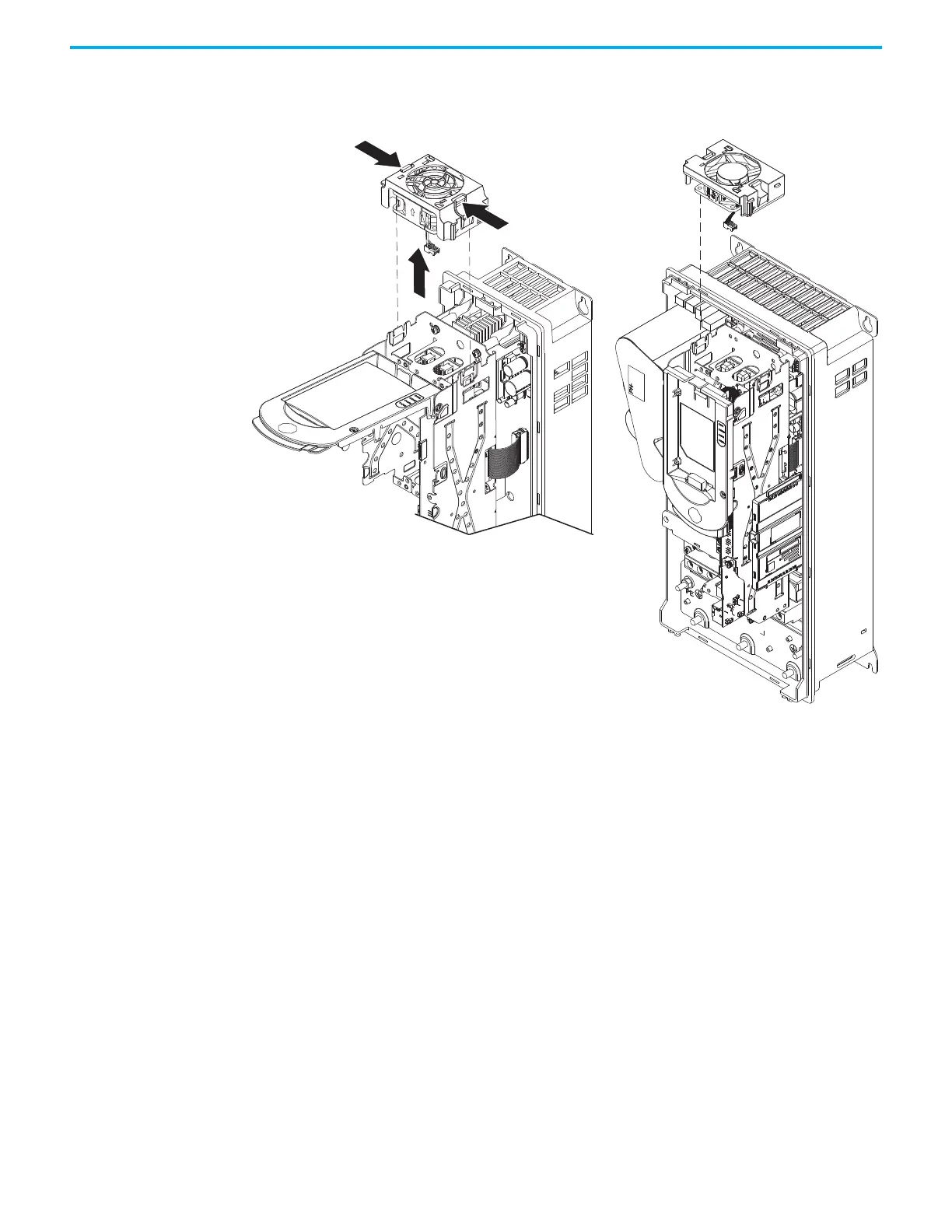

9. Press in on the two tabs on either side of the fan and remove the fan from
the chassis.
Install the Control Pod Printed Circuit Board Fan, Frames 2…5
Install the control pod printed circuit board fan in the reverse order of
removal.
