Rockwell Automation Publication 750-TG101A-EN-P - June 2022 99
Chapter 5 Frame 6 Renewal Kits Installation
Upper Stirring Fan
Replacement
Replacement kit catalog numbers: SK-RT-STIRFANR1-F6,
SK-RT-STIRFANR1-F6-XT.
These kits can be used for all enclosure types.
Remove the Upper Stirring Fan
Follow these steps to remove the upper stirring fan.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Access the drive interior:
• For IP00, NEMA/UL Open Type, IP21, NEMA/UL Type 1, and flange,
NEMA/UL Type 4X/12 back enclosures, remove the drive cover. See
Remove the Cover
on page 83.
• For IP54, NEMA/UL Type 12 enclosures, open the enclosure door and
remove the protective guard.

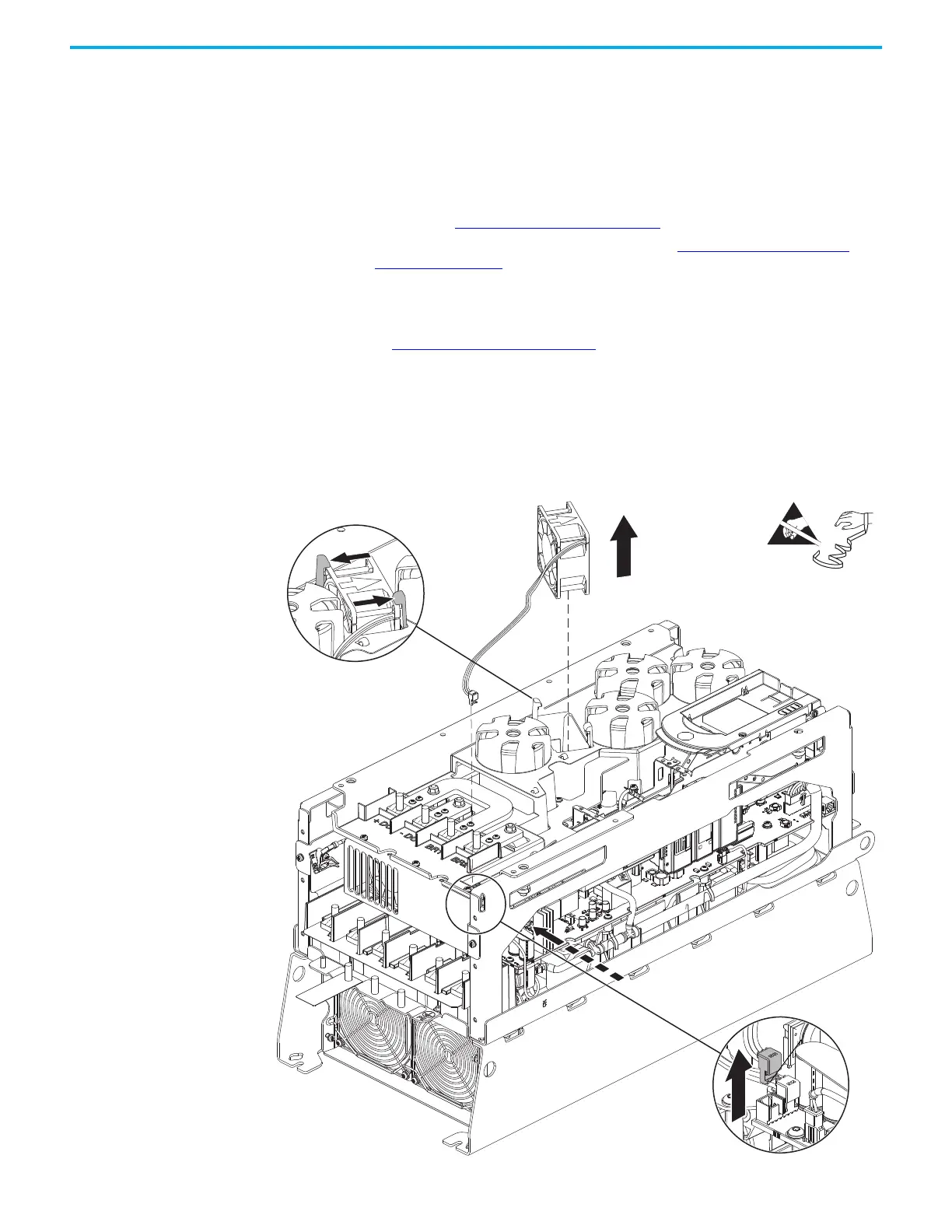

4. Reach through the right lower-side of the chassis and disconnect the fan
power wire-harness connector P6 from J6 on the power interface circuit
board.
5. Pull the two plastic tabs away from the fan assembly and lift the fan out
of the chassis.
