Rockwell Automation Publication 750-TG101A-EN-P - June 2022 151

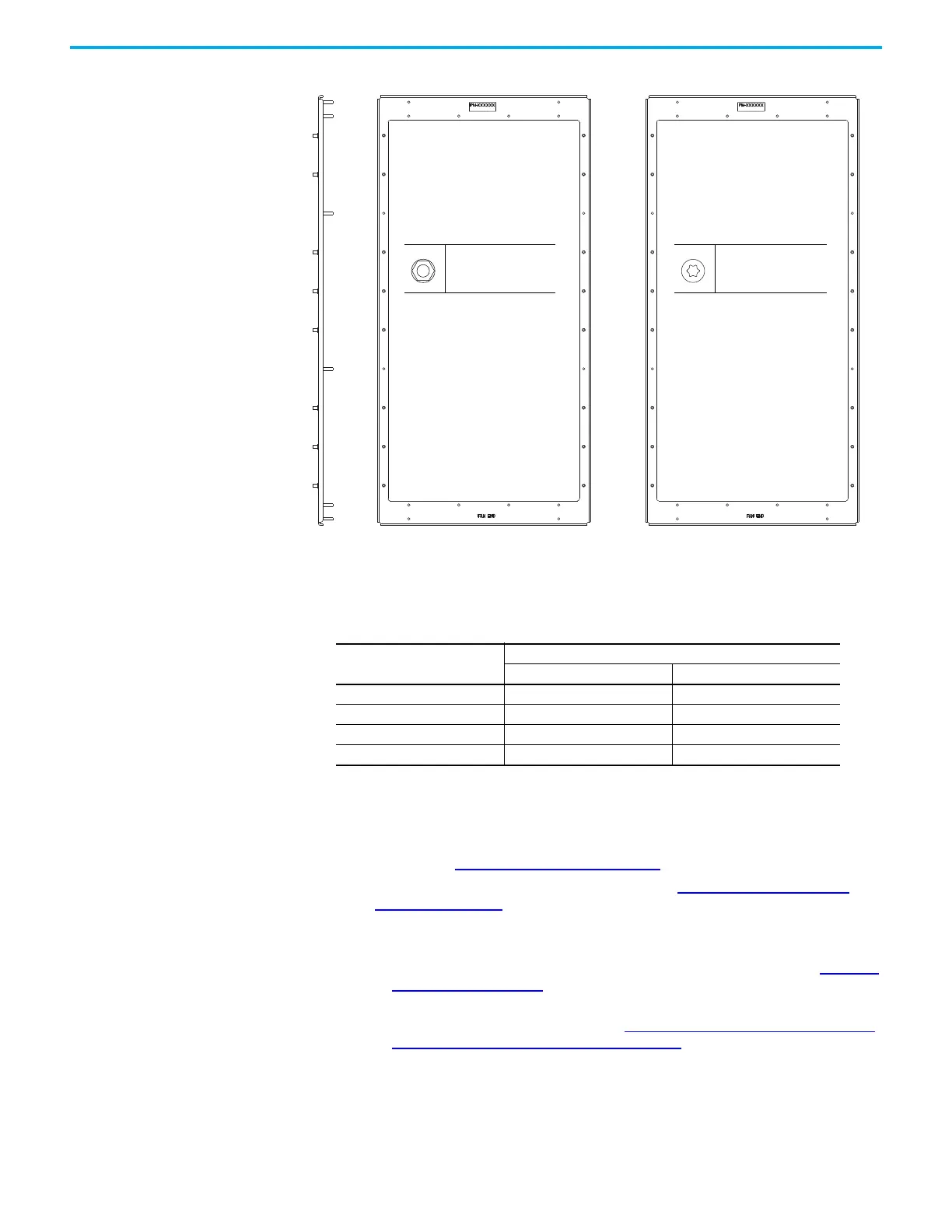

Chapter 6 Frame 7 Renewal Kits Installation
Power Interface Circuit
Board Replacement
Replacement kit catalog numbers are based on the drive normal duty power
rating:
Remove the Power Interface Circuit Board
Follow these steps to remove the power interface circuit board.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Access the drive interior:
• For IP00, NEMA/UL Open Type, IP21, NEMA/UL Type 1 and flange,
NEMA/UL Type 4X/12 back enclosures, remove the cover. See Remove
the Cover on page 128.
• For IP54, NEMA/UL Type 12 enclosures, open the enclosure and
remove the protective guard. See Remove the Protective Guard (IP54,
NEMA/UL Type 12 Enclosure) on page 129.
34
5786
12
9111210
14
13
15
16
1
2
3
4
5
6
7
8
9
14
15
16
10
11
12
13
M5 x 25 mm
T25
4.5 N
•m (40.0 lb•in)
M5 x 0.8
8 mm
4.5 N
•m (40.0 lb•in)
1
2
Drive Rating
Power Interface Circuit Board Catalog Number
Standard XT
302 A 400V / 302 A 480V SK-RT-PIB1-C302D302 SK-RT-PIB1-C302D302-XT
367 A 400V / 361 A 480V SK-RT-PIB1-C367D361 SK-RT-PIB1-C367D361-XT
456 A 400V / 415 A 480V SK-RT-PIB1-C456D415 SK-RT-PIB1-C456D415-XT
477 A 400V / 477 A 480V SK-RT-PIB1-C477D477 SK-RT-PIB1-C477D477-XT
To Next Page
