Chapter 4 Frames 1…5 Renewal Kits Installation

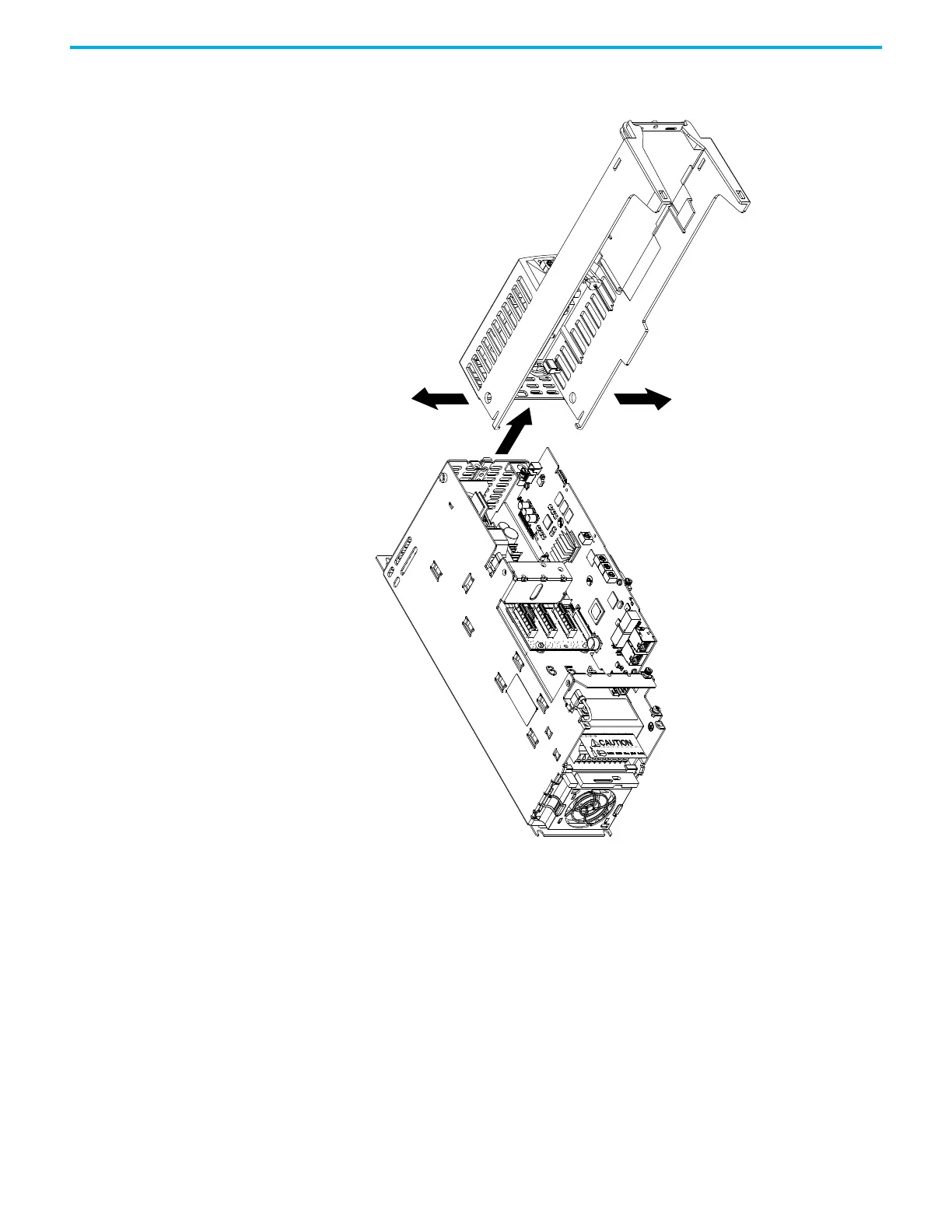

10. At the top of the plastic chassis, pull outward on the tabs and lift the
chassis off the drive.
Install the Chassis, Frame 1
Follow these steps to install the chassis.
1. At the top of the new chassis, pull outward on the tabs and snap the
chassis into place on the drive.
