Rockwell Automation Publication 750-TG101A-EN-P - June 2022 105
Chapter 5 Frame 6 Renewal Kits Installation

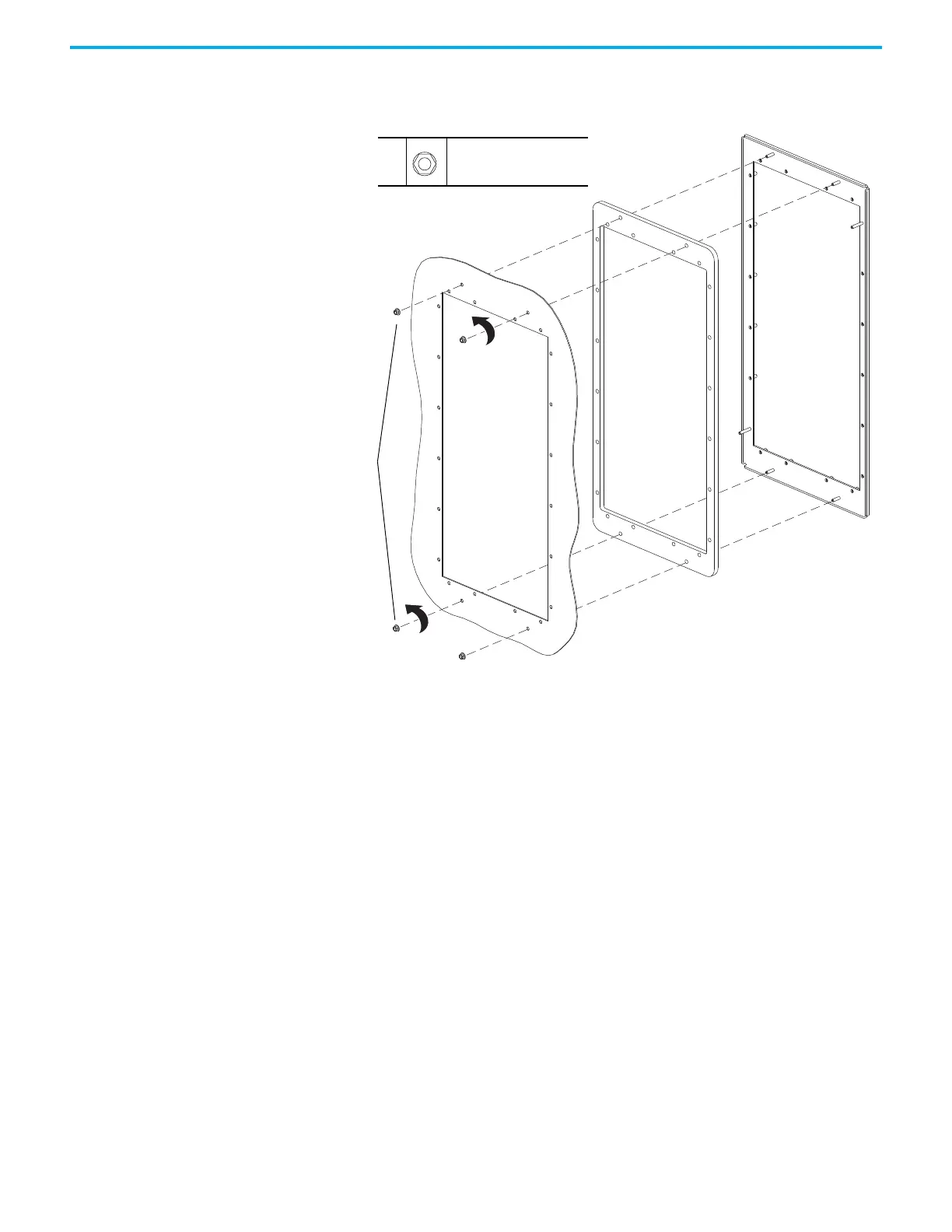

14. Remove the four M5 x 0.8 hexagonal nuts that secure the rear gasket and
flange to the panel mount surface, and remove the gasket and flange.
Discard the gasket.
Install the Flange Gasket
Install the flange and gaskets in the reverse order of removal.
14
14
M5 x 0.8
8 mm
4.5 N
•m (40.0 lb•in)
To Next Page
