60 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 4 Frames 1…5 Renewal Kits Installation
5. For IP54, NEMA/UL Type 12 enclosures only, complete steps a and c:
a. Remove the two M4 x 10 mm slotted-Torx screws that secure the touch
shield to the drive chassis and remove the touch shield from the drive.
b. Disconnect the fan power-wire harness connector from the connector
on the chassis and remove the fan.
c. Remove the M4 x 35 mm two slotted-Torx screws that secure the fan
assembly to the bracket and remove the fan assembly.

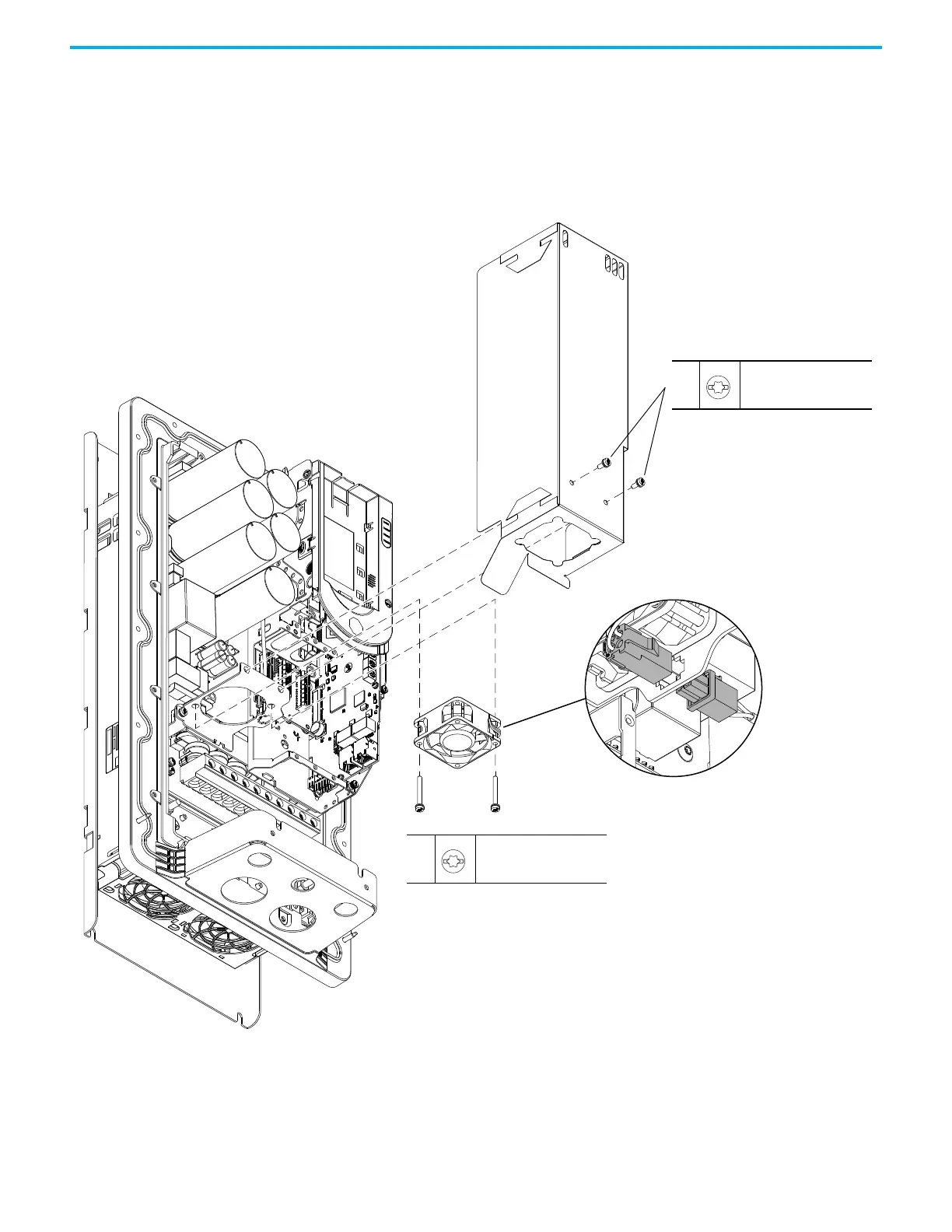

Install the Stirring Fan, Frames 4 and 5
Install the stirring fan in the reverse order of removal.
Frame 4 Shown
5a
M4 x 10 mm
T20 or F - 6.4 mm (0.25 in.)
1.8 N•m (16.0 lb•in)
5c
M4 x 35 mm
T20 or F - 6.4 mm (0.25 in.)
1.8 N•m (16.0 lb•in)
5b
To Next Page
