152 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 6 Frame 7 Renewal Kits Installation
4. To prepare the control pod for removal from the drive, complete these
steps:
a. If used, disconnect the HIM DPI cable from the connector (port 2) on
the HIM cradle.
b. Disconnect any cables from the Ethernet connectors on the bottom of
the main control board in the control pod.
c. If used, disconnect the plug-in terminal block (TB1) on the bottom of
the main control board.
d. If an option module is installed, disconnect any I/O wiring terminal
blocks and remove the option module (not shown in this image).
If a cable is not connected to the DPI port on the HIM cradle, be sure to leave the
protective cover installed.

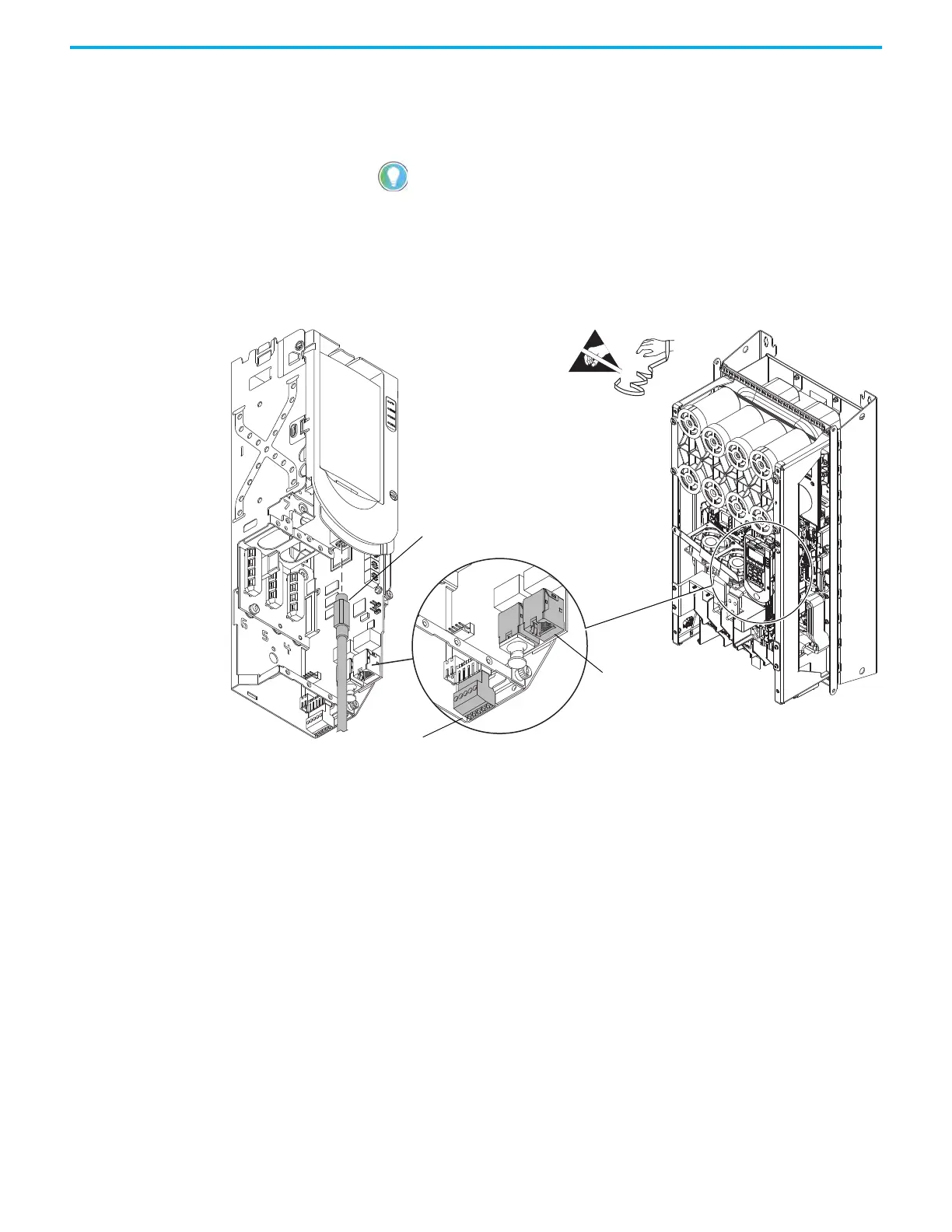

Control Pod Shown Separated from the Drive for Clarity Only.
4b
4a
4c
To Next Page
