62 Rockwell Automation Publication 750-TG101A-EN-P - June 2022

Chapter 4 Frames 1…5 Renewal Kits Installation

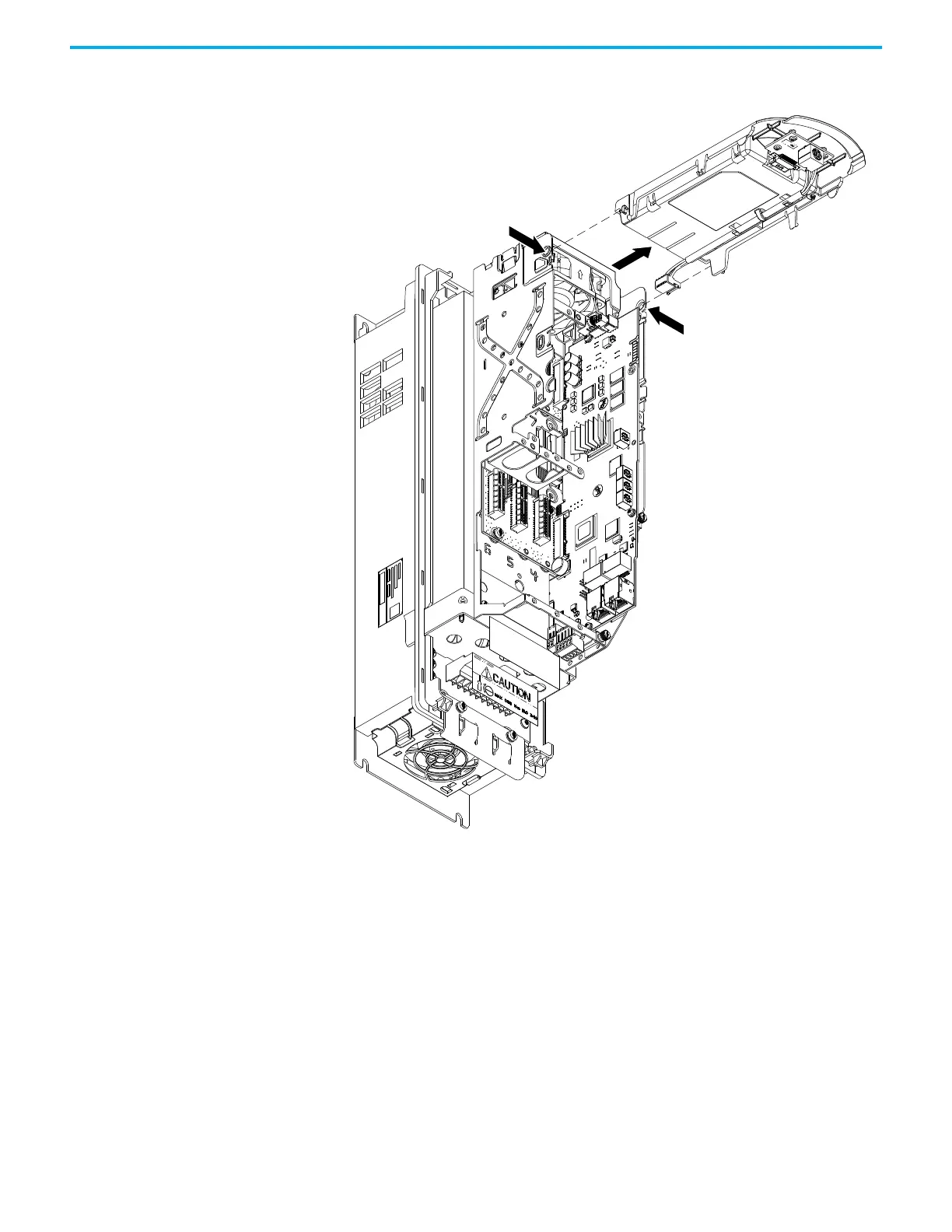

8. Press in on the tabs at the top of the HIM cradle where it connects to the

control pod chassis and release the cradle from the chassis.
