Chapter 1 Before You Begin Tests, Maintenance, or Repairs

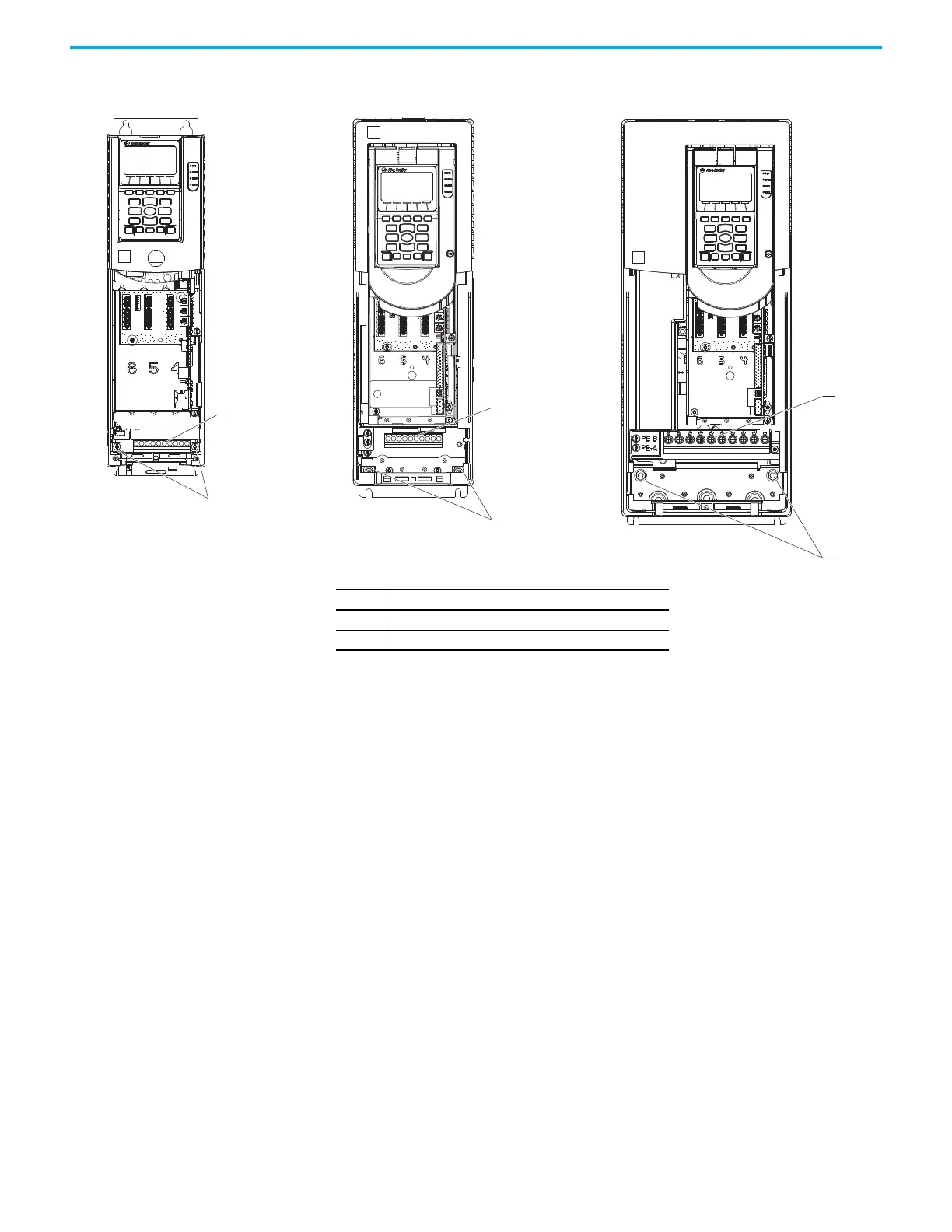

Figure 1 - Frames 1…3 Power Terminal Block and PE Ground Locations
Frame 1 Frame 2
Frame 3
2
1
2
1
2
1
Item Name
1 R/L1, S/L2, T/L3, BR1, BR2, +DC, –DC, U/T1, V/T2, W/T3
2PE Ground
