Chapter 4 Frames 1…5 Renewal Kits Installation
5. If used, disconnect the DPI™ cable from the connector on the bottom of
the HIM cradle.

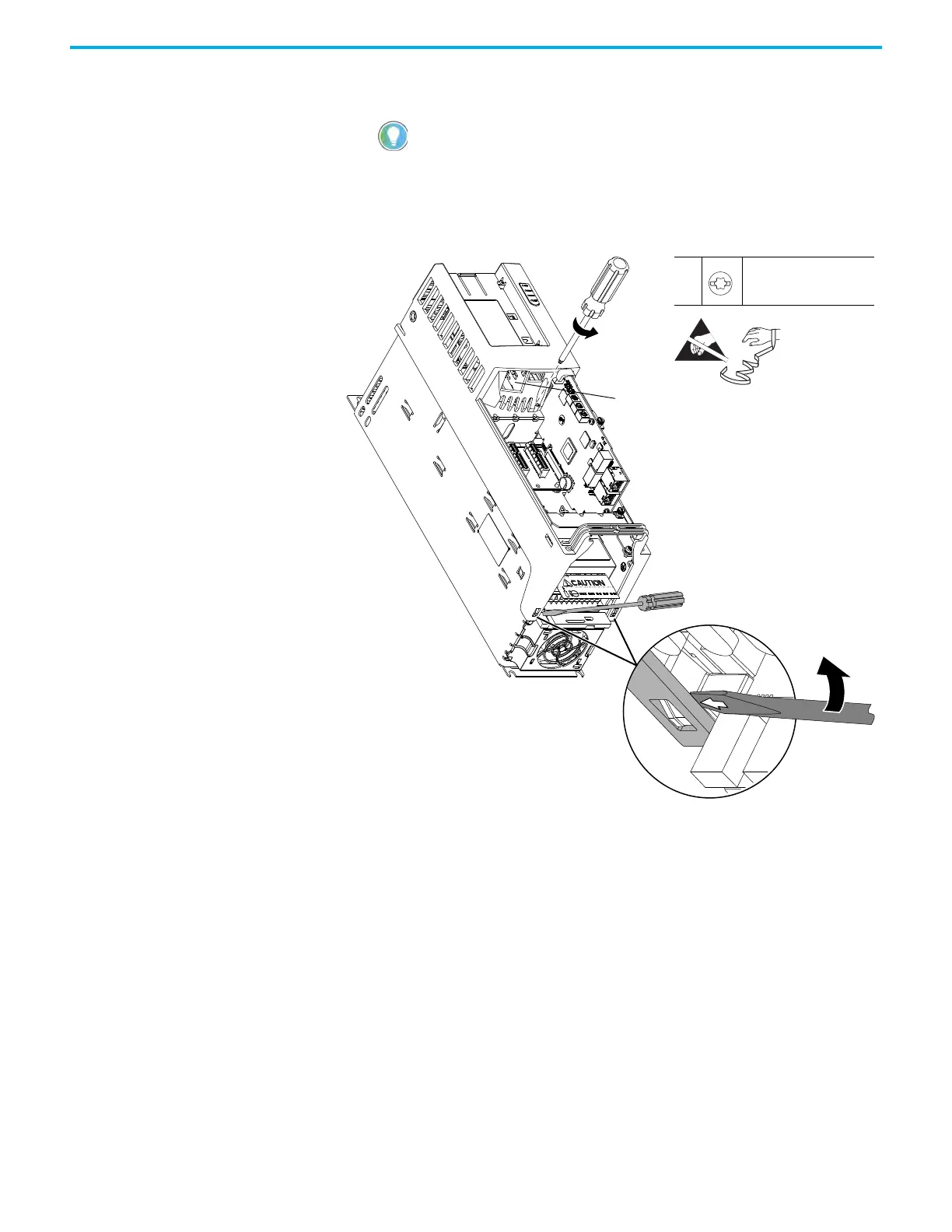

6. Loosen the captive M3 Torx screw that secures the plastic chassis to the
metal bracket.
7. Use a screwdriver to lift the two slotted-tabs on the bottom of the chassis
off the brackets.
If a cable is not connected to the DPI port on the HIM cradle, be sure to leave the
protective cover installed.
=
5
6
M4 x 16 mm
T20 or F - 6.4 mm (0.25 in.)
0.23 N•m (2.0 lb•in)
