Rockwell Automation Allen-Bradley PowerFlex 755TS Series User Manual

Rockwell Automation Publication 750-TG101A-EN-P - June 2022 47
Chapter 4 Frames 1…5 Renewal Kits Installation
4. Remove the power terminal cover. See Remove the Power Terminal
Cover, Frames 1…5 on page 35.
5. For frames 4 and 5 drives only, complete steps a…c:
a. Pull the tab away from the fan assembly and pull the fan assembly
partially out of the chassis.
b. Disconnect the power wire-harness connector from the stirring fan
connector and remove the stirring fan assembly from the chassis.
Retain the fan assembly for reuse.
c. Push the power wire harness through the hole in the chassis.

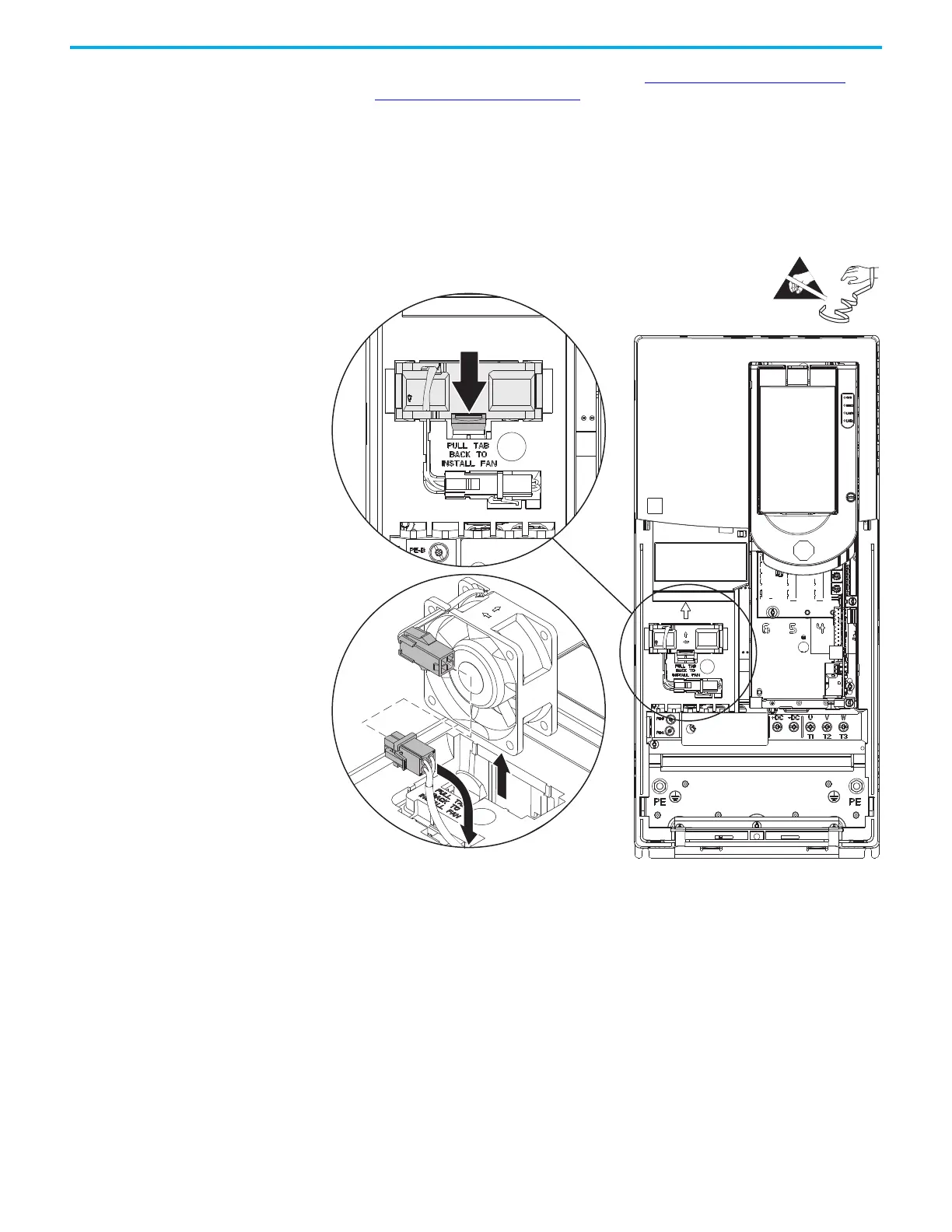

Frame 4 Shown
5a
5b
5c
5a
=
