Chapter 4 Frames 1…5 Renewal Kits Installation
8. Disconnect the power wiring from the power terminals.
9. Remove the #10-16 x 1 in. hexagonal-head screws that secure the flange to
the mounting surface and remove the drive and gasket. Discard the
gasket.

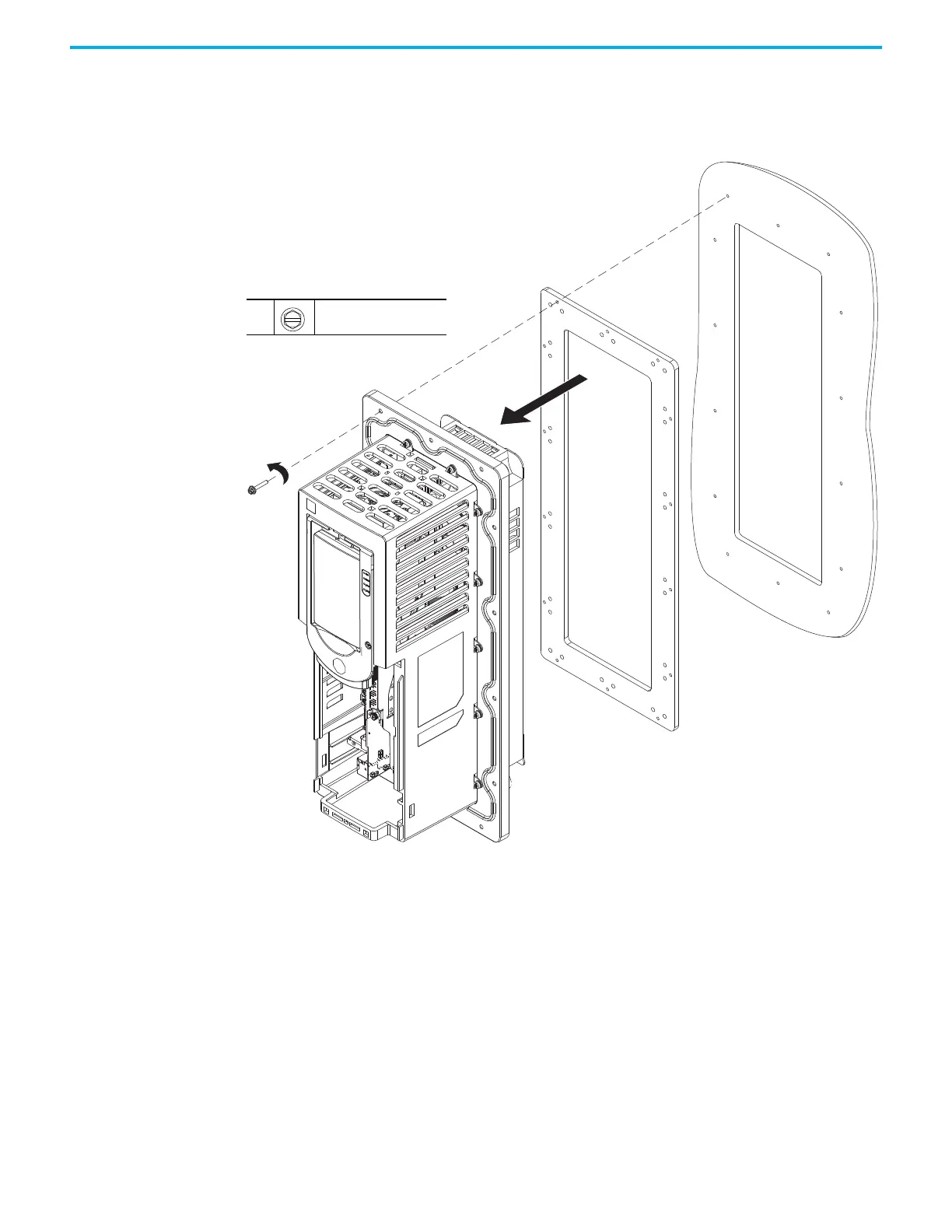

Frame 2 Drive Shown
9
#10-16 x 1 in.
5/16 in.
