Chapter 4 Frames 1…5 Renewal Kits Installation

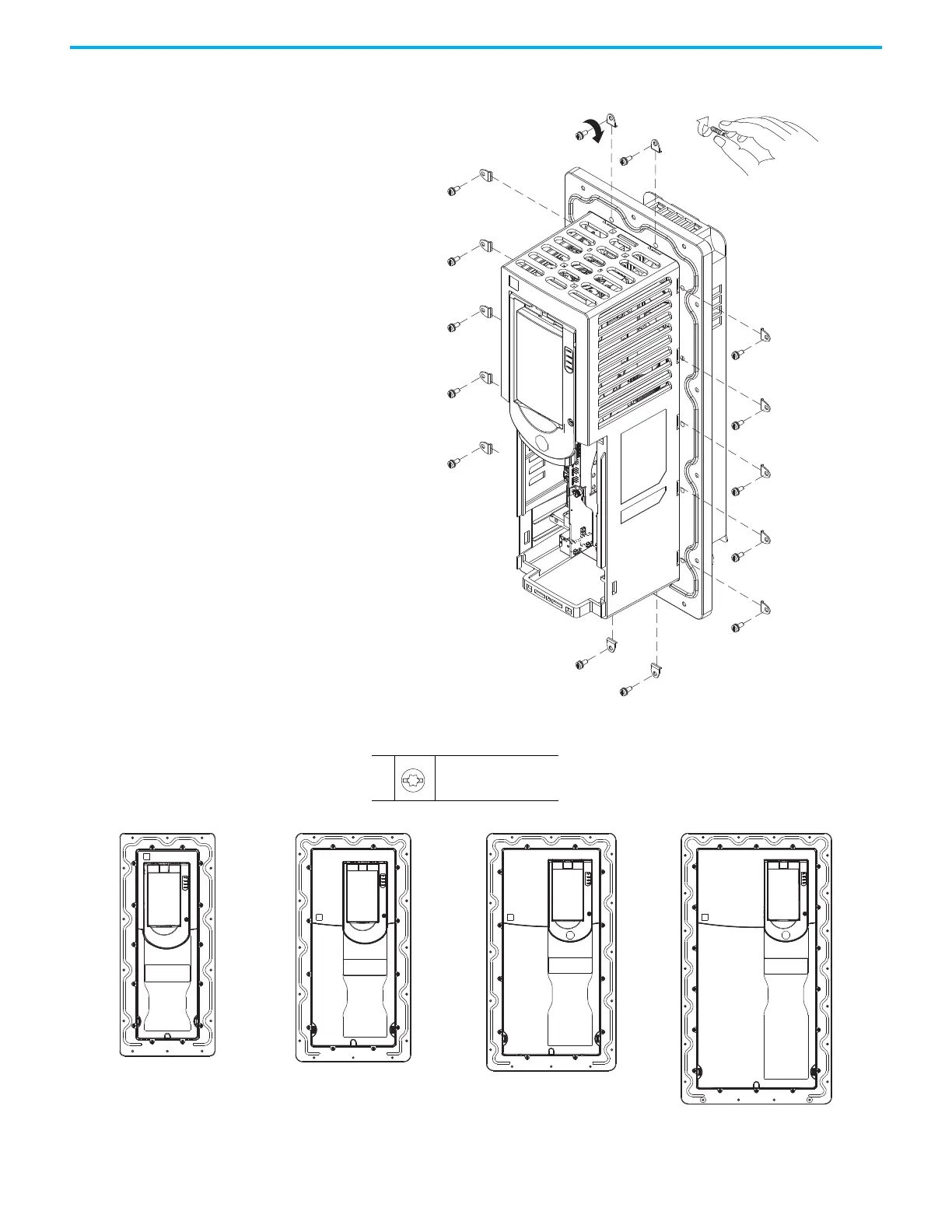

2. Install the screws and clamps to secure the drive chassis to the flange.
Finger-tighten the clamps and screws only.
3. To secure the drive to the flange, apply final torque by using the sequence
that is shown.
1
5
14
7
11 12
8
13
6
4
910
3
2
5
7
3
1
8
6
2
4
910
11 12
5
9
7
3
1
13 15
11
14
8
12
6
2
4
10
16 18 17
5
7
3
1
8
6
2
910
4
11 12
3
M4 x 10 mm
T20 or F - 6.4 mm (0.25 in.)
1.8 N
•m (16.0 lb•in)
Frame 2 Frame 3 Frame 4
Frame 5
