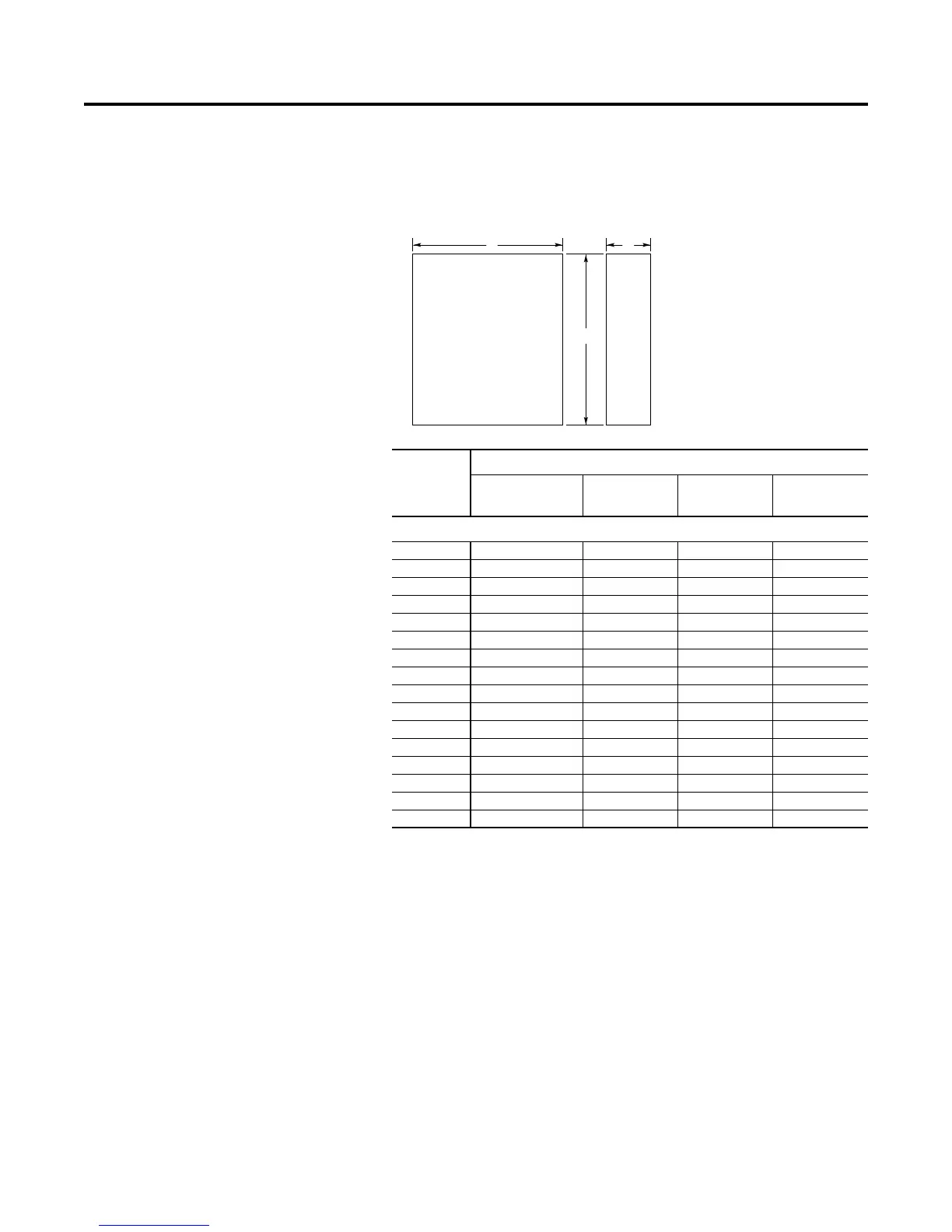

Rockwell Automation SMC-Flex User Manual

Specifications A-7
Enclosed Type Line-Connected Controllers
Factory-installed options may affect enclosure size requirements.
Exact dimensions can be obtained after order entry. Consult your
local Rockwell Automation sales office or Allen-Bradley distributor.
➀ 970…1250 rated devices are only available as Type 1and require a door-mounted fan, capable of
delivering 240 cfm.
➁ Enclosed 970…1250 rated devices are only avaiable through the modified standards program.
Consult your local Rockwell Automation sales office or Allen-Bradley distributor.
Controller
Rating (A)
IP65 (Type 4/12)
Disconnect Rating
(A)
B Height A Width C Depth
Non-Combination Controller
5 — 610 (24) 406 (16) 254 (10)
25 — 610 (24) 406 (16) 254 (10)
43 — 610 (24) 406 (16) 254 (10)
60 — 610 (24) 406 (16) 254 (10)
85 — 610 (24) 406 (16) 254 (10)
108 — 762 (30) 610 (24) 305 (12)
135 — 762 (30) 610 (24) 305 (12)
201 — 965 (38) 762 (30) 356 (14)
251 — 965 (38) 762 (30) 356 (14)
317 — 1295 (51) 914 (36) 356 (14)
361 — 1295 (51) 914 (36) 356 (14)
480 — 1295 (51) 914 (36) 356 (14)
625 — 2286 (90) 762 (30) 508 (20)
780 — 2286 (90) 762 (30) 508 (20)
970
➀➁ — 2286 (90) 762 (30) 508 (20)
1250
➀➁ — 2286 (90) 762 (30) 508 (20)
AC
B
