1-10 Product Overview
Accu-Stop™ Option
This option combines the benefits of the SMB Smart Motor Braking
and Preset Slow Speed options. For general purpose positioning, the
Accu-Stop option provides a brake from full speed to the preset slow
speed setting, then brakes to stop.

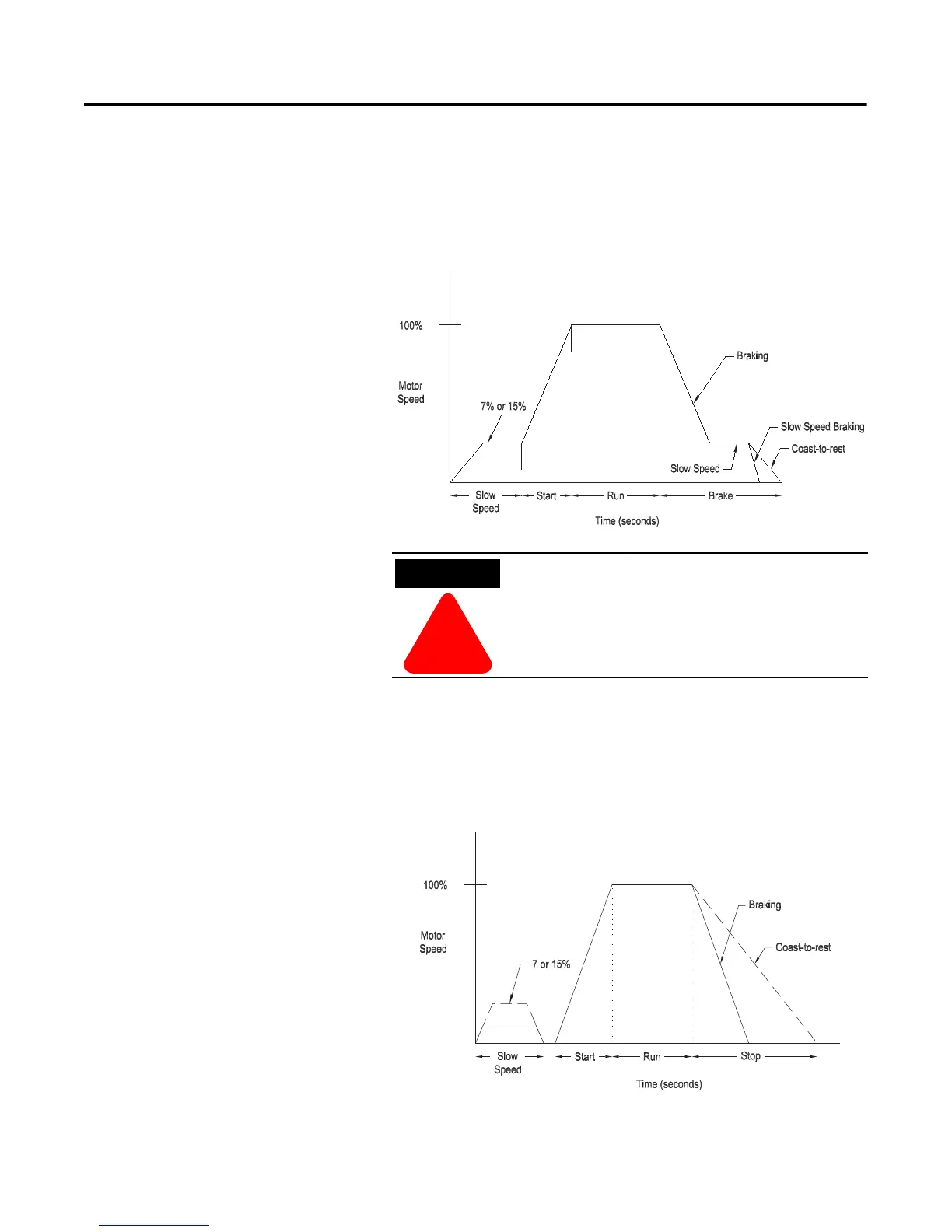

Figure 1.11 Accu-Stop Option
Slow Speed with Braking Option
The Slow Speed with Braking option provides a jog speed for process
set-up and braking-to-stop at the end of the cycle.
Figure 1.12 Slow Speed with Braking Option
Accu-Stop and Slow Speed with Braking are not
intended to be used as an emergency stop. Refer to
applicable standards for emergency stop
requirements.
