3-24 Wiring
Soft Stop, Pump Control, and
SMB Smart Motor Braking
Figure 3.22 through Figure 3.25 show the different wiring for the Soft
Stop, Pump Control, and SMB Smart Motor Braking options.

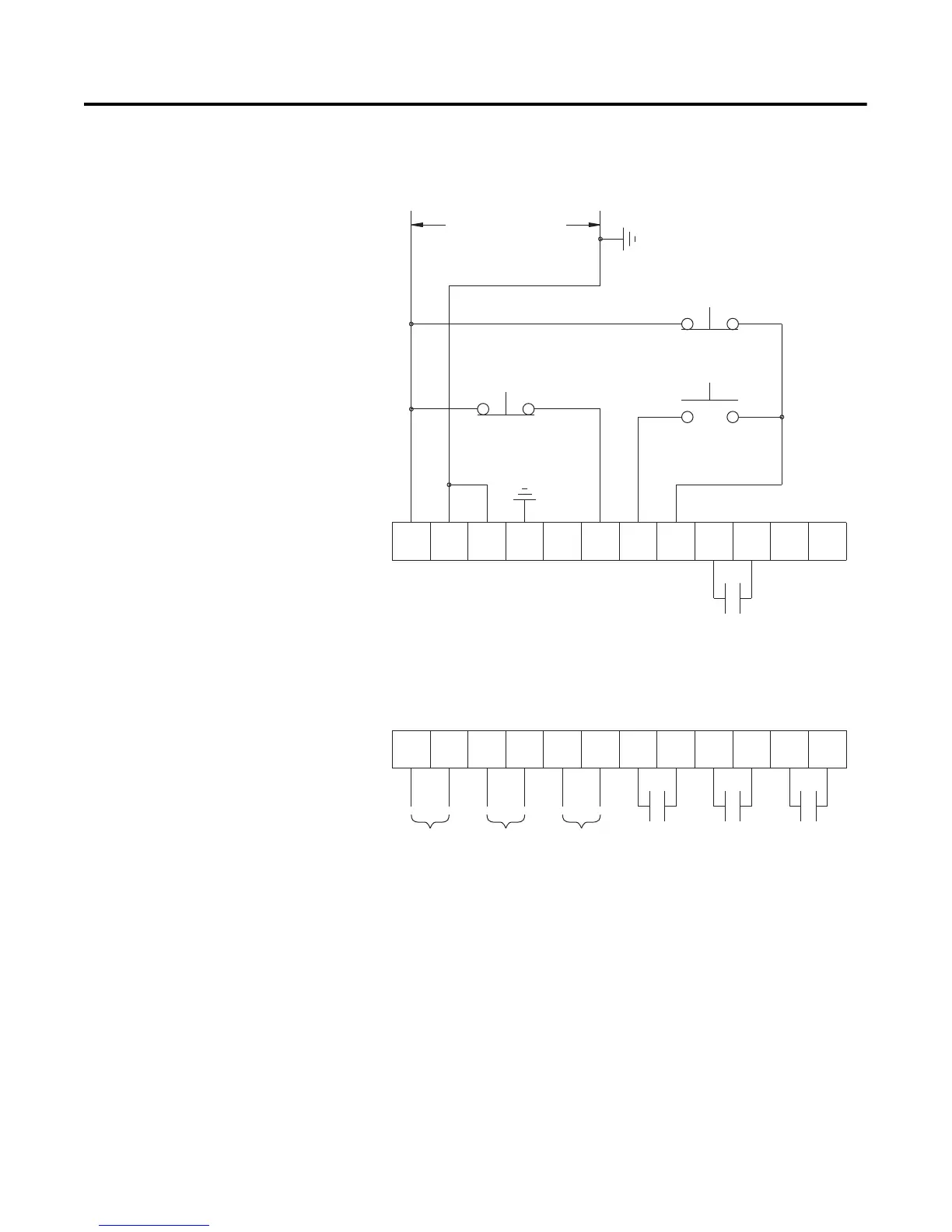

Figure 3.22 Typical Wiring Diagram
➀
Customer supplied.
➁ Soft Stop, Pump Stop, or Brake.
➂ Refer to the controller nameplate to verify the rating of the control power input voltage.
For units rated 625…1250 A, terminals 11 & 12 are factory pre-wired from terminal block
CP1 - terminals 1 & 4.
Note: Refer to Chapter 3 for typical power circuits.
11 12
13
14
15 16
17
18 19 20
21
23
24
25 26
27
28 29
30 31 32 33
22
34
Option Stop
Stop
Start
Control Power
Aux #3Aux #2
Aux #4
Aux #1
SMC-Flex
Control Terminals
PTC
Input
TACH
Input
Ground
Fault
➀
➀
➀➁
➂
To Next Page
