Installation 2-5

Mounting All units are fan cooled. It is important to locate the controller in a

position that allows air to flow vertically through the power module.

The controller must be mounted in a vertical plane and have a

minimum of 15 cm (6 in.) free space above and below the

controller.

When drilling or installing near the softstarter, make sure that

adequate measures are taken to protect the device from dust and

debris. See Figure 2.2.

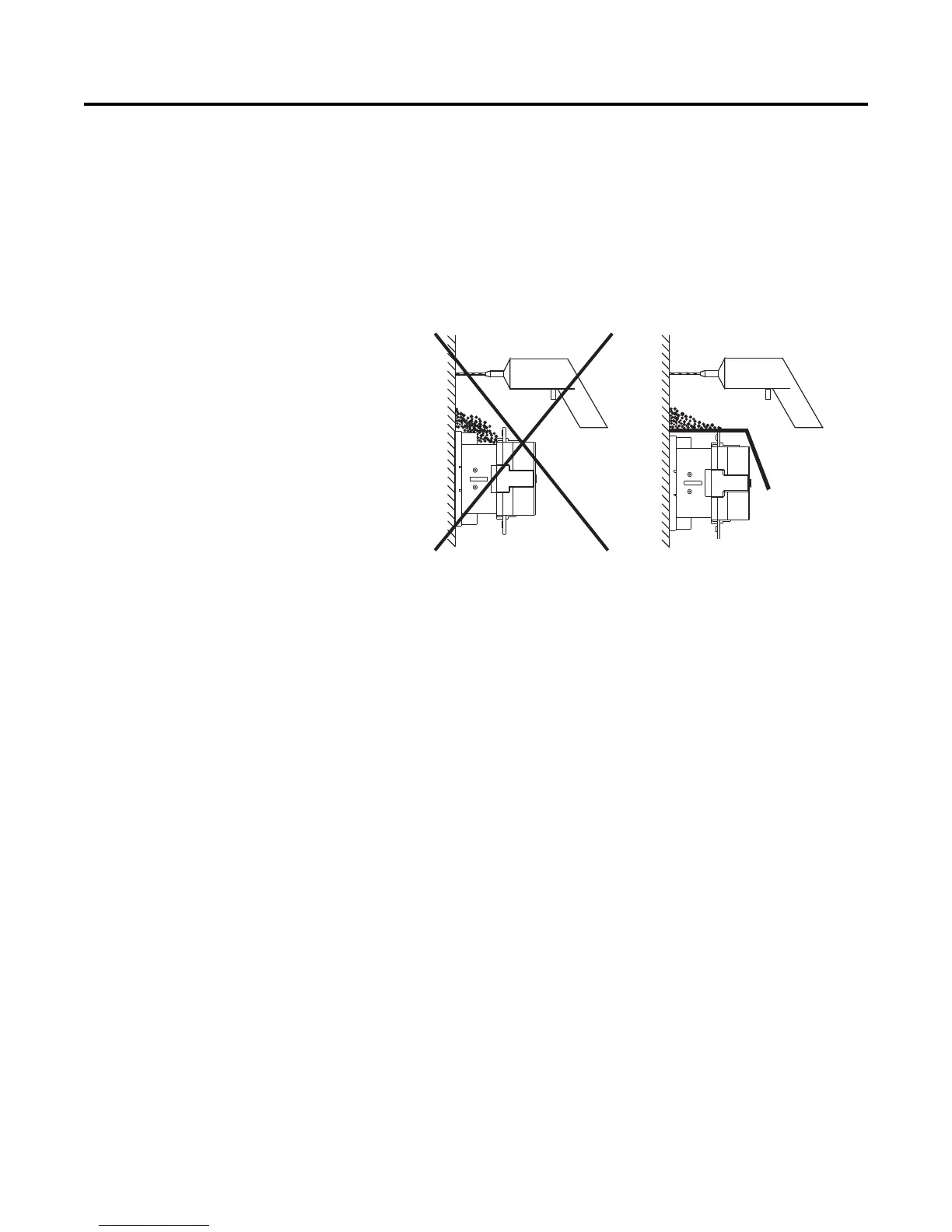

Figure 2.2 SMC-Flex Mounting Protection
