Rockwell Automation SMC-Flex

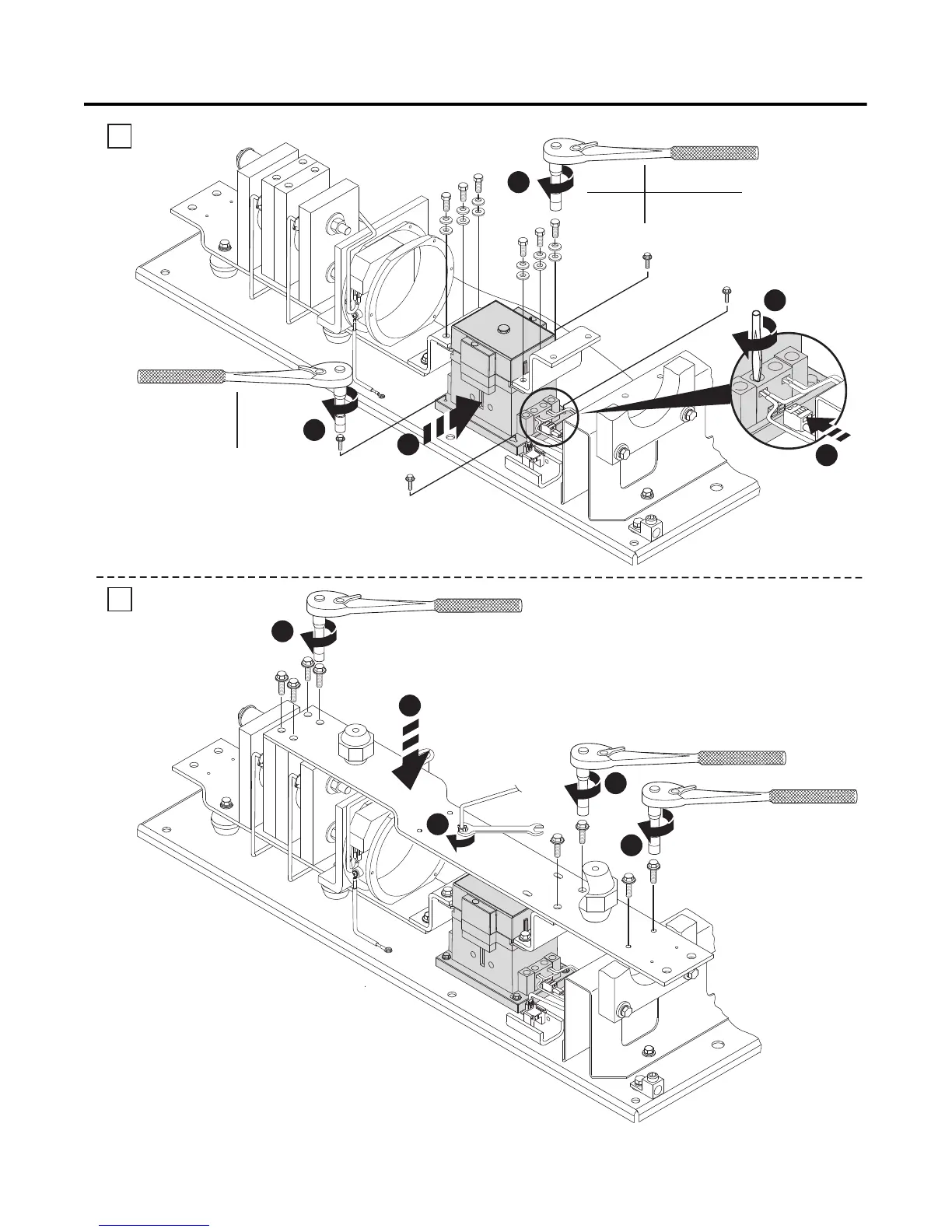

D-4 Contactor Replacement Installation Instructions for 625…1250 A units
1
2
5
6
4
3
2
1
100 lb-in
11.3 N•m
100 lb-in
11.3 N•m
140 lb-in
15.8 N•m
100 lb-in
11.3 N•m
625 / 780 A
140 lb-in
15.8 N•m
970 / 1250 A
5
4
3
20 lb-in
2.3 Nm
30 lb-in
3.4 N•m
625 / 780 A
55 lb-in
6.2 N•m
970 / 1250 A
5
18 lb-in
2.0 N•m
