3-10 Wiring

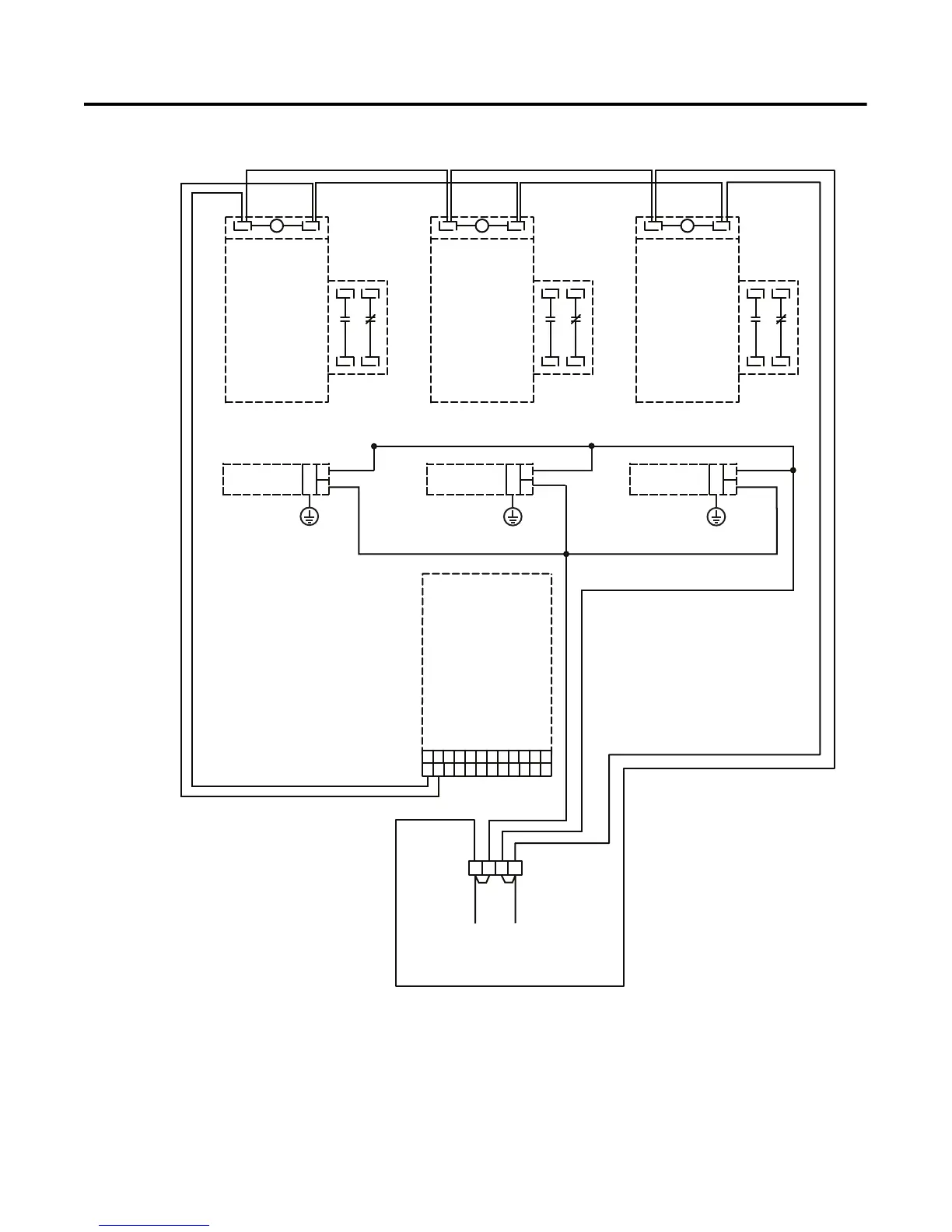

Figure 3.8 Internal Wiring and 120V Control Connection Diagram for

625…1250 A Devices

CP1

CONTACTOR

SM C FLEX

CONTROL

MODULE

CONTACTOR

F A N A F A N B FAN C

CONTACTOR/ FAN

IN P U T 120 VA C

15 16

243 1

GND

Default Chapter5
- Table of Contents5
