CONNECTORS

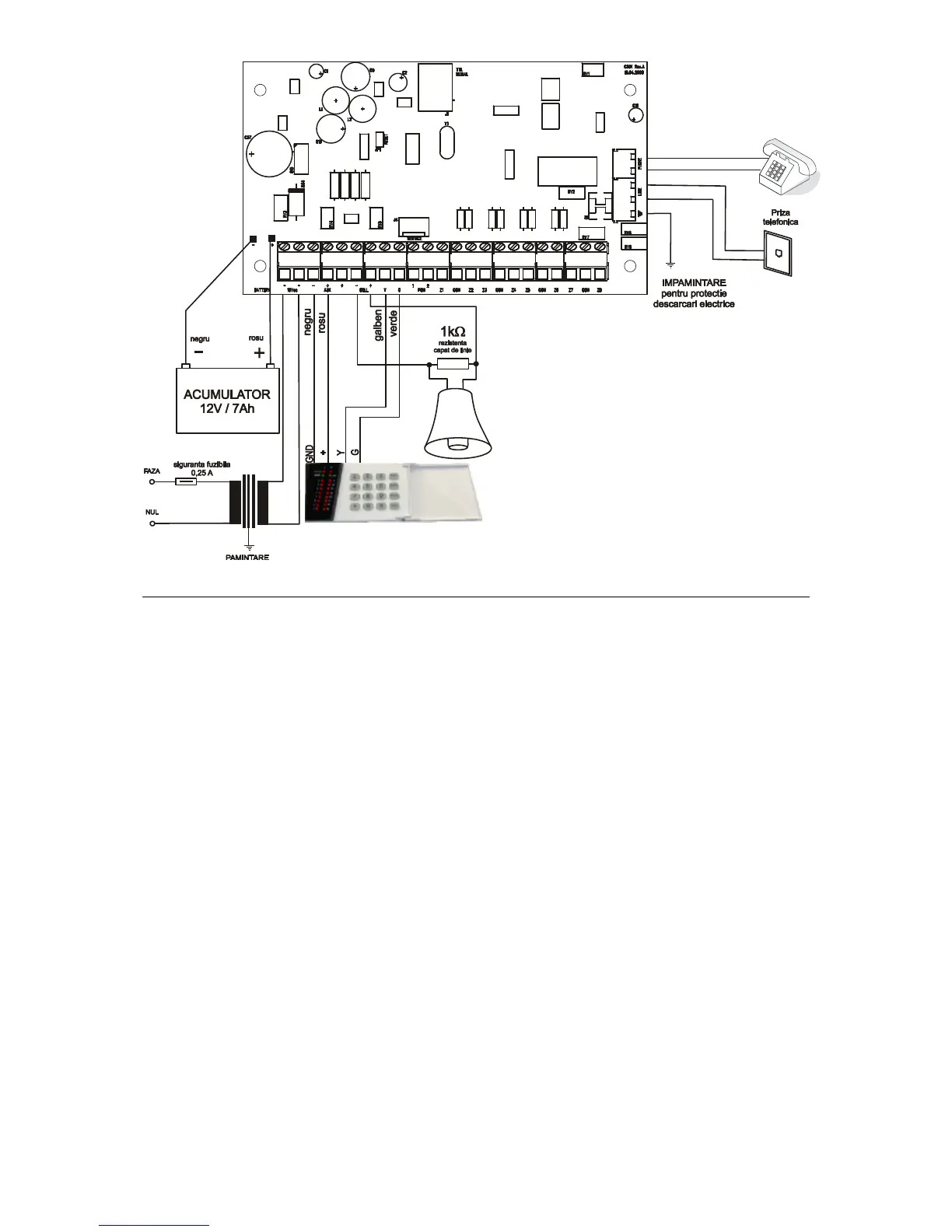

The following connectors can be found on the panel PCB:
AUX-, AUX+
Connectors for auxiliary power supply.
These terminals are used to supply power to the keypads, PIR detectors and other active
devices in the system, which require power from a 14.2Vcc supply source).
The maximum load on these terminals should not exceed 1A. Pay attention to polarity!
YEL, GRN
Keypad communication connectors.
PGM 1, PGM 2
PGM1 - “open collector” output 1 with negative trigger (NPN); current capability: up to 50mA
(at +14.2Vcc).
PGM2 - “open collector” output 2 with negative trigger (NPN); current capability: up to 50mA
(at +14.2Vcc).
BELL +
Siren output. „BELL+” is a positive trigger output (PNP), with 1K EOL supervision resistor.
