Roland Octa-Capture User Manual

21

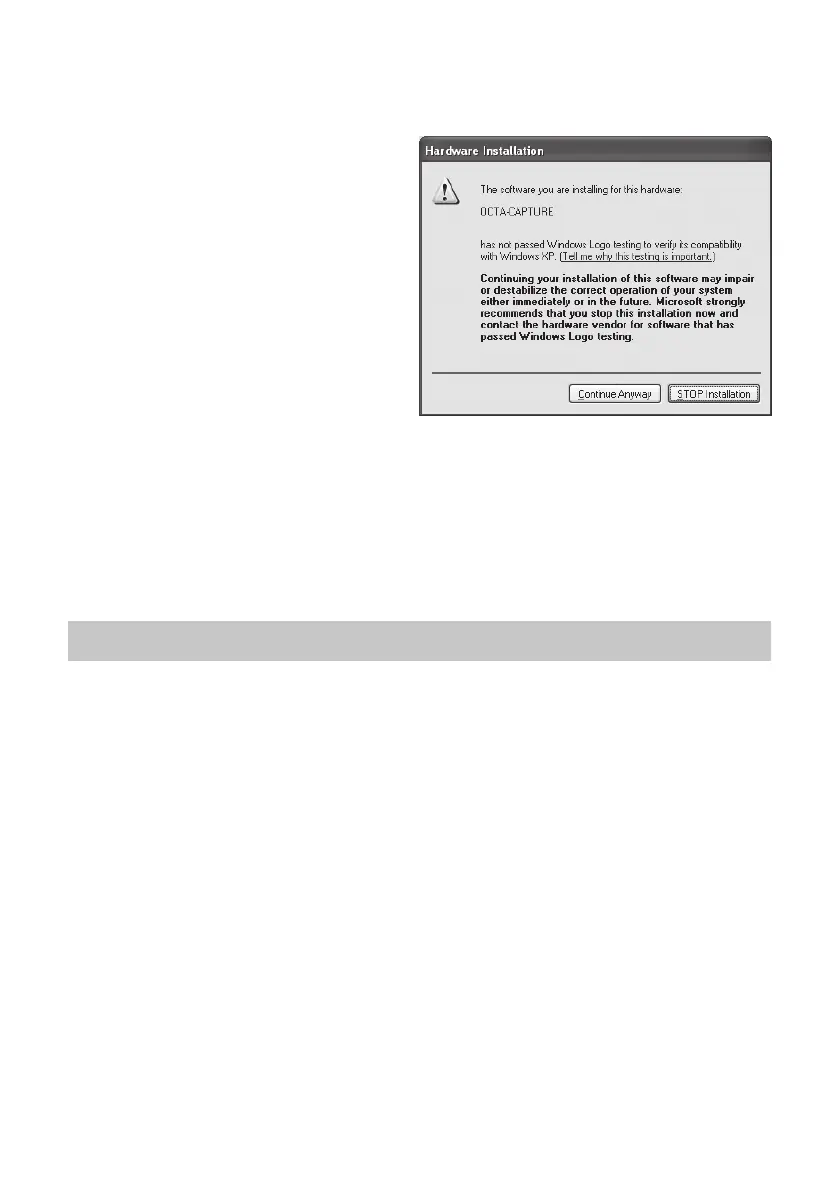

11. If the “Hardware Installation” dialog
box appears, click [Continue Anyway]
to continue the installation.
If you are unable to proceed, click [OK] in the
dialog box to terminate the installation. Then
change the setting as described in “Driver
Signing Option Settings (Windows XP)” (p. 72),
and perform the installation once again.
12. The screen will indicate “Completing the Found New Hardware Wizard.” Click [Finish].
When installation is complete, the “OCTA-CAPTURE Driver Setup” dialog box will indicate “Installation
has been completed.”
13. Click [Close] to close the “OCTA-CAPTURE Driver Setup” dialog box.
If the “System Settings Change” dialog box appears, click [Yes] to restart Windows.
Input/Output Device Settings
In order to use the OCTA-CAPTURE with your software, you must select the OCTA-CAPTURE as the
audio input/output device. For details on how to make this setting, refer to the documentation for
the software you’re using.
* If you’re unable to select the OCTA-CAPTURE as the audio input/output device in your software,
it may be that a problem has occurred. Refer to “Problems with Settings” (p. 84) in the Trouble-
shooting section.
Audio input/output device
For details about this device, refer to “Device Name (Windows)” (p. 81).
If you’re using ASIO compatible software, select the OCTA-CAPTURE in the ASIO settings of your
software.
MIDI input/output device
For details about this device, refer to “Device Name (Windows)” (p. 81).

Roland Octa-Capture Specifications

Audio Channels

number of audio record channels (44.1/48/96 kHz)	12 channels
number of audio playback channels (44.1/48/96 kHz)	10 channels
number of audio record channels (192 kHz)	4 channels
number of audio playback channels (192 kHz)	4 channels

Signal Processing

pc interface bit depth	24-bit
ad/da conversion bit depth	24-bit
internal processing bit depth	40-bit

Sampling Frequency

ad/da conversion sampling frequency	44.1/48/96/192 kHz
digital (in/out) sampling frequency	44.1/48/96 kHz

Input and Output Levels

nominal input level (input jack 1-6, xlr type)	-56 to -6 dBu
nominal input level (input jack 7-8, xlr type)	-50 to +0 dBu
nominal input level (input jack 1-8, 1/4-inch trs phone type)	-46 to +4 dBu
nominal output level (output 1-8)	+0 dBu (balanced)
headroom	16 dB

Impedance

input impedance (input jack 1-6, xlr type)	5 k ohms (balanced)
input impedance (input jack 7-8, xlr type)	10 k ohms (balanced)
input impedance (input jack 1-8, 1/4-inch trs phone type)	17 k ohms (balanced)
output impedance (output 1-8)	1.8 k ohms (balanced)
output impedance (phones)	47 ohms

Frequency and Noise

frequency response (192 kHz)	20 Hz to 90 kHz (+0/-8 dB)
frequency response (96 kHz)	20 Hz to 40 kHz (+0/-2 dB)
frequency response (48 kHz)	20 Hz to 22 kHz (+0/-2 dB)
frequency response (44.1 kHz)	20 Hz to 20 kHz (+0/-2 dB)
residual noise level	-87 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)

Dynamic Range and Display

dynamic range (ad block input 1-8)	104 dB typ. (GAIN: min.)
dynamic range (da block output 1-8)	113 dB typ.
display	128 x 64 dots Graphic LCD (backlit LCD)

Connectors

input jacks (xlr type / 1/4-inch trs phone type)	XLR type (balanced/phantom power +48 V), 1/4-inch TRS phone type (balanced)
coaxial input connector	present
coaxial output connector	present
headphone jack	Stereo 1/4-inch phone type
output jack (1/4-inch trs phone type)	balanced
midi connectors	In, Out
usb connector	present

Power and Dimensions

power supply	DC 9 V (AC adaptor)
current draw	1.45 A
dimensions	283.8 (W) x 157.9 (D) x 50.4 (H) mm / 11-3/16 (W) x 6-1/4 (D) x 2 (H) inches
weight	1.32 kg / 2 lbs 15 oz
