Basic Connections
Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with
textual information faces downwards.
* The indicator will light when you plug the AC adaptor into an AC outlet.
Use a USB cable to connect the OCTA-CAPTURE to your computer. Both MIDI data and audio data are
transferred over the USB cable.
When you connect headphones or amplied speakers as shown in the diagram, you’ll be able to
monitor the playback from your software, or the sound of instruments or audio devices connected
to the OCTA-CAPTURE.

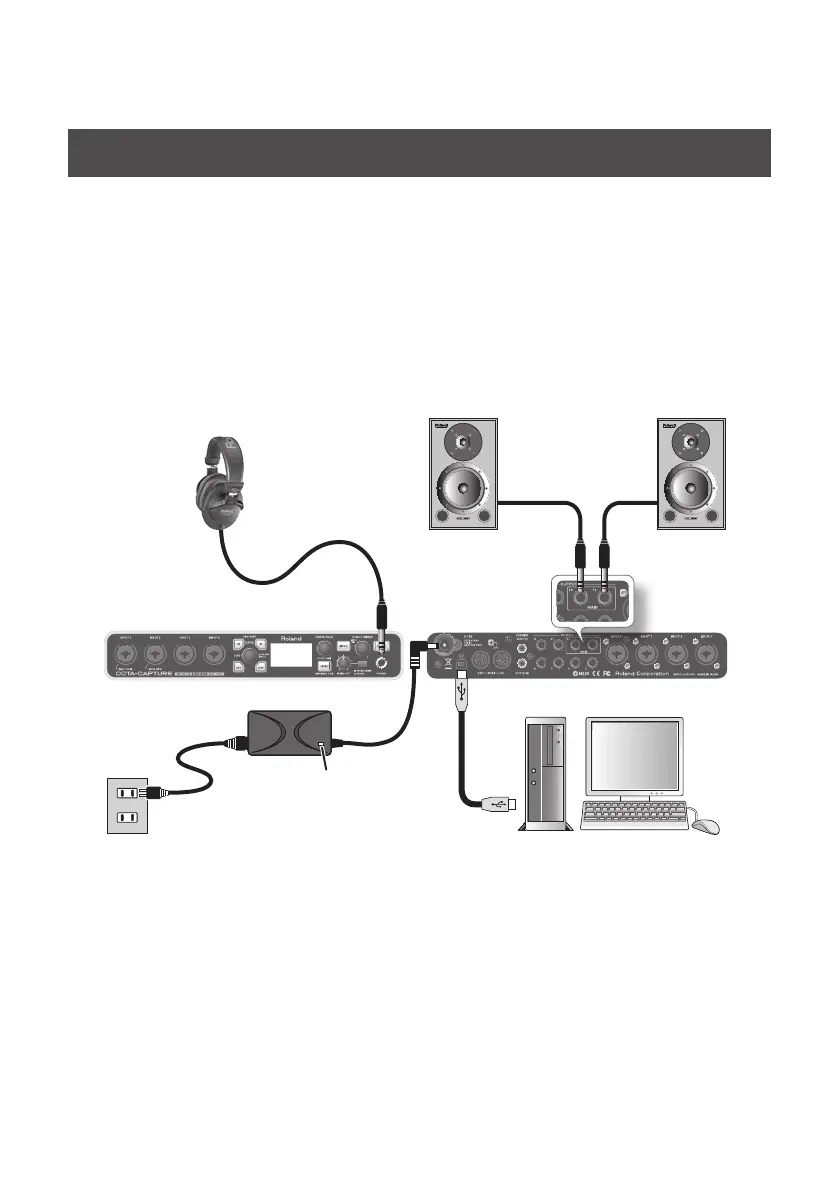

Front panel Rear panel
Amplied Speakers
Headphones
AC outlet
Indicator
Computer
AC adaptor
