Operations in the OCTA-CAPTURE’s Panel
Main Screen

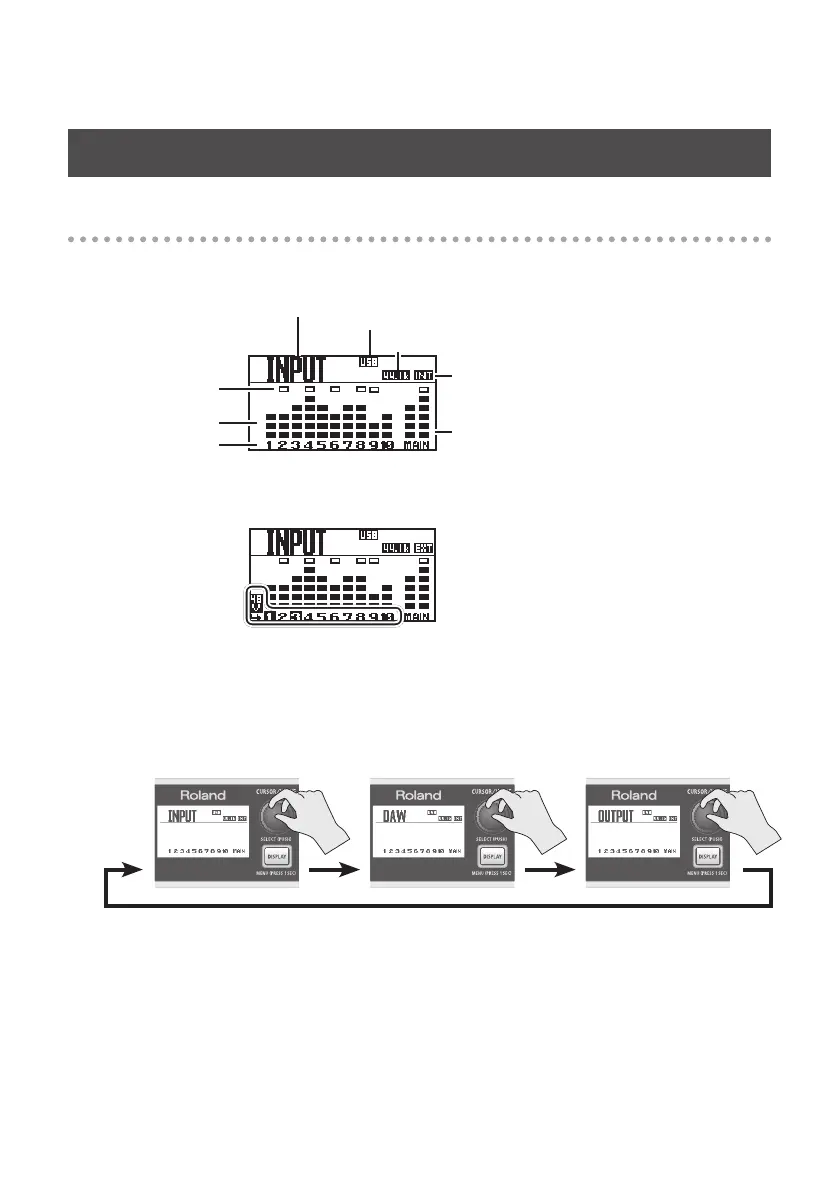

Press the [DISPLAY] button to access the main screen.
Name of the level
meters currently shown
Lit when connected via USB
Sampling Frequency
Channel Number
Level meter
Clip indicator
Sync indicator
Internal clock (INT)
External clock (EXT)
Output level meter
If phantom power (p. 36) is turned on for a channel, that channel number will be highlighted.
As you turn the [CURSOR/VALUE] knob toward the right, you’ll move successively through the
screens “INPUT” (the input levels), “DAW” (the output levels from the computer), and “OUTPUT” (the
output levels from the OCTA-CAPTURE’s OUTPUT jacks).
Input Level meter
Output Level meter
DAW Playback Level meter
