Roland Octa-Capture User Manual

8

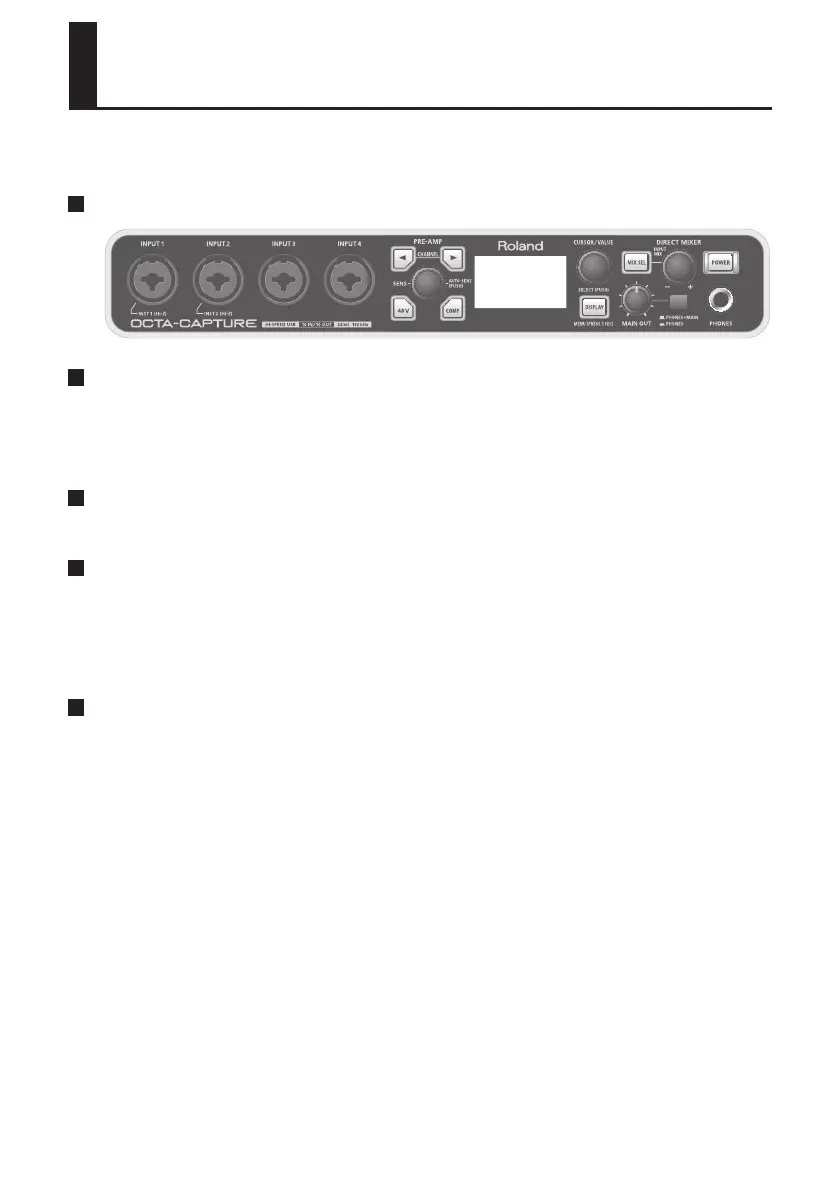

After you open the package, please check that all items are present.
If anything is missing, contact your dealer.
OCTA-CAPTURE
AC adaptor
This is the dedicated AC adaptor for the OCTA-CAPTURE. Use only the supplied AC adaptor.
* If, due to damage, you need to acquire a dedicated AC adaptor, please contact the nearest
Roland service center, as listed on the “Information” page (p. 97), or an authorized Roland dealer.
Owner’s manual
This is the document you’re reading. Keep it at hand for reference when needed.
OCTA-CAPTURE Driver CD-ROM
This contains the OCTA-CAPTURE drivers and demo songs.
* DO NOT play a CD-ROM disc on a conventional audio CD player. The resulting sound may be of a
level that could cause permanent hearing loss.
Damage to speakers or other system components may result.
Cakewalk Production Plus Pack DVD-ROM (Mac/Windows)
This package includes:
• Cakewalk SONAR 8.5 LE (PC)
• Cakewalk Sound Center (Mac/PC)
• Rapture LE (Mac/PC)
• Studio Instruments Drums (Mac/PC)
For details on user registration and obtaining a registration code, refer to the installation guide on
the CD-ROM or to the Help function of the software.
* Before you open the included CD-ROM/DVD-ROM, you must read the “license agreement.” Open-
ing the CD-ROM/DVD-ROM will be taken to mean your acceptance of the license agreement.
* Avoid touching or scratching the shiny underside (encoded surface) of the disc. Damaged or
dirty CD-ROM/DVD-ROM discs may not be read properly. Keep your discs clean using a com-
mercially available CD-ROM/DVD-ROM cleaner.
* Use of the song data supplied with this product for any purpose other than private, personal
enjoyment without the permission of the copyright holder is prohibited by law. Additionally, this
data must not be copied, nor used in a secondary copyrighted work without the permission of
the copyright holder.
023
801
981b
Contents of the Package

Roland Octa-Capture Specifications

Audio Channels

number of audio record channels (44.1/48/96 kHz)	12 channels
number of audio playback channels (44.1/48/96 kHz)	10 channels
number of audio record channels (192 kHz)	4 channels
number of audio playback channels (192 kHz)	4 channels

Signal Processing

pc interface bit depth	24-bit
ad/da conversion bit depth	24-bit
internal processing bit depth	40-bit

Sampling Frequency

ad/da conversion sampling frequency	44.1/48/96/192 kHz
digital (in/out) sampling frequency	44.1/48/96 kHz

Input and Output Levels

nominal input level (input jack 1-6, xlr type)	-56 to -6 dBu
nominal input level (input jack 7-8, xlr type)	-50 to +0 dBu
nominal input level (input jack 1-8, 1/4-inch trs phone type)	-46 to +4 dBu
nominal output level (output 1-8)	+0 dBu (balanced)
headroom	16 dB

Impedance

input impedance (input jack 1-6, xlr type)	5 k ohms (balanced)
input impedance (input jack 7-8, xlr type)	10 k ohms (balanced)
input impedance (input jack 1-8, 1/4-inch trs phone type)	17 k ohms (balanced)
output impedance (output 1-8)	1.8 k ohms (balanced)
output impedance (phones)	47 ohms

Frequency and Noise

frequency response (192 kHz)	20 Hz to 90 kHz (+0/-8 dB)
frequency response (96 kHz)	20 Hz to 40 kHz (+0/-2 dB)
frequency response (48 kHz)	20 Hz to 22 kHz (+0/-2 dB)
frequency response (44.1 kHz)	20 Hz to 20 kHz (+0/-2 dB)
residual noise level	-87 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)

Dynamic Range and Display

dynamic range (ad block input 1-8)	104 dB typ. (GAIN: min.)
dynamic range (da block output 1-8)	113 dB typ.
display	128 x 64 dots Graphic LCD (backlit LCD)

Connectors

input jacks (xlr type / 1/4-inch trs phone type)	XLR type (balanced/phantom power +48 V), 1/4-inch TRS phone type (balanced)
coaxial input connector	present
coaxial output connector	present
headphone jack	Stereo 1/4-inch phone type
output jack (1/4-inch trs phone type)	balanced
midi connectors	In, Out
usb connector	present

Power and Dimensions

power supply	DC 9 V (AC adaptor)
current draw	1.45 A
dimensions	283.8 (W) x 157.9 (D) x 50.4 (H) mm / 11-3/16 (W) x 6-1/4 (D) x 2 (H) inches
weight	1.32 kg / 2 lbs 15 oz
