Roland SC-545EX Print&Cut User Manual

78
Chapter 4: A Wide Variety of Operations
4-6 Making Corrections for Printing and Cutting

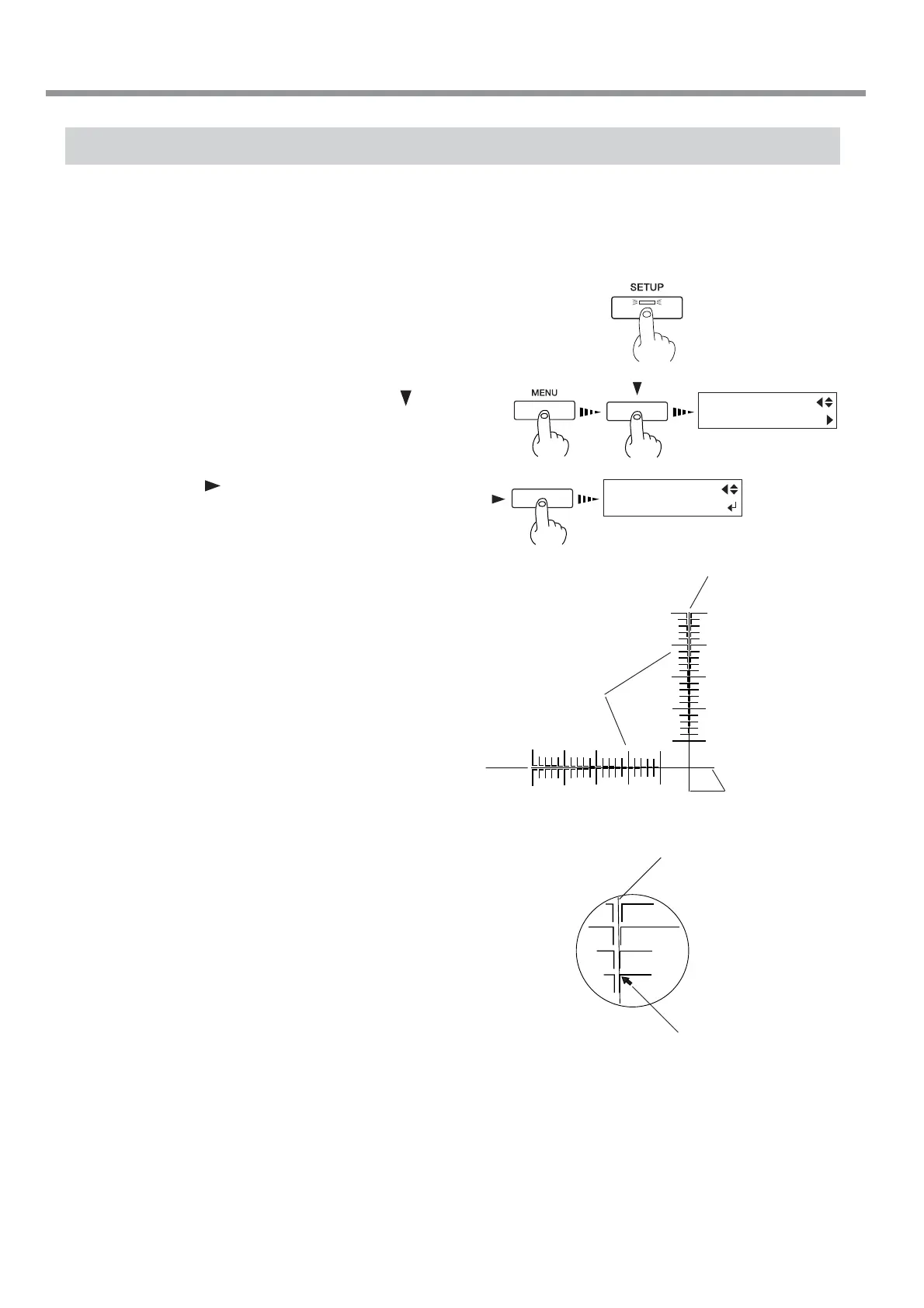

Adjusting Manually
Read the correction value from the test pattern printed and cut on the media. Enter the read correction value with the
operation panel, then align the printing and cutting positions.
1
Load media and install a blade, then press the
[SETUP] key.
2
Press the [MENU] key, and press the [ ] key
to make the following screen appear on the dis-
play.
3
Press the [ ] key to make the following screen
appear on the display.
4
Press the [ENTER] key to print and cut the test
pattern.
5
From the test pattern, read the value at the lo-
cation shown in the figure.
The SETUP LED lights up
MENU
PRINT - CUT ADJ.
PRINT - CUT ADJ.
TEST PRINT
+2.0 -2.0
+1.0 -1.0
+0.5 -0.5
+0.0 -0.0
+1.5 -1.5
Scan
+2.0
-2.0
+1.0
-1.0
+0.5
-0.5
+0.0
-0.0
+1.5
-1.5
Feed
-0.5
Cutting line
Scan direction
Read the scale on which the cutting line
goes over as the correction-value. In this
figure, the value is "-0.3." Use the same
method to read the value on the [FEED]
side.
Test pattern
Correction-value scale
Cutting line
Make sure the value
on the [SCAN] side.
Make sure the value
on the [FEED] side.
