Connecting to Your Computer/MIDI Keyboard
■
Connecting to a Computer via the Serial Connector

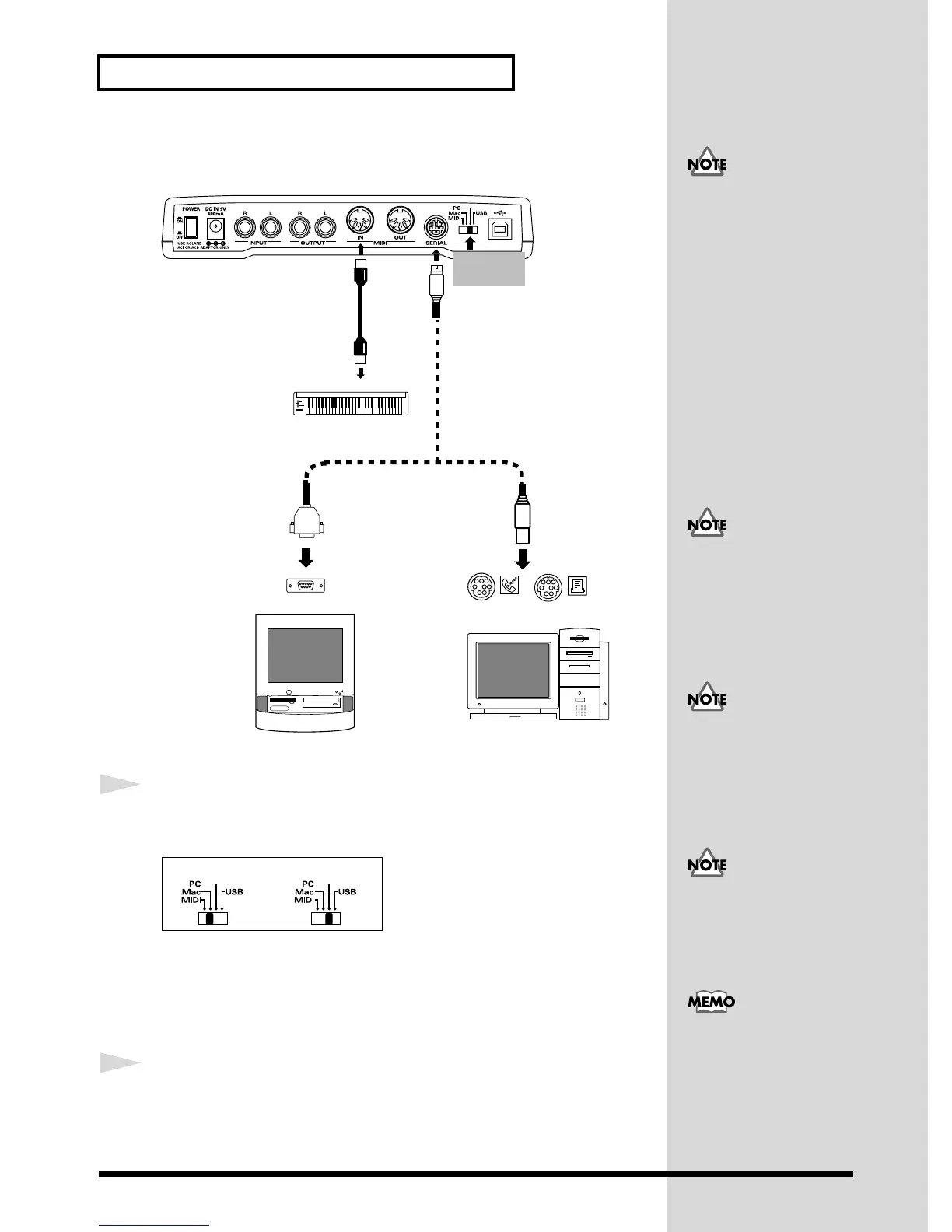

fig.1-4e
1
Turn off the power of the SC-8820, then set the COMPUTER switch, which
is located on the back of the SC-8820.
fig.1-5e
Select the “Mac” position if you are using an Apple Macintosh computer, or select
the “PC” position if you are using a PC.
The PC baud rate is 38.4 Kbps.
* This cannot be used on computers whose baud rate can be set only to 31.25 Kbps.
2
Connect the Computer cable to the Serial port (PC), or the Modem or
Printer port (Apple Macintosh series computer) on the back of your com-
puter.
Before making connections
to other devices, it is very
important to turn down the
volume and turn off the
power in order to prevent
malfunctions or speaker
damage.
MIDI keyboard
(PC-180, PC-160 etc.)
OUT
PC
Apple Macintosh Series
Serial connector
Computer cable
(sold separately)
Modem Port or Printer Port
Apple Macintosh
PC
( | ❍ | ❍ | )
The setting
is PC / Mac
If you are using the serial
connector to make connec-
tions, you must also
connect the AC adaptor.
Apple Macintosh Series
PC
Turn off the power before
changing the setting of the
COMPUTER switch. The
setting of this switch takes
effect when the power is
turned on.
Be aware that the appro-
priate setting of the
COMPUTER switch may
differ, depending on the
type of computer.
You will need to have a
Computer cable (sold
separately) that is appro-
priate for the computer that
you are using. Refer to
Computer Cable Wiring
Diagrams (p. 106).
