Panel Descriptions
■ Front Panel

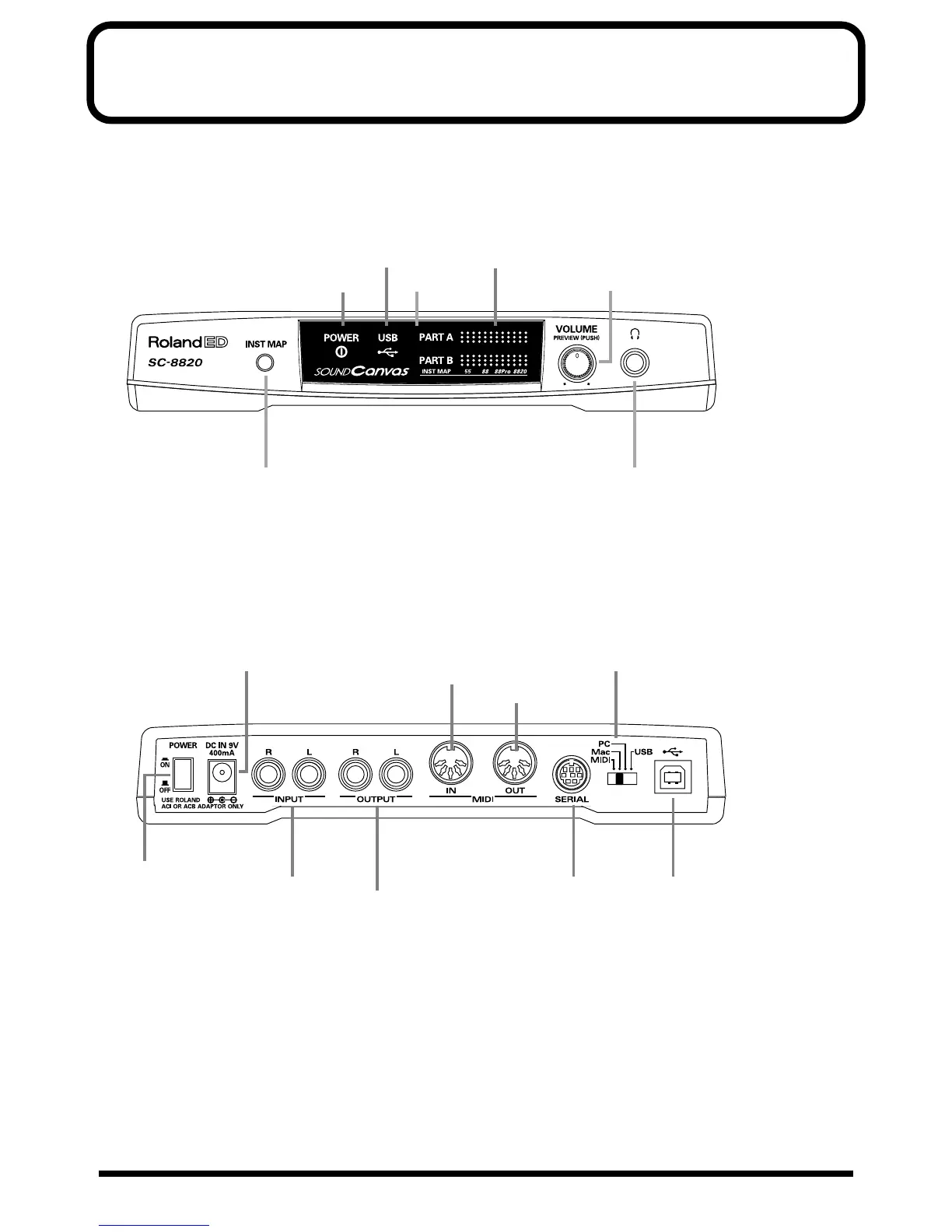

fig.0-3e
■ Rear Panel
fig.0-4e
PHONES jack
INSTRUMENT MAP button
display
VOLUME dial
USB connection indicator
This will light when the SC-8820 is
connected via USB to your computer,
and data can be transmitted and received.
Part level indicator
When there are sounding parts in part groups A or B,
the indicator will light to indicate the level of the group.
The part group B indicator also serves as the sound map indicator.
POWER indicator
The sound map will switch each time you press the button.
MIDI IN connector
MIDI OUT connector
POWER switch
INPUT jack
OUTPUT jack
A dedicated Computer cable or USB cable (sold separately)
can be connected here.
The type of cable required will depend on your computer.
When the Computer switch is set to MIDI,
the Computer connector or the USB cable cannot be used.
SERIAL connector/USB connctor
Computer switch
Set this switch depending on the type of computer connected
to the Computer connector, or the software you are using.
Turn the power off before changing the setting of this switch.
If you wish to use the MIDI connectors, set this switch to MIDI.
When operating on bus power supply, the SC-8820 will operate with
the USB setting regardless of the position of the computer switch.
AC adaptor jack
