50: GTR Multi 3 (Guitar Multi 3) [04H, 02H]
Guitar Multi 3 connects Wah (Wah), Overdrive or Distortion
(OD), Chorus or Flanger (CF), and Delay (Dly) effects in
series.

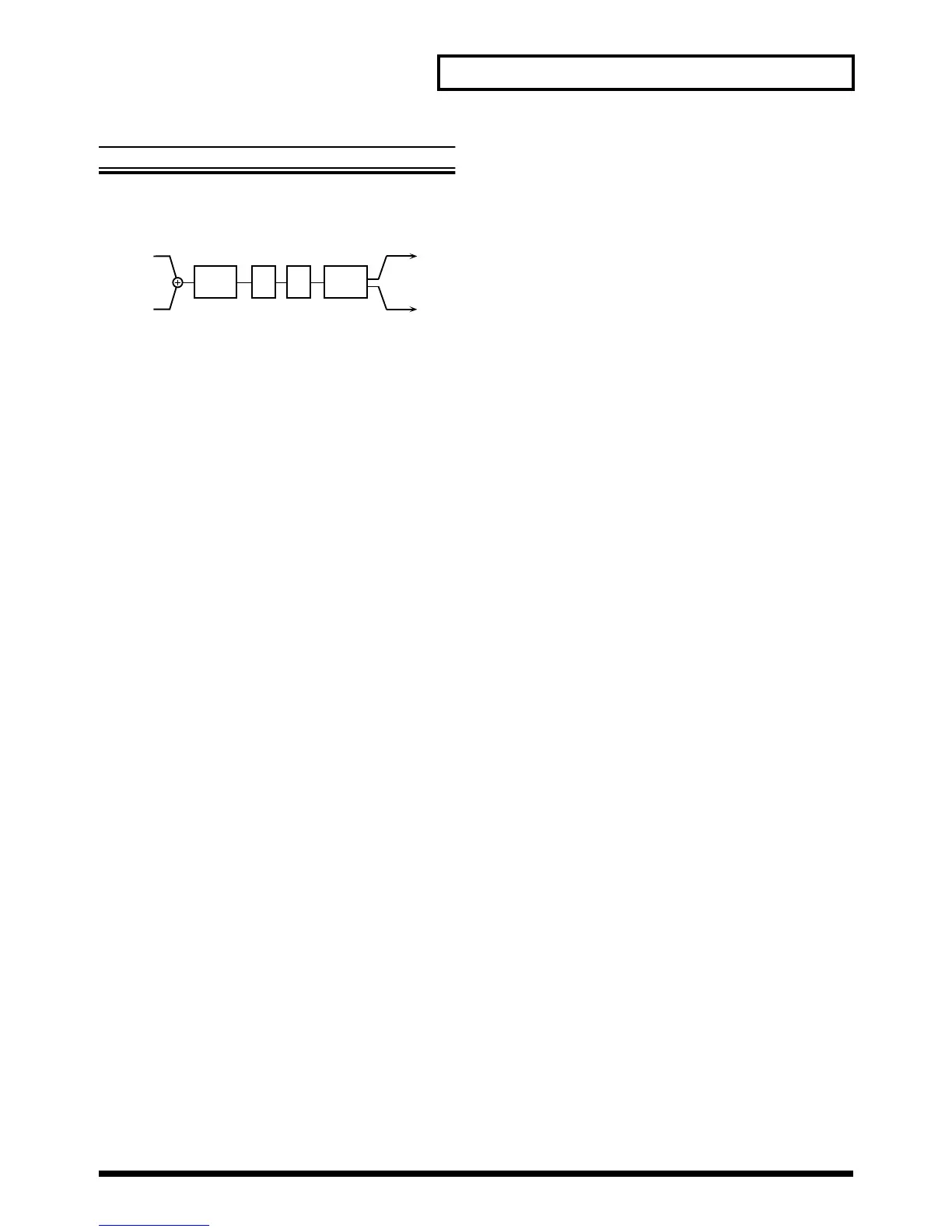

fig.9-53
● Wah
Wah Fil (Wah Filter Type) LPF/BPF [1 (40 03 03)]
Selects the type of filter.
LPF: The wah effect will be produced over a
broad frequency range.
BPF: The wah effect will be produced in a narrow
frequency range.
+Wah Man (Wah Manual) 0–127 [2 (40 03 04)]
Sets the center frequency at which the effect will be
produced.
Wah Peak 0–127 [3 (40 03 05)]
Adjusts the way in which the wah effect will be applied to
the region of the center frequency. Lower settings will
produce a wah effect in a broad area around the center
frequency, and higher settings will produce a wah effect in
a narrower area around the center frequency.
Wah Sw (Wah Switch) Off/On [4 (40 03 06)]
Turns Wah on/off.
● OD (Overdrive/Distortion)
OD Sel (OD Select) Odrv/Dist [5 (40 03 07)]
Selects either Overdrive or Distortion.
#OD Drive (Overdrive Drive) 0–127 [6 (40 03 08)]
Adjusts the depth of distortion. The volume will change
together with the depth of distortion.
OD Amp (Overdrive Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [7 (40 03 09)]
Selects the type of guitar amp
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk: large triple stack amp
OD Amp Sw (OD Amp Switch) Off/On [8 (40 03 0A)]
Turns OD Amp on/off.
OD L Gain (OD Low Gain) -12–+12 [9 (40 03 0B)]
Adjusts the low-range gain for the overdrive (or distortion)
sound.
OD H Gain (OD High Gain) -12–+12 [10 (40 03 0C)]
Adjusts the high-range gain for the overdrive (or distortion)
sound.
OD Sw (OD Switch) Off/On [11 (40 03 0D)]
Turns overdrive or distortion on/off.
● CF (Chorus/Flanger)
CF Sel (CF Select) Chorus/Flangr [12 (40 03 0E)]
Selects either Chorus or Flanger.
CF Rate 0.05–6.40 [13 (40 03 0F)]
Adjusts the modulation speed for the chorus or flanger.
CF Depth 0–127 [14 (40 03 10)]
Adjusts the modulation depth for the chorus or flanger.
CF Fb (CF Feedback) -98%–+98% [15 (40 03 11)]
Adjusts the amount (%) of the flanger sound that is
returned to the input. Negative (-) values will invert the
phase.
* In the case of Chorus, this will have no effect.
CF Mix 0–127 [16 (40 03 12)]
Adjusts the volume of the chorus or flanger sound.
● Dly (Delay)
Dly Time (Delay Time) 0–635ms [17 (40 03 13)]
Adjusts the time from the original sound until when the
delay sound is heard.
Dly Fb (Delay Feedback Level) 0–127 [18 (40 03 14)]
Adjusts the amount of the delay sound that is returned to
the input.
Dly Mix (Delay Mix) 0–127 [19 (40 03 15)]
Adjusts the volume of the delay sound.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
