Effects

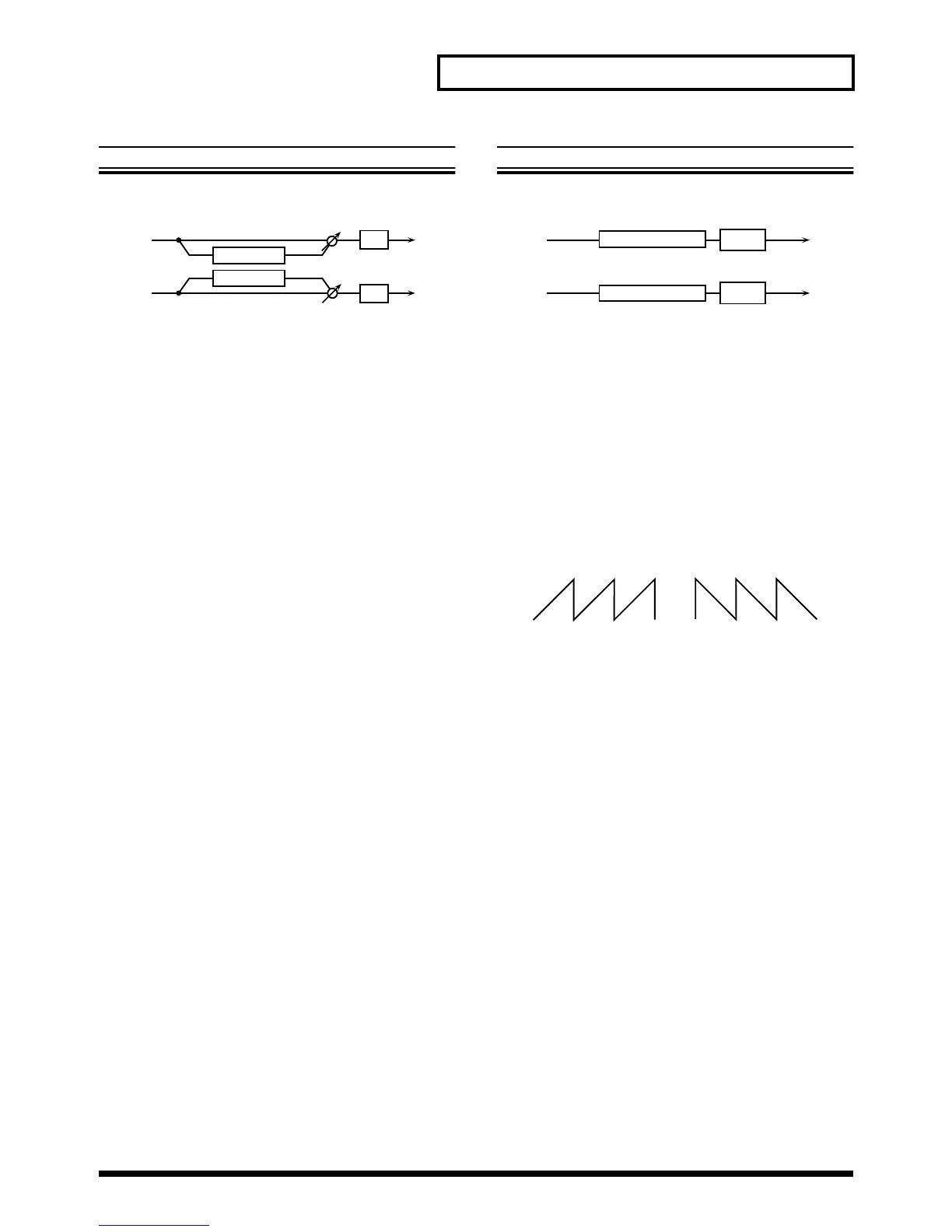

11: Step Flanger [01H, 24H]
The Step Flanger is an effect in which the flanger pitch
changes in steps.
fig.9-11
Pre Dly (Pre Delay Time) 0–100ms [1 (40 03 03)]
Adjusts the time delay from when the direct sound begins
until the processed sound is heard.
Rate 0.05–10.0 [2 (40 03 04)]
Adjusts the rate of modulation.
Depth 0–127 [3 (40 03 05)]
Adjusts the depth of modulation.
+Feedback (Feedback Level) -98%–+98% [4 (40 03 06)]
Adjusts the amount (%) of the processed sound that is
returned (fed back) into the input. Negative (-) settings will
invert the phase.
Phase 0–180 [5 (40 03 07)]
Adjusts the spatial spread of the sound.
#Step Rate 0.05–10.0 [6 (40 03 08)]
Adjusts the rate (period) of pitch change.
Balance (Effect Balance)
100:0
–0:100
(D:E) [16 (40 03 12)]
Adjusts the volume balance between the direct and the
processed sound.
“D” and “E” stand for “direct sound” and “effect sound”
respectively.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the gain of the low frequency range.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the gain of the high frequency range.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
12: Tremolo [01H, 25H]
Tremolo cyclically modulates the volume to add tremolo
effect to the sound.
fig.9-12
Mod Wave (Modulation Wave)
Tri/Sqr/Sin/Saw1/Saw2 [1 (40 03 03)]
Selects the type of modulation.
Tri: The sound will be modulated like a triangle
wave.
Sqr: The sound will be modulated like a square
wave.
Sin: The sound will be modulated like a sine
wave.
Saw1,2: The sound will be modulated like a
sawtooth wave. The teeth in Saw1 and
Saw2 point at opposite directions.
fig.9-13
+Mod Rate (Modulation Rate) 0.05–10.0 [2 (40 03 04)]
Adjusts the speed of modulation.
#Mod Depth (Modulation Depth) 0–127 [3 (40 03 05)]
Adjusts the depth of modulation.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the gain of the low frequency range.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the gain of the high frequency range.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
L
R
Flanger
Flanger
Balance
EQ
EQ
