79
Effects
57: FL/Delay (Flanger/Delay) [11H, 01H]
This effect connects a flanger and a delay in parallel.

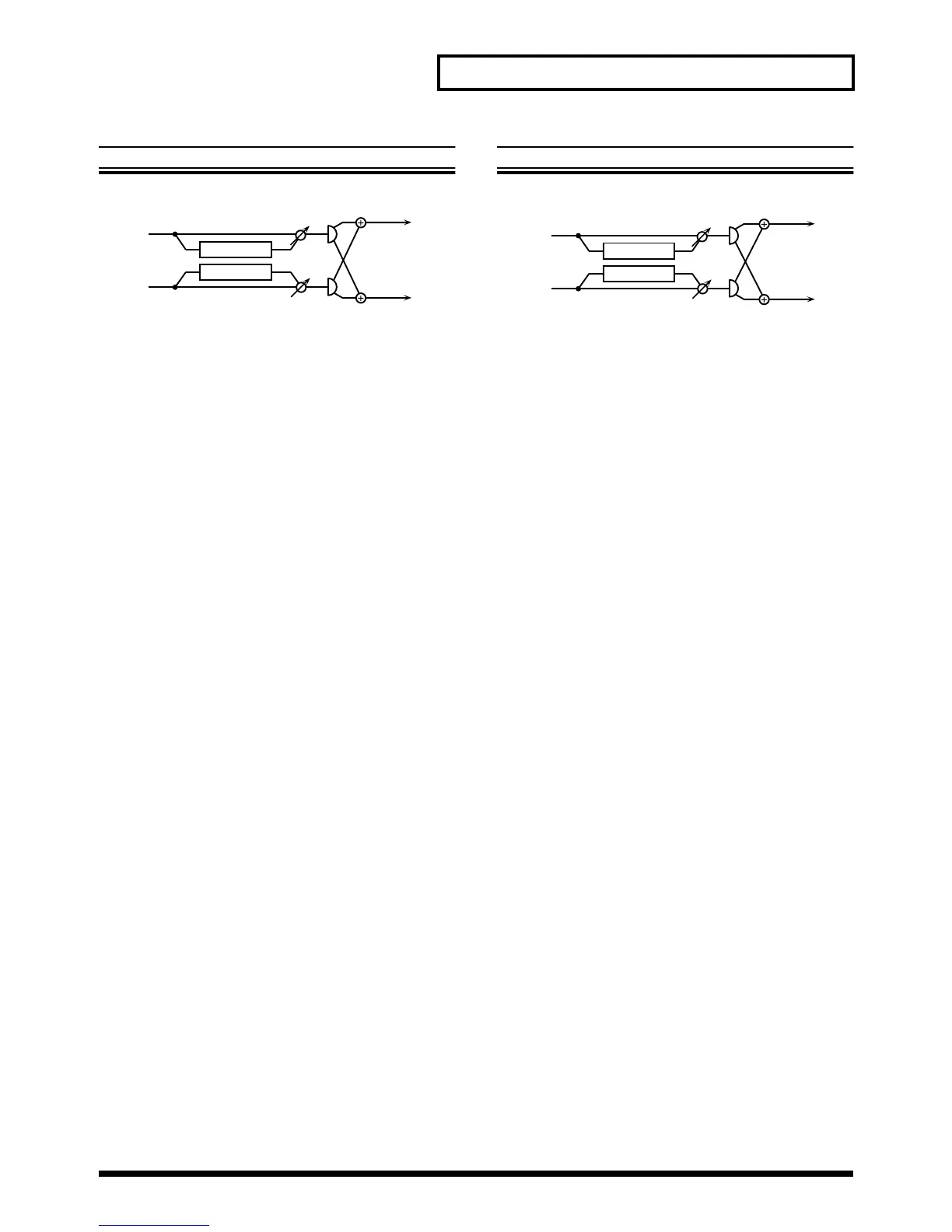

fig.9-62
FL Dly (Flanger Pre Delay) 0–100ms [1 (40 03 03)]
Adjusts the time delay from when the direct sound begins
until the flanger sound is heard.
FL Rate (Flanger Rate) 0.05–10.0 [2 (40 03 04)]
Adjusts the modulation speed of the flanger effect.
FL Depth (Flanger Depth) 0–127 [3 (40 03 05)]
Adjusts the modulation depth of the flanger effect.
FL Fb (Flanger Feedback Level) -98%–+98% [4 (40 03 06)]
Adjusts the proportion (%) of the flanger sound that is fed
back into the effect. Negative (-) settings will invert the phase.
+FL Bal (Flanger Balance) 100:0
–0:100
(D:E) [5 (40 03 07)]
Adjusts the volume balance between the direct sound and
the flanger sound.
D and E stand for direct sound and effect sound
respectively.
FL Pan (Flanger Output Pan) L63–0–R63 [16 (40 03 12)]
Adjusts the stereo position of the flanger sound. L63 is far
left, 0 is center, and R63 is far right.
FL Level (Flanger Level) 0–127 [17 (40 03 13)]
Adjusts the volume of the flanger sound.
Dly Time (Delay Time) 0–500ms [6 (40 03 08)]
Adjusts the time delay from when the direct sound begins
until the delay sound is heard.
Dly Fb (Delay Feedback Level) -98%–+98% [7 (40 03 09)]
Adjusts the proportion (%) of the delay sound that is fed
back into the delay input. Negative (-) settings will invert
the phase.
Dly HF (Delay HF Damp) 315–8k/Bypass [8 (40 03 0A)]
Adjusts the frequency above which delayed sound fed back
to the delay input will be cut. If you do not want to cut the
high frequencies of the delay feedback, set this parameter to
Bypass.
#Dly Bal (Delay Balance) 100:0
–0:100
(D:E) [10 (40 03 0C)]
Adjusts the volume balance between the direct and the
delay sound.
D and E stand for direct sound and effect sound
respectively.
Dly Pan (Delay Output Pan) L63–0–R63 [18 (40 03 14)]
Adjusts the stereo position of the delay sound. L63 is far
left, 0 is center, and R63 is far right.
Dly Level (Delay Level) 0–127 [19 (40 03 15)]
Adjusts the volume of the delay sound.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
58: Cho/Flanger (Chorus/Flanger) [11H, 02H]
This effect connects a chorus and a flanger in parallel.
fig.9-63
Cho Dly (Chorus Pre Delay) 0–100ms [1 (40 03 03)]
Adjusts the time delay from when the direct sound begins
until the chorus sound is heard.
Cho Rate (Chorus Rate) 0.05–10.0 [2 (40 03 04)]
Adjusts the modulation speed of the chorus effect.
Cho Depth (Chorus Depth) 0–127 [3 (40 03 05)]
Adjusts the modulation depth of the chorus effect.
+Cho Bal (Chorus Balance)
100:0
–0:100
(D:E) [5 (40 03 07)]
Adjusts the volume balance between the direct and the
chorus sound.
D and E stand for direct sound and effect sound
respectively.
Cho Pan (Chorus Output Pan) L63–0–R63 [16 (40 03 12)]
Adjusts the stereo position of the chorus sound. L63 is far
left, 0 is center, and R63 is far right.
Cho Level (Chorus Level) 0–127 [17 (40 03 13)]
Adjusts the volume of the chorus sound.
FL Dly (Flanger Pre Delay) 0–100ms [6 (40 03 08)]
Adjusts the time delay from when the direct sound begins
until the flanger sound is heard.
FL Rate (Flanger Rate) 0.05–10.0 [7 (40 03 09)]
Adjusts the modulation speed of the flanger effect.
FL Depth (Flanger Depth) 0–127 [8 (40 03 0A)]
Adjusts the modulation depth of the flanger effect.
FL Fb (Flanger Feedback Level) -98%–+98% [9 (40 03
0B)]
Adjusts the proportion (%) of the flanger sound that is fed
back into the effect. Negative (-) settings will invert the
phase.
#FL Bal (Flanger Balance)
100:0
–0:100
(D:E) [10 (40 03 0C)]
Adjusts the volume balance between the direct sound and
the flanger sound.
D and E stand for direct sound and effect sound
respectively.
FL Pan (Flanger Output Pan) L63–0–R63 [18 (40 03 14)]
Adjusts the stereo position of the flanger sound. L63 is far
left, 0 is center, and R63 is far right.
FL Level (Flanger Level) 0–127 [19 (40 03 15)]
Adjusts the volume of the flanger sound.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
L
R
Flanger
Delay
Balance
Pan
Pan
L
R
Chorus
Flanger
Balance
Pan
Pan
