EVQM-V01-R6 Installation and Operation Manual Quantum Intelligent EV Charging Pedestal
December 2023 Page 18 of 52

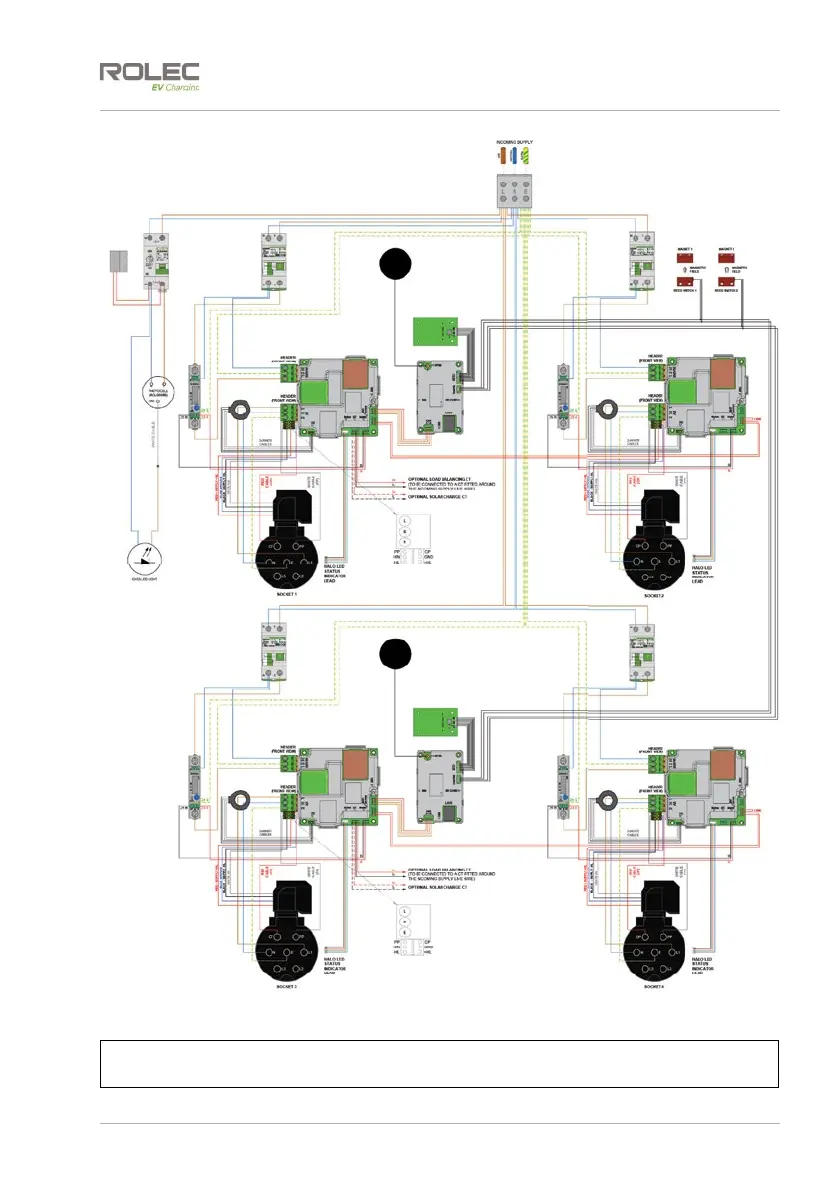

Figure 13 Intelligent EV Charging Pedestal (Single-Phase) – 4x up to 7.4kW Type 2 Socket
NOTE: With the exception of power input terminals and lighting, the 4-way pedestal is
essential 2x 2-way chargers in one pedestal.
