Product Specification
Quantum Intelligent EV Charging Pedestal EVQM-V01-R6 Installation and Operation Manual
Page 7 of 52 December 2023
Product Specification

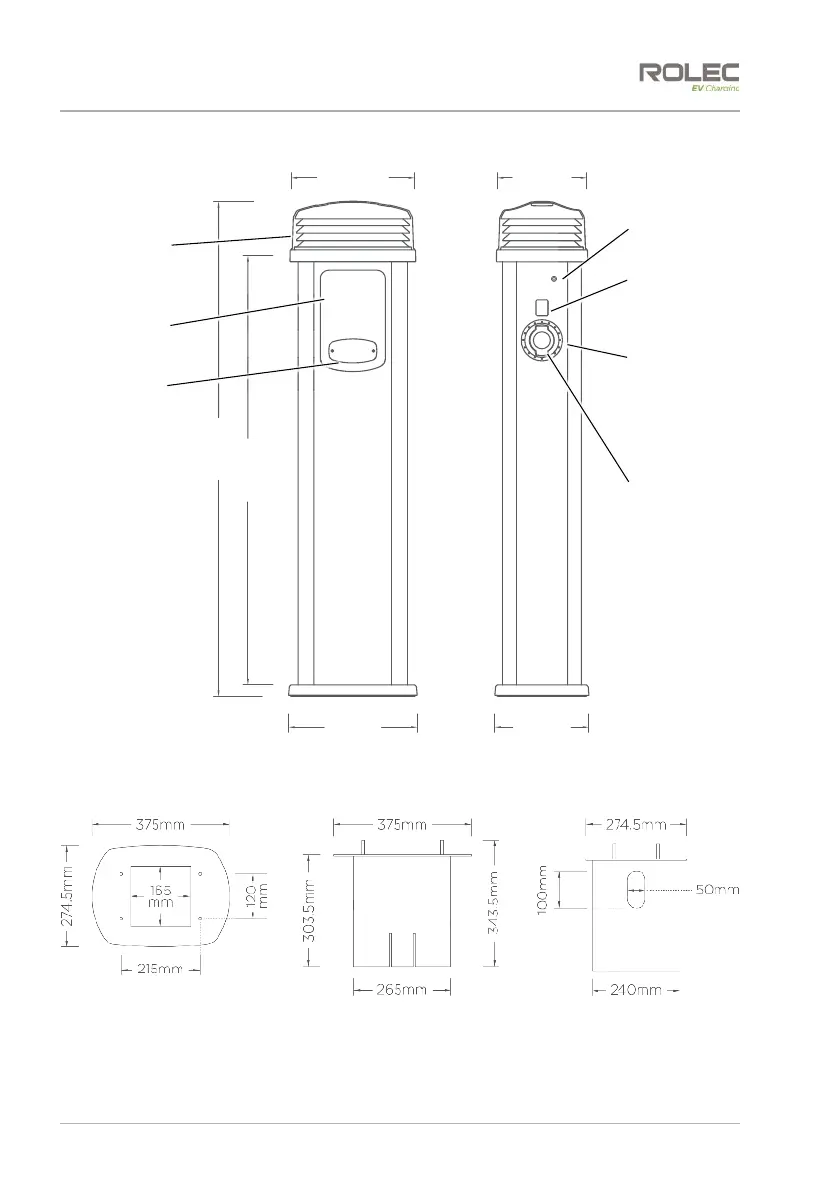

Figure 1 Pedestal General Arrangement and Dimensions
Figure 2 Optional Ground Mounting Base
3 60mm 2 60m m
12 5 0m m
1440mm
375mm 275mm
LED
Illumination
Charging
Socket(s)
2 each side
on 4-Way
ChargePoints
LED ‘Halo’
Status
Indicator
User
Instructions
Light Sensor
RFID Sensor
1 each side
on 4-Way
ChargePoints
QR Code
Socket ID
Label
