EVQM-V01-R6 Installation and Operation Manual Quantum Intelligent EV Charging Pedestal
December 2023 Page 48 of 52
Maintenance
Replace the LED Bulb
The LED bulb in the lighting head can be easily replaced.
IMPORTANT: Only install a bulb of the same specification.
Other types of bulb may damage the pedestal.
x Bulb Type: GX53 LED
x Power: 9W / 230 - 240 Volts
x Colour Temperature: 4000K
WARNING: Electrical Power
Turn OFF electrical power to the pedestal before starting work.
CAUTION: Equipment Damage
Do NOT use power tools to remove/install fixings.
Power tools can damage the fixings, making them difficult to remove.
Use hand tools ONLY and do not overtighten fasteners.

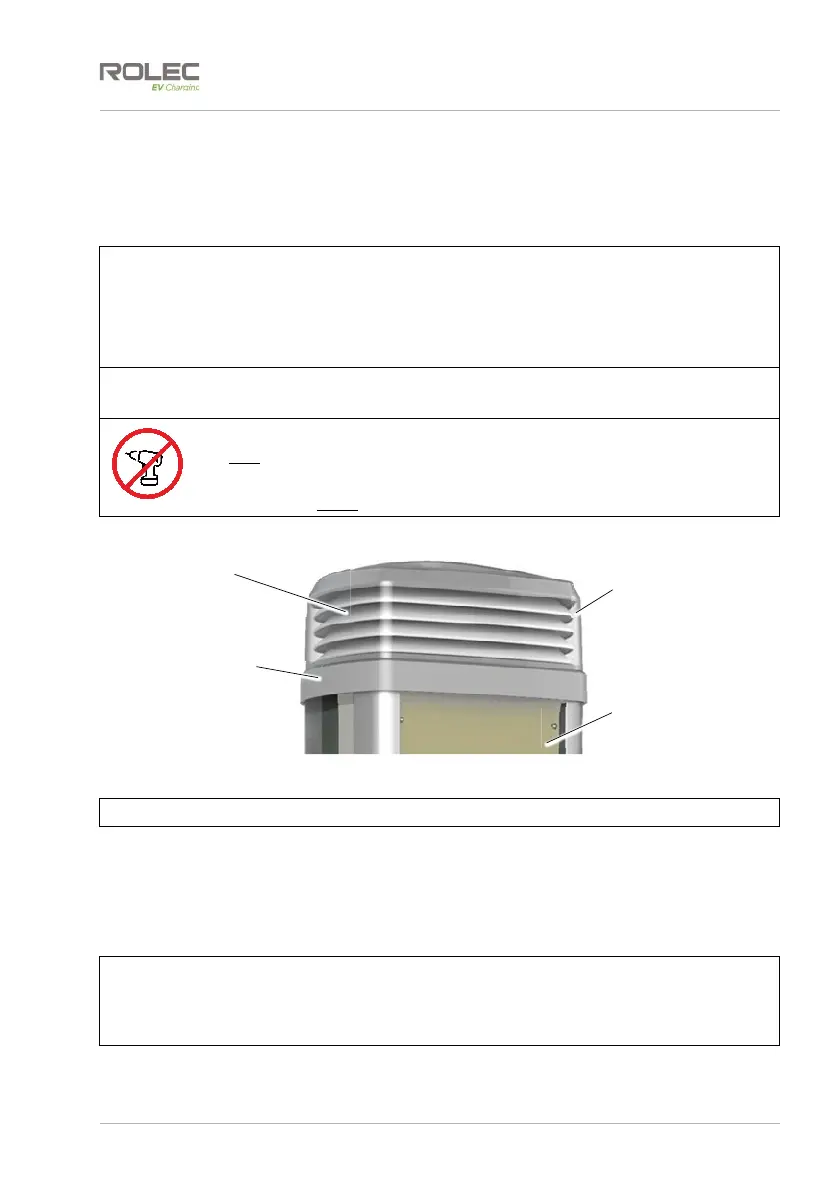

Figure 19 Typical Quantum Lighting Head
NOTE: GX53 bulbs do not have a polarity.
1. Make sure electrical power to the chargepoint is OFF.
2. Remove and retain the fixings that secure the front fascia panel to the pedestal
chassis.
3. Carefully ease the panel away from the unit to gain access to the interior and, if
installed, an internal protective panel.
CAUTION: Equipment Damage
Fascia panels may be connected to the main assembly by electrical cables. Take care
not to damage, strain, or disconnect the cables. Make sure all connections are secure
before refitting the panel(s).
Clear Dome
Dome Base
Diffuser
Louvres
Fascia Panel
To Next Page
