Rosemount 3095FB - Setup > LCD Display…

Reference Manual
00809-0100-4738, Rev DA
May 2006
4-14
Rosemount 3095FB

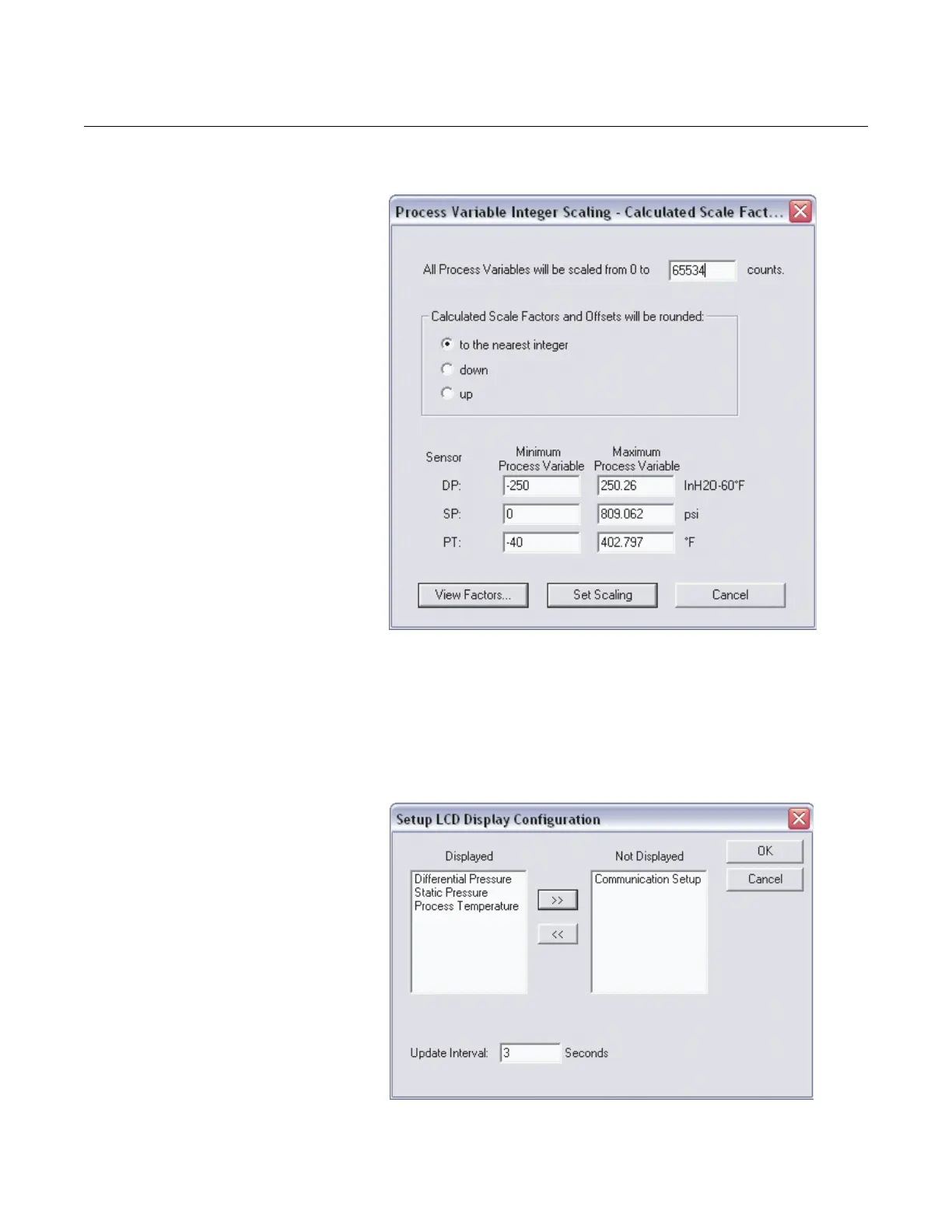

Figure 4-12. Integer Scaling - Calculated Scale Factor and Offset Screen
Setup > LCD Display…
This screen allows for the selection of what process variables are shown on
the LCD display. The Update Interval determines the rate at which the LCD
display updates the readings.
Figure 4-13. LCD Display Screen
