Rosemount 3095FB - Page 23

Reference Manual
00809-0100-4738, Rev DA
May 2006
Rosemount 3095FB
2-15

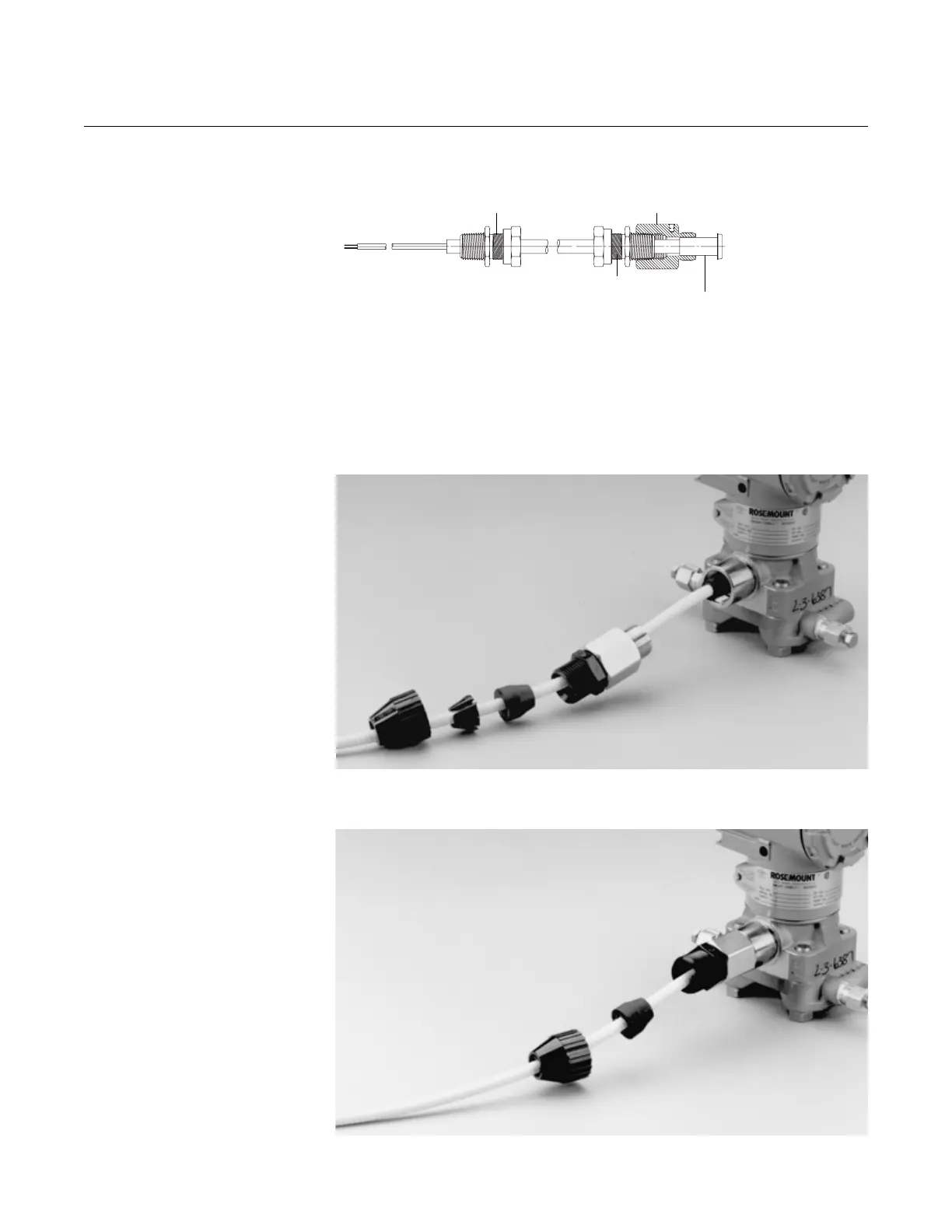

Figure 2-8. CENELEC Flameproof RTD Cable
1. Fully engage the black cable connector to the 3095 RTD connector
(figure 2-9).
2. Tighten the cable adapter and cable gland until metal contacts metal
(figure 2-10).
Figure 2-9. Engaging the Black Cable Connector
FIGURE 2-10. Tightening the Cable Adapter
Black Cable Connector
Cable Adapter
Cable Gland
RTD Cable Gland CM20
