Rosemount 3150 Series
Reference Manual
00809-0100-4835 Rev BD
July 2016
2-14

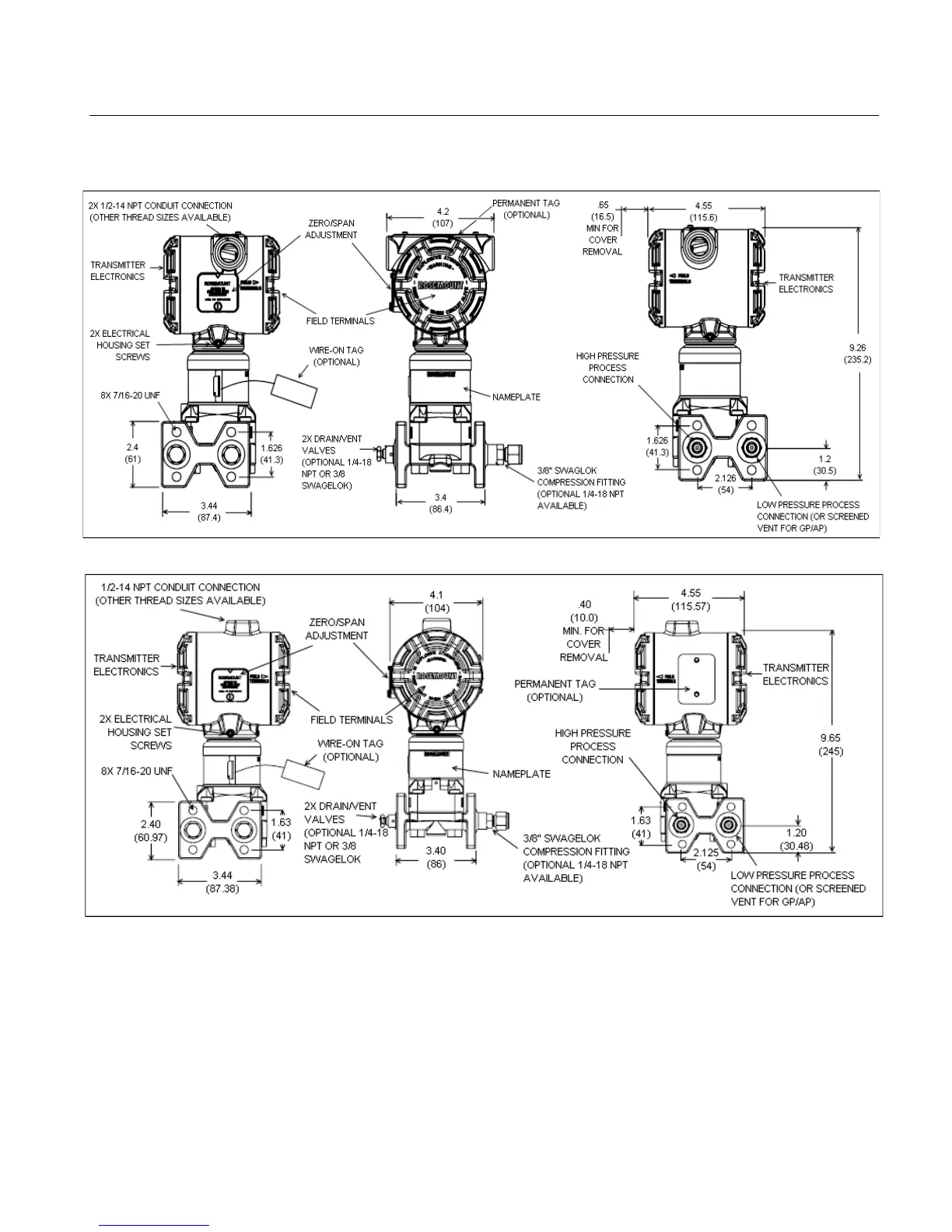

Figure 2-6 – Transmitter Dimensional
Drawings
3152, 3153 Traditional Flange
3154 Traditional Flange
NOTE: All dimensions are nominal in inches (millimeters)
NOTE: All dimensions are nominal in inches (millimeters)
