00809-0100-4835 Rev BD
2-13

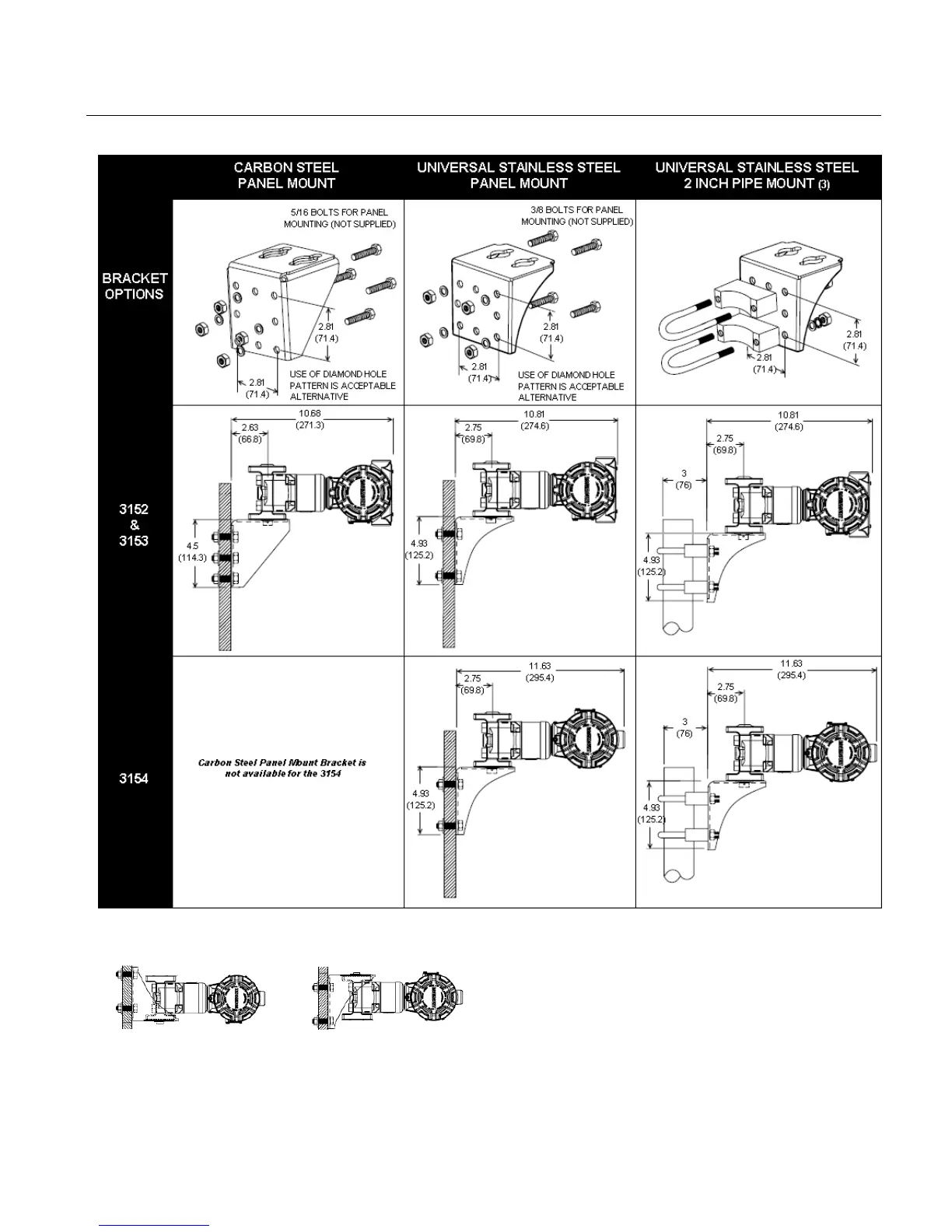

Figure 2-5 – Typical Transmitter Mounting Bracket Configuration, Traditional Flange
(1) (2)
(1) Transmitter and bracket orientation with respect to gravity will not impact qualification.
(2) Transmitters can alternatively be mounted inside bracket (as shown below) or with process connection positioned adjacent to bracket
(not shown).
(3) A pipe-mount kit with three (3) U-bolts (not shown) is also available. The use of a third U-bolt is necessary to meet KTA seismic
requirements in installations where the KTA Airplane Crash (APC) value of 8g is applicable,. Please consult the applicable RNII Product
Data Sheet (PDS) for ordering information.
NOTE: All dimensions are nominal in
inches (millimeters)
