2. Verify connector plug o-ring is in place as shown in Figure 5-7.
If connector plug o-ring is missing, please contact Rosemount
Nuclear Instruments, Inc. for assistance.
3. Apply a small amount of Molykote
®
55 silicone o-ring grease or
your plant-approved equivalent to exposed surface of the
connector plug o-ring. For reference, the transmitter was
qualified using Molykote
®
55 silicone o-ring grease (RNII P/Ns
03154-5002-0001 or 03154-5002-0002).

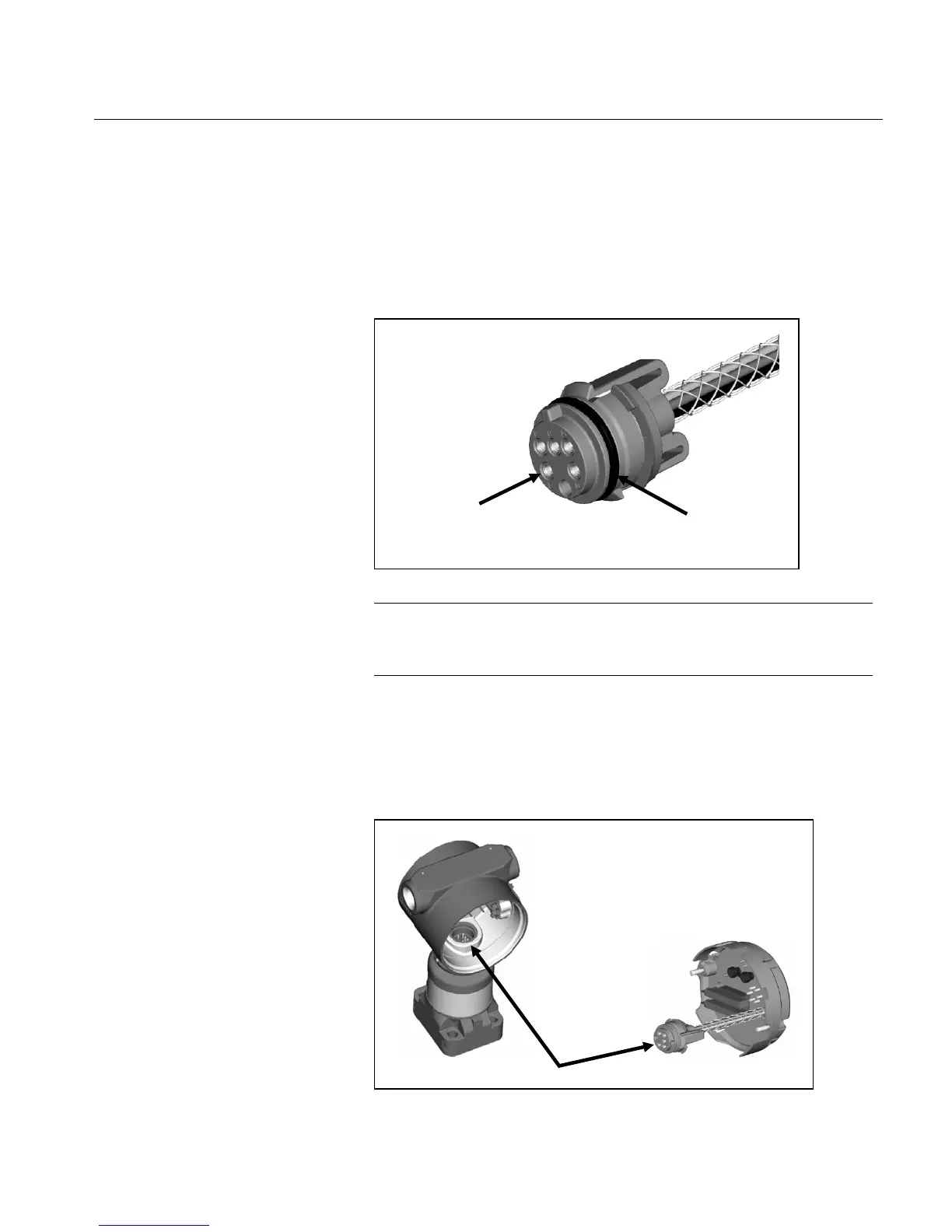

Figure 5-7 – Connector Plug Detail
NOTE
Use caution when applying silicone o-ring grease to the exposed
surface of the connector plug o-ring to avoid getting lubricant on the
receptacles at the end of the connector plug.
4. Push the connector plug down over the pins on the top of the
sensor module (8) (see Figure 5-8). Ensure that the two clips on
the connector plug are fully engaged under the lip of the sensor
module (see Figure 5-9).
Figure 5-8 – Mating of Connector
Plug to Sensor Module Pins
Connector
plug o-ring
Receptacles
