Assembling conditions
112 / 127
Installation advice
• In the absence of overheat protection (option), a by-pass line dia. 5
mm (0.2 in) must be provided to the water tank. This serves to prevent
the portable pump from overheating when the pressure outlets are
closed.
• Nothing may be kept or stored in the area of the exhaust system due
to heat radiation
Sufficient air circulation with fresh air must be provided to prevent
heat accumulation on the exhaust side.
If necessary, an additional fan must be installed to ensure air ex-
change.
• Maintain sufficient distance to the various lines and hoses of the vehi-
cle and, if necessary, protect them with covers.

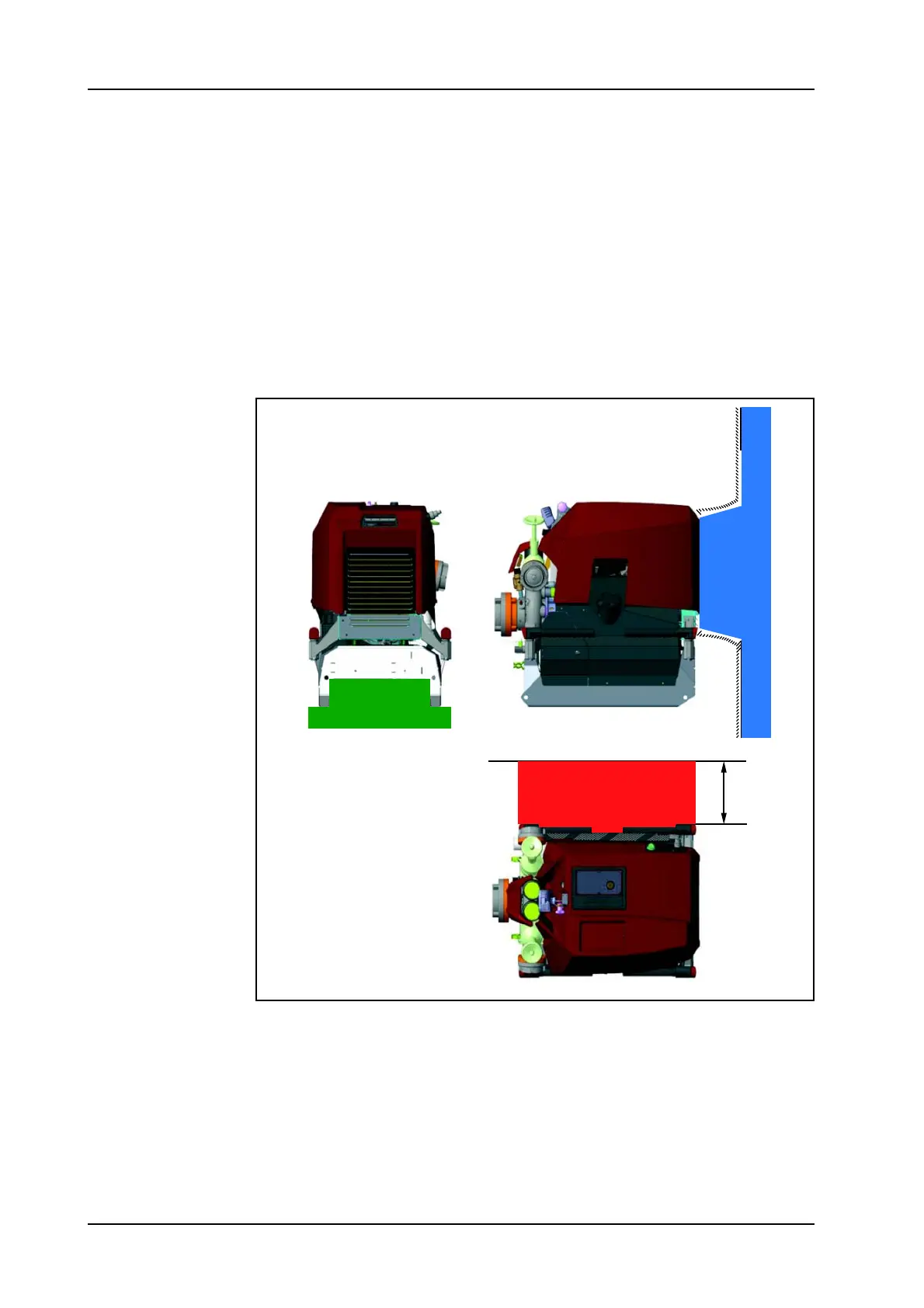

Air circulation on the portable pump
1 Supply air opening
2 Fresh air supply
3 Exhaust air temperature (approx. 350 - 400 °C)
