Open/close engine cover
8.4 Open/close engine cover
CAUTION!
Risk of crushing!
Danger of crushing and entrapment with the movable engine cover.
Only touch the engine cover in a suitable place.
Use protective equipment.
Do not reach into the danger area.
Move the cover carefully and with caution.
Danger of burning!
Do not grip onto switched-on or recently switched-off search lights.
The engine cover can be opened for inspection, maintenance and re-
pair work.
The engine cover must be closed for operation.
8.4.1 Open the engine cover
During operation, opening the engine cover is prohibited.
► Ensure sufficient space behind and above the portable pump.
► Place the working lightvertically.
► Pull and release the engine cover lock assembly.
► Lift and tilt the engine cover with the handle.
The engine cover is open.

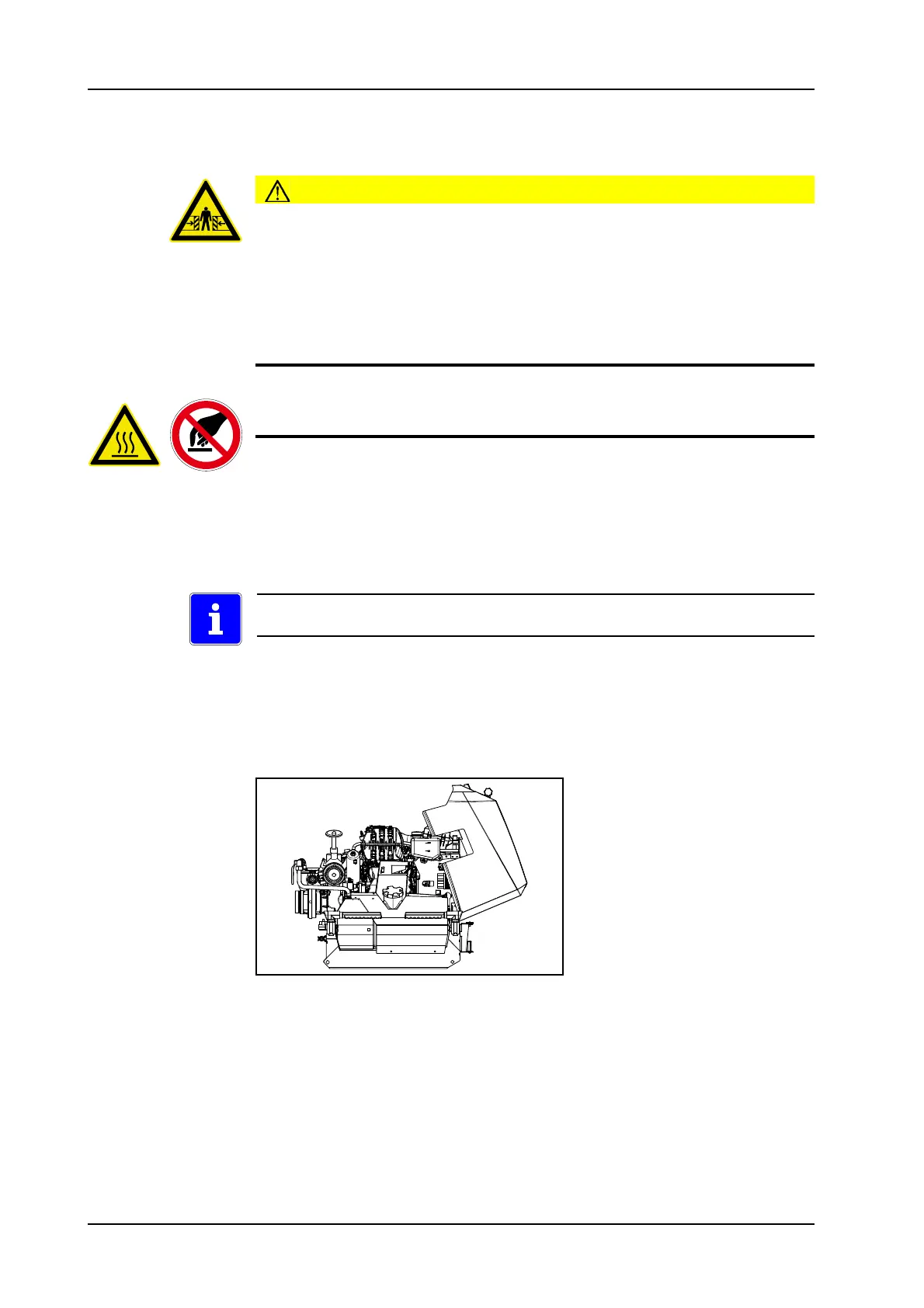

Engine cover open
8.4.2 Close engine cover
► Hold and lower the engine cover with the handle.
► Make sure that it is properly locked.
The engine cover is closed.
