Rosenbauer FOX 4 - Connections

Technical description
34 / 127
Connections

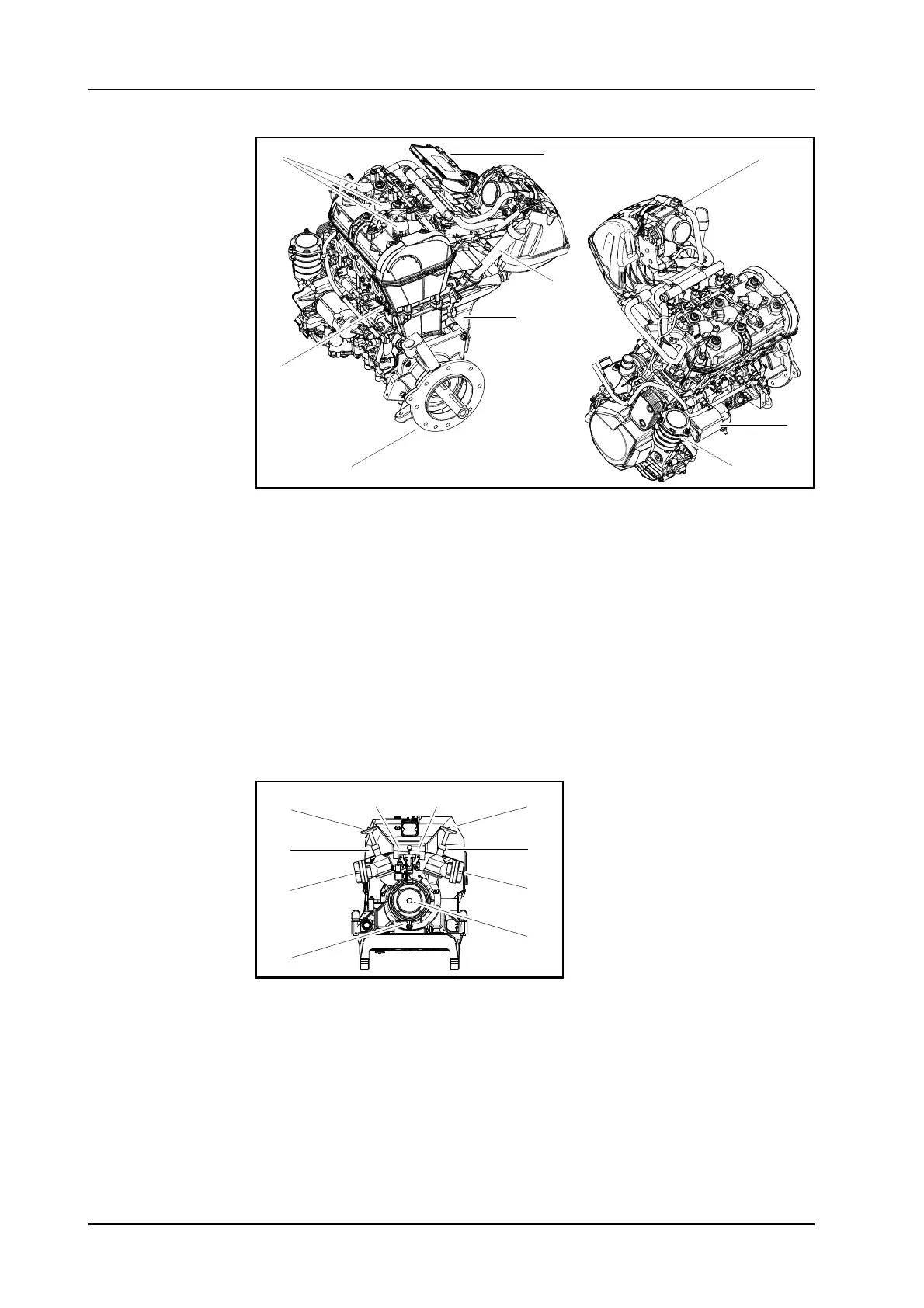

Propulsion engine components
1 Water pump flange
2 Propulsion engine type plate
3 Ignition coil
4 Engine control device
5 Engine oil dipstick
6 Engine oil tank
7 Pressure and temperature sensor
8 Electrical starting device
9 Oil filter housing
6.2 Connections
Connections for the water supply
P28 Water pressure gauge
P30 Water vacuum gauge
J10 Screw down valve for normal pressure outlet
D80 Spindle limitation for screw down valve (pressure relief device)
J11 Normal pressure outlet
J15 Water external drafting connector
J7 Pump drainage valve
7
2
9
1
333
4
5
6
8
J11
J11
J10
J10
D80
D80
J15
J7
P30
P28
