6 Technical description
6.1 Components

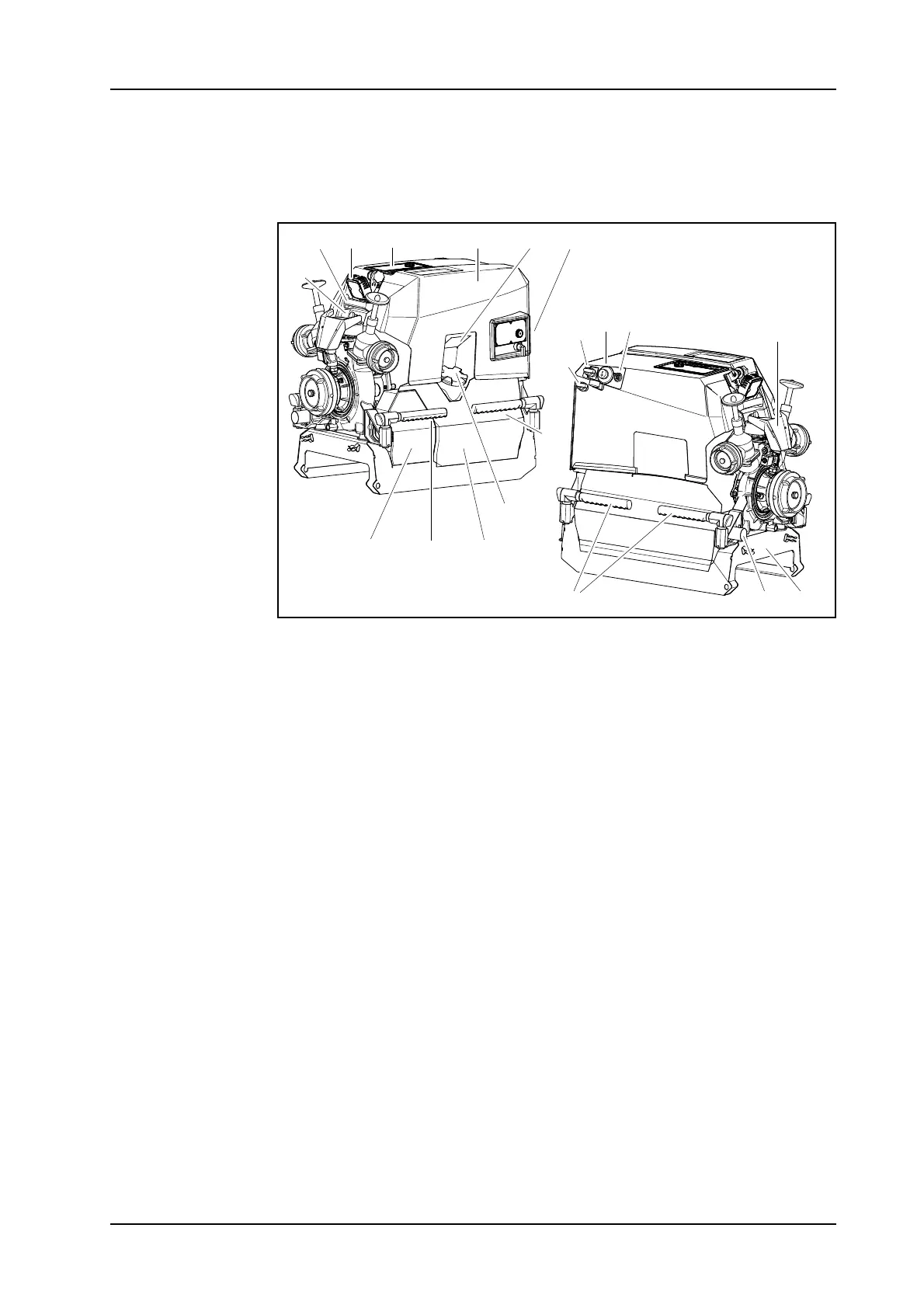

Portable pump components
1 Engine cover lock assembly
2 Engine cover handle
3 Working light
4 LCS control panel pump operator's panel
5 Engine cover
6 Fuel tank cap lighting
7 Side LCS control panel pump operator's panel (optional)
8 Rosenbauer LED lighting system socket
9 FireCan socket
10 Charging socket
11 USB charging socket
12 Front cover
13 Carrying frame lighting
14 Exhaust gas hose connection
15 Carrying handle of the carrying frame
16 Fuel tank cap
17 Fuel tank
18 Battery box
17
18
16
6
3
2
4
5
8
9
10
11
1515
14
13
15
15
12
1
7
