Operation

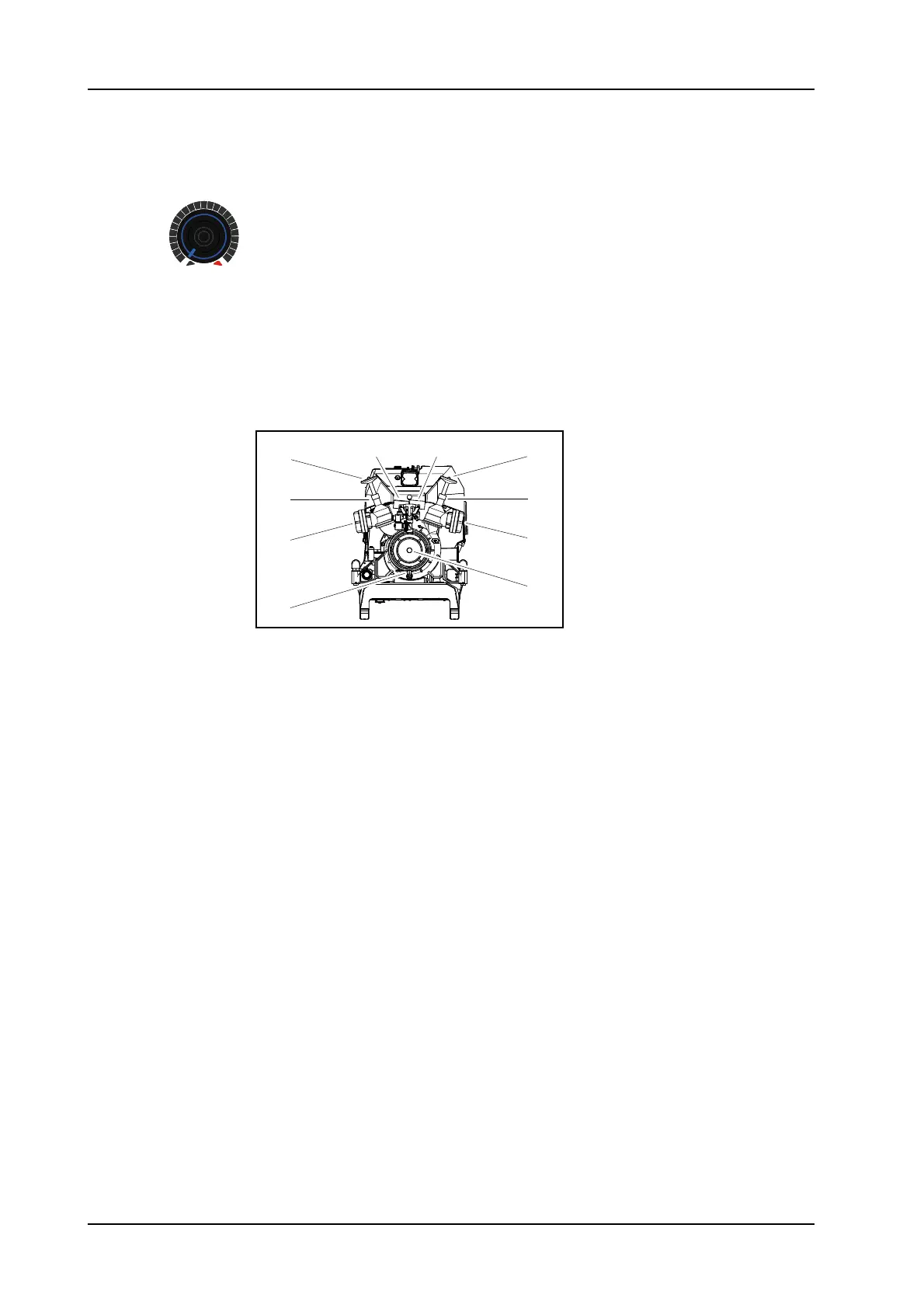

7.6.3 Adjust water pump pressure
The pump pressure will be varied with the governor.
► Turn Governor function switch clockwise, to increase the pump pres-
sure.
► Turn Governor function switch counter clockwise, to decrease the
pump pressure.
 LEDs are placed all round the governor, which illuminate or go out in
succession if the pump pressure is changed.
 The governor illuminates white and the adjusted pump pressure is built
up.
7.6.4 Connections
Connections for the water supply
P28 Water pressure gauge
P30 Water vacuum gauge
J10 Screw down valve for normal pressure outlet
D80 Spindle limitation for screw down valve (pressure relief device)
J11 Normal pressure outlet
J15 Water external drafting connector
J7 Pump drainage valve
J11
J11
J10
J10
D80
D80
J15
J7
P30
P28
