Transport
7.2.2 Transport with the aid of wheel set (optional)
The portable pump can be equipped with a wheel set for manoeuvring and
1-person transport.
Wheel set
Assembly/disassembly of the wheel set may only be carried out by trained
specialist personnel. Take note of general dangers that could occur during
assembly/disassembly.
Mounting wheel set
Mounting axle bearing
► Use a suitable tool.
► Push carrying handles down against spring tension on cooler side.
► Knock out the two tension pins.
► Push the carrying handles down.
► Insert axle bearing and knock both tension pins back in.
The hole for the clevise pin in the axle bearing points outwards
when the carrying handle is swivelled in.
The slot of the tension pin must be offset by approx. 180°.
The axle bearing is mounted.
Mount wheels

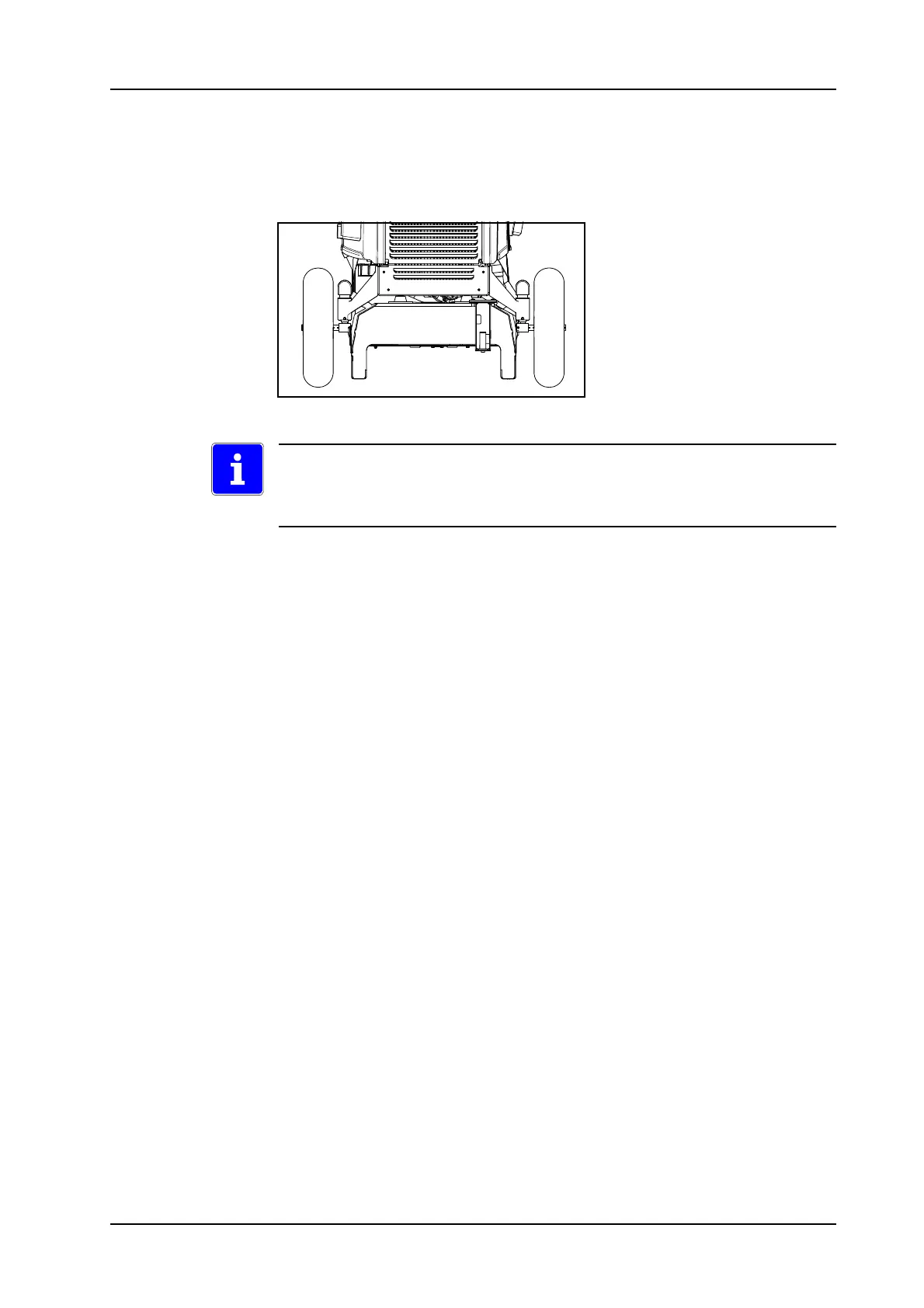

► Swivel out carrying handle on cooler side by 180°.
► Insert wheel with axle into axle bearing.
► Secure wheel with. clevise pin.
Tie clevise pin to carrying frame with cord at a suitable position.
The wheels are mounted.
The portable pump can be transported with a wheel set.
