Rosenbauer Body Components Logic Control System (RBC LCS)
5.7 Rosenbauer Body Components Logic Control System (RBC
LCS)
5.7.1 RBC LCS Compact
RBC LCS Compact

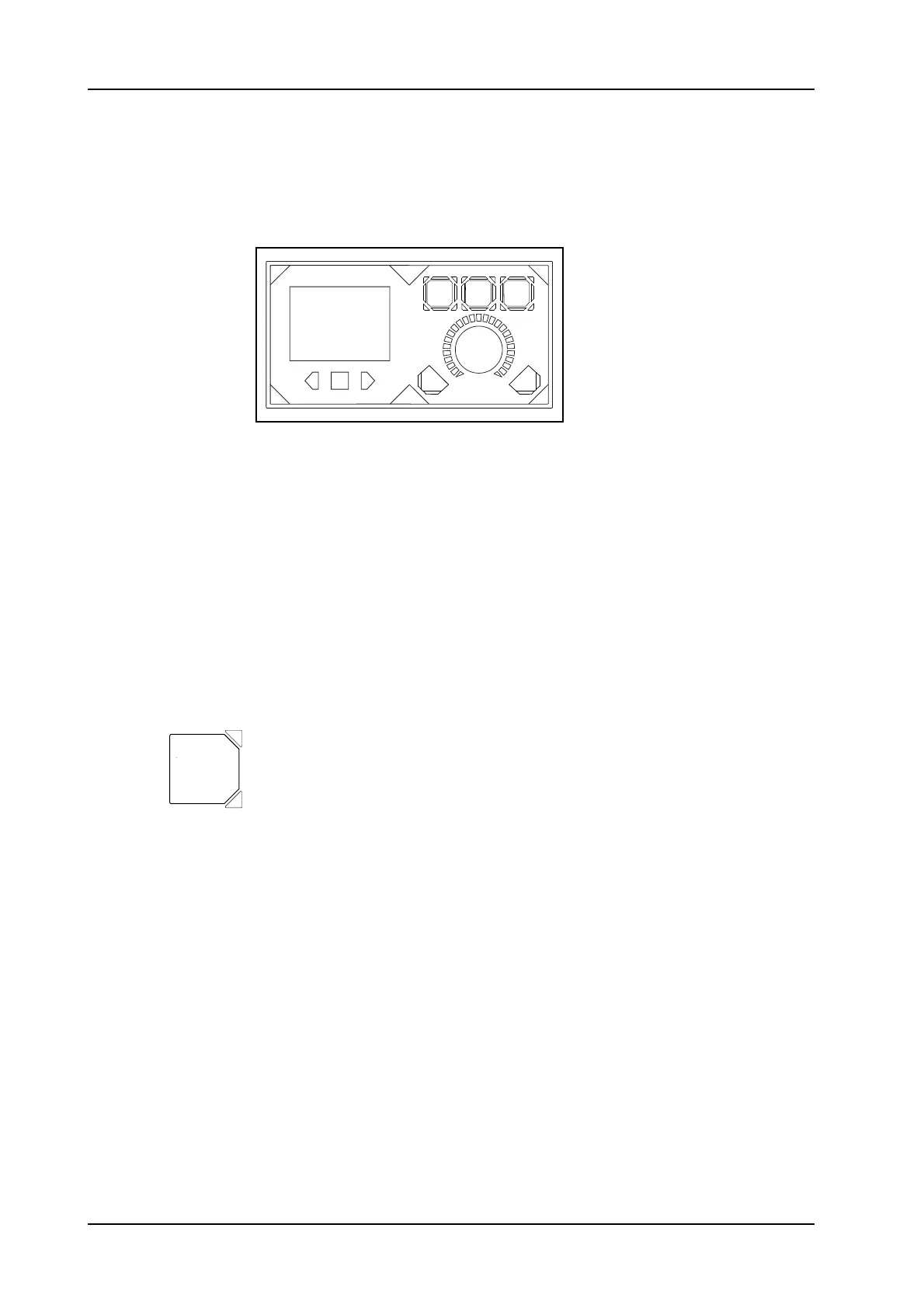

The RBC LCS Compact consists of:
• RBC LCS display 3.5“ (left)
• RBC LCS Digipot (right)
The display shows the operating personnel the main status information.
The display is equipped with function switches. The left and right function
switches scroll through the screen pages. The middle function switch con-
firms error messages.
The RBC LCS Digipot is equipped with function switches and a governor.
5.7.2 Operating elements
Function switch
The function switch controls a programmed function. The status LED on the
edge of the function switch shows the status of the associated function.
Colour definition of the Status LED:
• Red: an error is present. Function cannot be executed.
• Orange: function is preselected.
• Flashing green: function has been requested.
• Green: function is active.
The operator is advised of its function by targeted labelling of the function
switch (colour and icon).
Refer to corresponding chapter in this operation manual.
