Rosenbauer FOX 4 - Around-The-Pump Foam Proportioning System

Operation
73 / 127
Options
Portable pump with lighting system frame holder
When using the lighting system frame holder the engine cover cannot be
opened!
Read/observe the supplementary supplier documentation.
7.8.6 Around-the-pump foam proportioning system

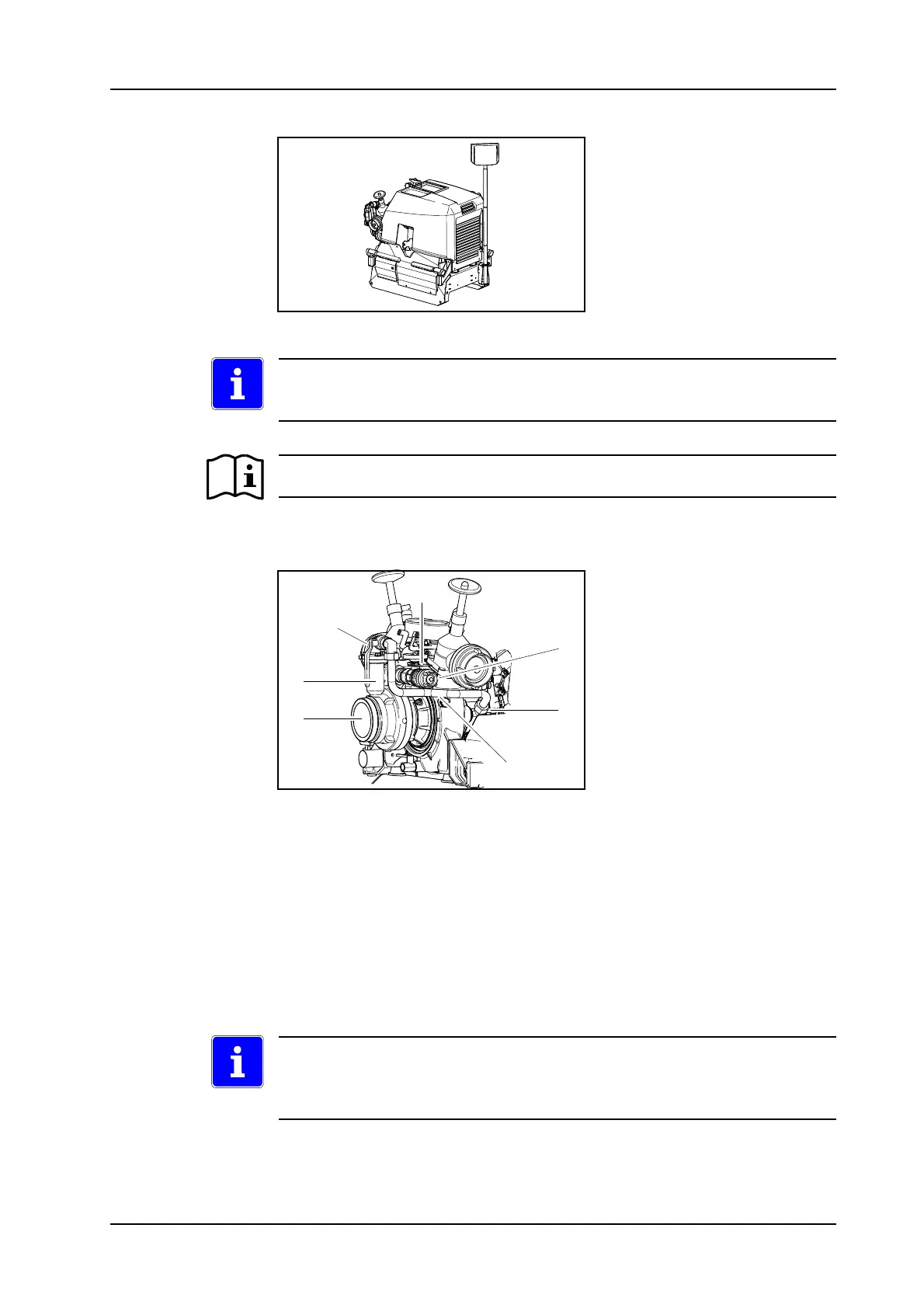

Integrated around-the-pump foam proportioning system components
1 Foam induction valve
2 Regulating ball valve
3 Foam compound external drafting connection
4 Pump housing connection
5 Motive water line
6 Replacement part
7 Mixing chamber
Mount integrated around-the-pump foam proportioning system
Mounting of the integrated around-the-pump foam proportioning system
may only be carried out by trained specialist personnel. Take note of gen-
eral dangers that could occur during assembly.
