Installation
AC-A4x Installation and Programming Manual 11
3. Installation
3.1 Mounting
Before starting, select the location to mount the AC-A4x controller.
This location should be at shoulder height and on the same side as
the door handle.
The controller is designed to be easily mounted onto a US Gang Box.
1. Remove the Bezel Screw from the unit (see Figure 1).

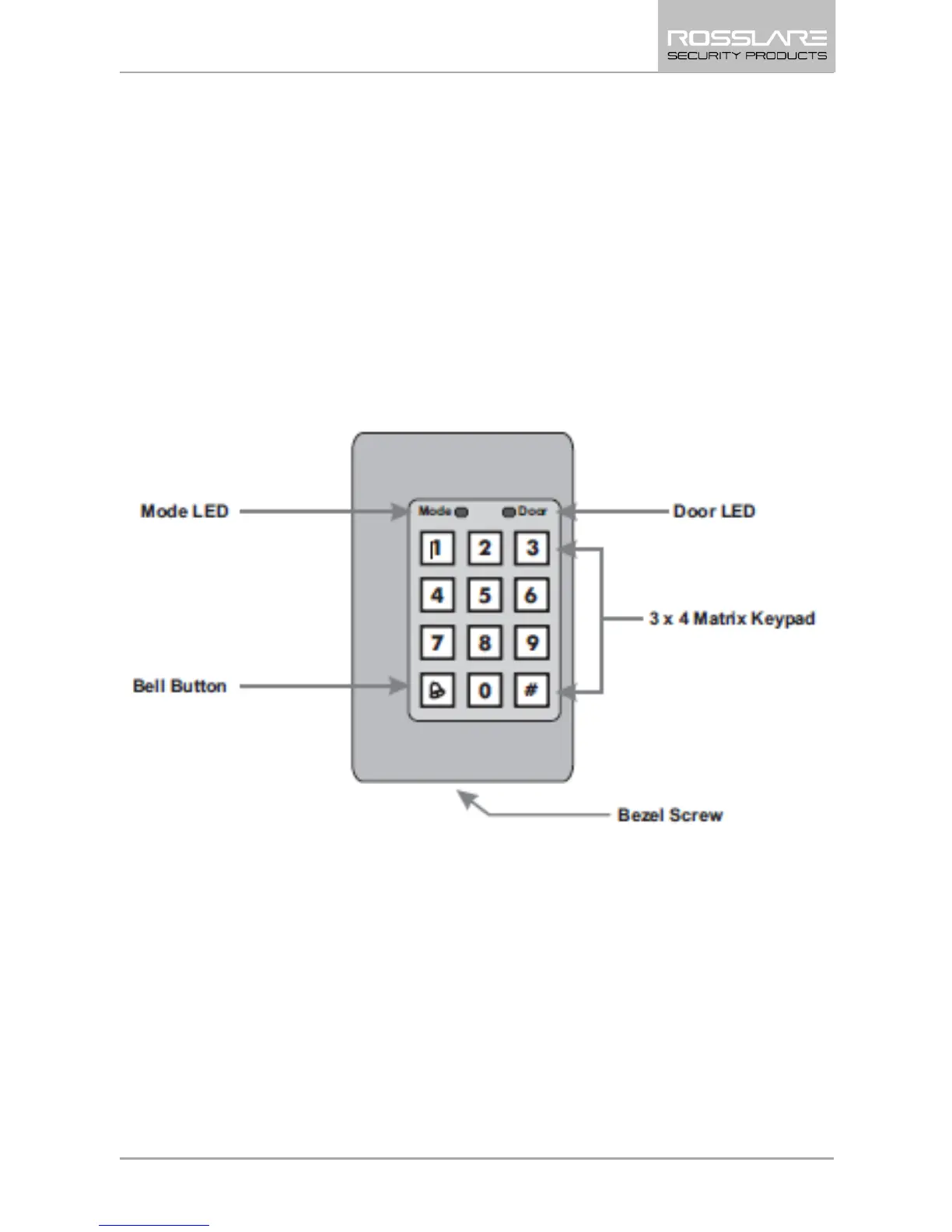

Figure 1: AC-A4x Controller – Labeled Diagram
2. Screw the controller onto a US Gang Box through the two
mounting holes provided (see Figure 2).
