Installation
AC-A4x Installation and Programming Manual 13
3.2 Wiring

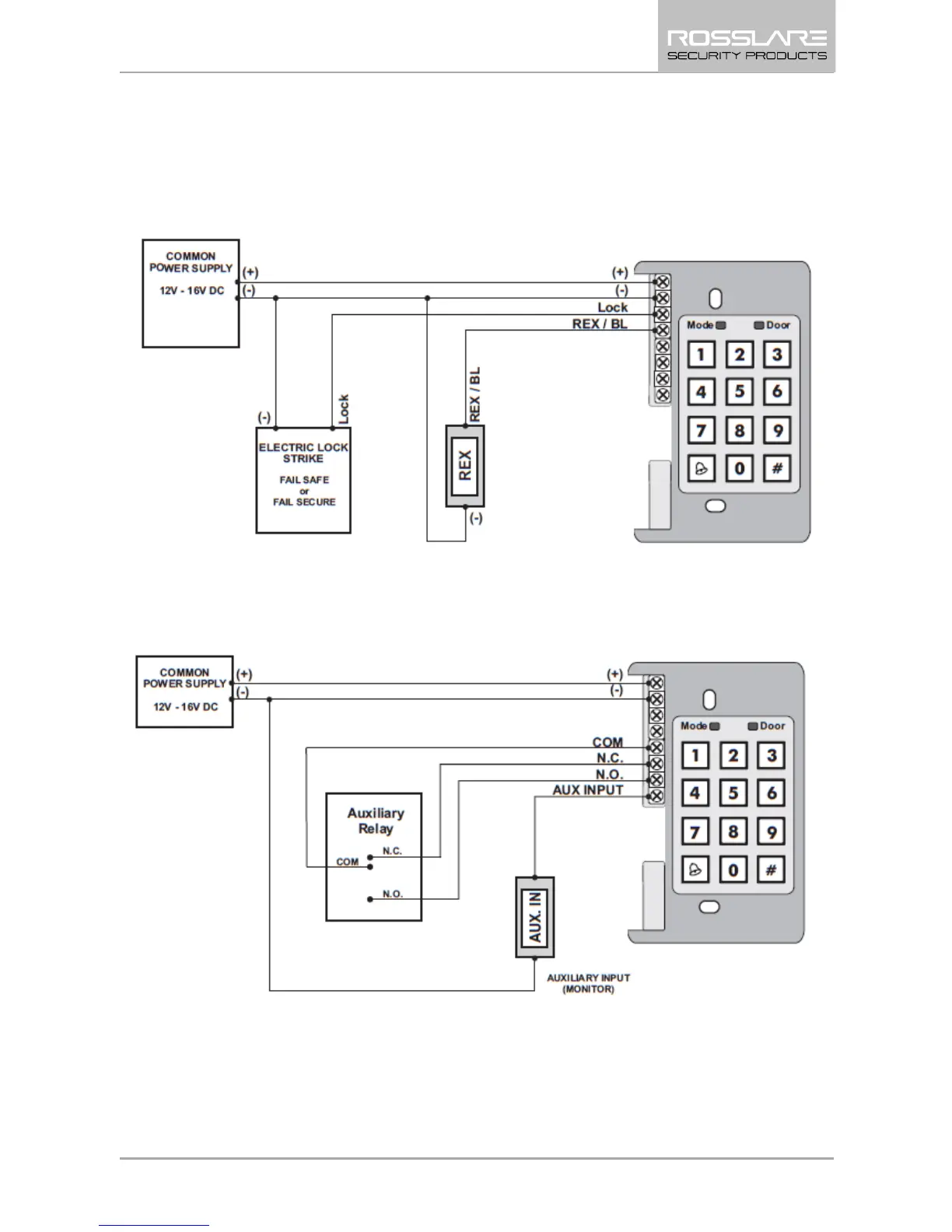

Three typical wiring diagrams are shown in Figure 3 through Figure 5.
Figure 3: Wiring the Lock Strike Relay and REX
Figure 4: Wiring the Auxiliary Input and Output
AC-A4x
AC-A4x
